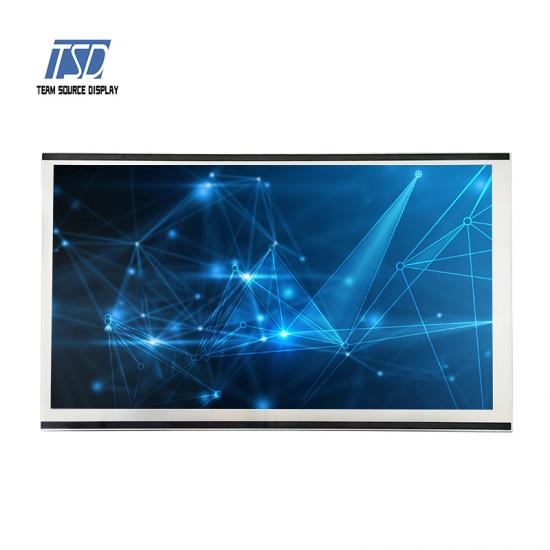

TSD 8.4 inch ips tft lcd module 1024x768 with LVDS interface

  • Model Name: TST084WSTH-B01
  • LCD Type: 8.4 inch TFT LCD display
  • Resolution: 1024x768
  • Viewing angle: All o'clock
  • Brightness: 600 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +90℃

Description:



TST084WSTH-B01 is 8.4 inch tft lcd module with LVDS interface. It's landscape screen, normally black, transmissive TFT LCD module. Outline dimension of LCM is 199.5x149x9.7mm, active area is 170.496x127mm. Display contrast is 1000:1, luminace is 60 cd/m2 typically. Source IC is NT51625TTH and Gate IC is NT52602TTH. Operating temperature is -30 to +80, storage temperature is -40 to +90℃.

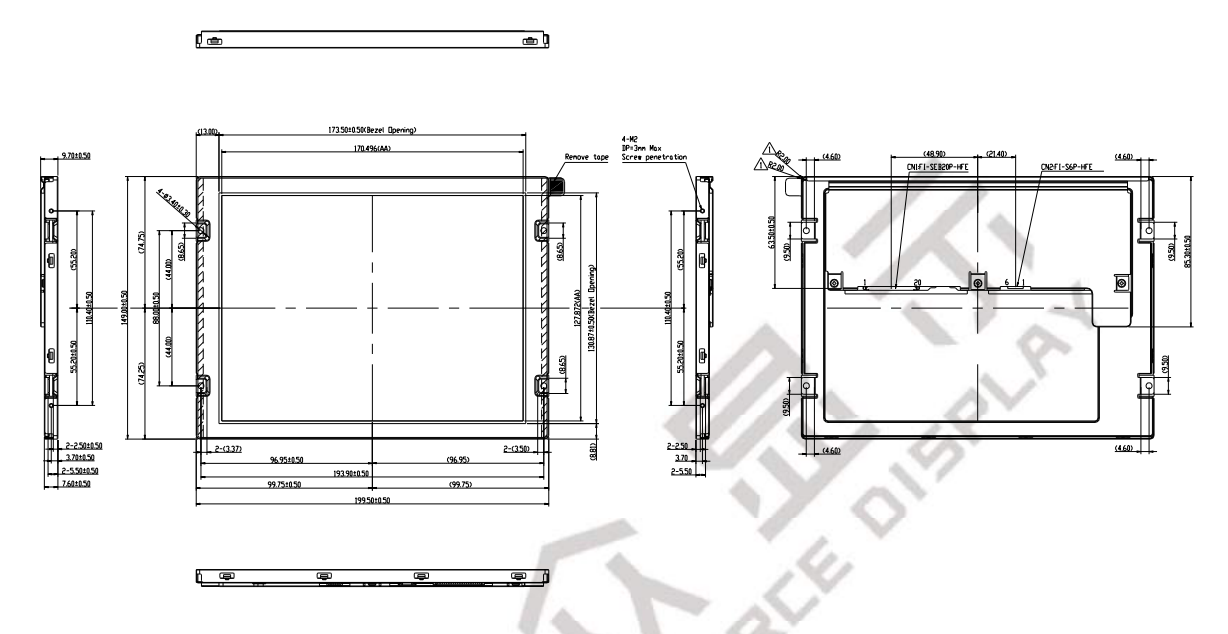

Drawing:



tft lcd module


Specifications:



General Specification
Part No.  TST084WSTH-B01
Outline Dimension(mm)  199.5(H)X149(V)X9.7(T) mm
Active Area(mm) 170.496(H)X127(V) mm
Resolution(dots) 1024x768
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1280(H)xRGBx480(V)
Touch panel  without
Brightness 600 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 8.4 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 VCC 3.3V power supply
2 VCC 3.3V power supply
3 GND Ground
4 GND Ground
5 Link0- Negative LVDS differential data input

6

Link0+ Positive LVDS differential data input
7 GND Ground
8 Link1- Negative LVDS differential data input
9 Link1+ Positive LVDS differential data input
10 GND Ground
11 Link2- Negative LVDS differential data input
12 Link2+ Positive LVDS differential data input
13 GND Ground
14 CLKIN- Negative LVDS differential data input
15 CLKIN+ Positive LVDS differential data input
16 GND Ground
17 Link3- Negative LVDS differential data input
18 Link3+ Positive LVDS differential data input
19 MODE 6-bit / 8-bit input select for LVDS interface. High:8bit. Low or Open:6bit.
20 SC Reverse Scan control,Low or Open: Normal scan,High : Reverse scan




Features:



• Display Resolution: 1024 x RGB x 768

• Wide viewing angle (U/D/L/R): Free viewing direction

• Display up to 16.7M colours

LVDS interface (without T-CON)

• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.

• White LED backlight

• “RoHS” compliance.



  • 8 inch tft lcd
