Description:

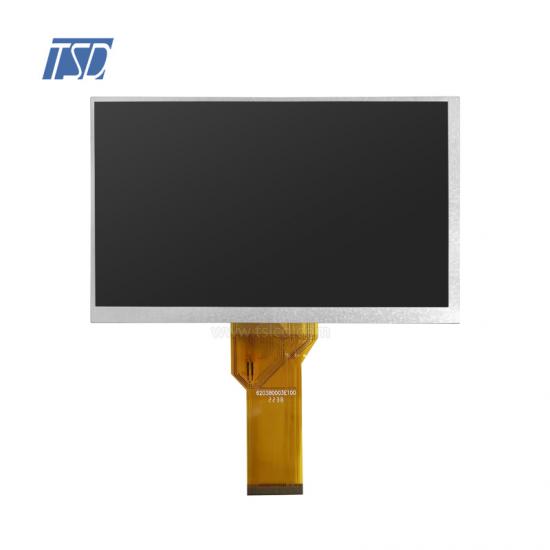

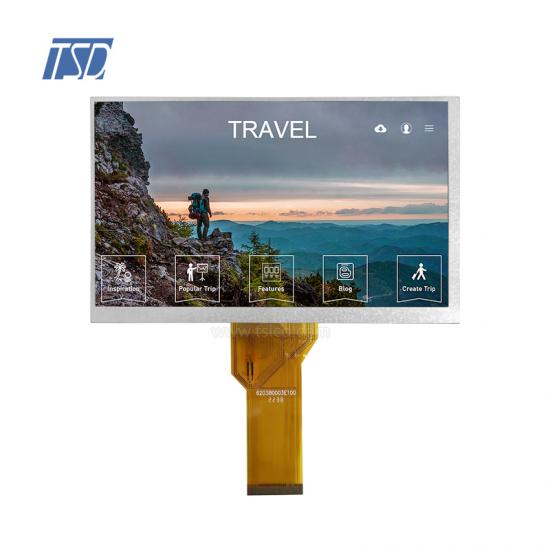

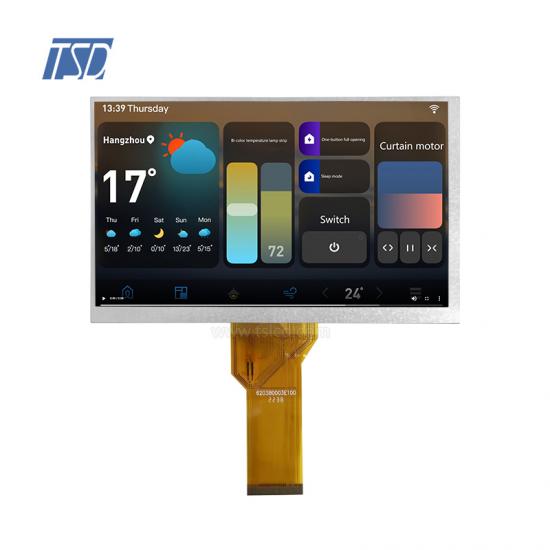

Team Source Display model TST070TN94-K01 is the standard 7'' color TFT LCD, normally white with transmissive type TN panel,
wvga 800x480 resolution, RGB-24bits 50pin interface, 16.7M color depth, Anti-glare surface treatment.
with RTP& CTP available, 350 nits brightness.

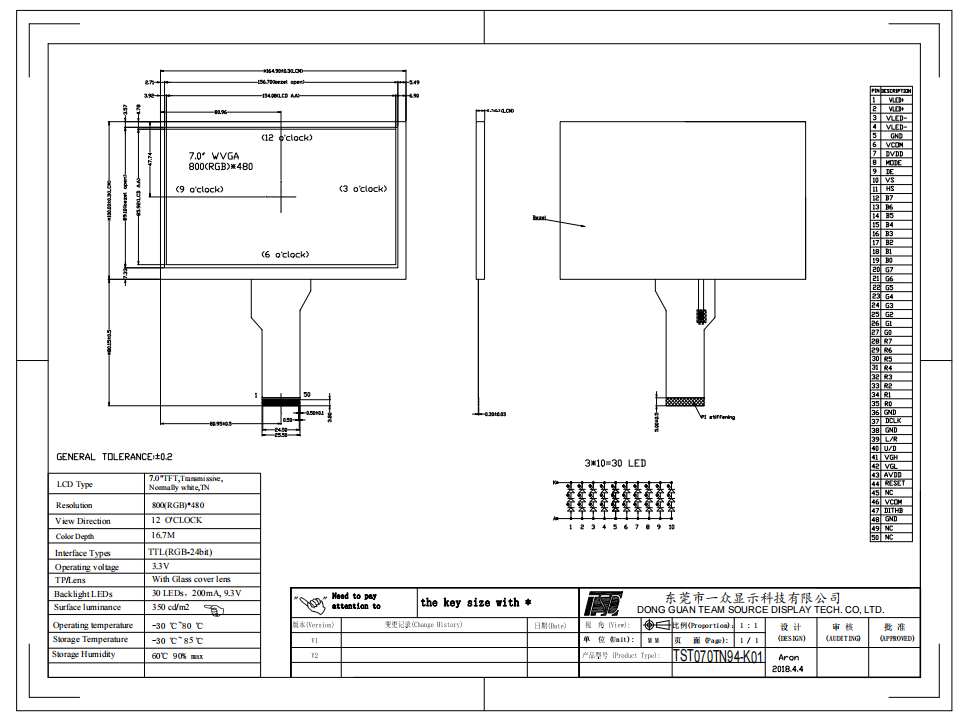

Drawing:
Specifications:
| General Specification | ||
| Display mode |
7'' TFT, Transmissive, Normal white,TN, |
|
| Part No. | TST070TN94-K01 | |
| Outline Dimension(mm) |
164.90(W)x100(H)x5.70(D) |
|
| Active Area(mm) | 154.08(W) x 85.92(H) | |
| Resolution(dots) | 800x (RGB) × 480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Operating Voltage |
3.3V | |
| Touch panel | without | |
| Pixel arrangement | RGB-stripe | |
| View direction | 12H | |
| Interface | RGB 24bits |
|
| Brightness | 350nits | |
| Backlight | 30LEDs,200mA, 9.3V | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Module lifetime(Hours) | 30,000-50000 | |
| LCM interface definition | ||
| Pin No. | Symbol | Description |
| 1 | LED+ | Power for LED backlight (Anode) |
| 2 | LED+ | Power for LED backlight (Anode) |
| 3 | LED- | Power for LED backlight (Cathode) |
| 4 | LED- | Power for LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | Vcom | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DESYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS |
Horizontal Sync Input |
| 12 | B7 | Blue data(MSB) |
| 13 | B6 | Blue data |
| 14 | B5 |
Blue data |
| 15 | B4 | Blue data |
| 16 | B3 | Blue data |
| 17 | B2 | Blue data |
| 18 | B1 | Blue data |
| 19 | B0 | Blue data(LSB) |
| 20 | G7 | Green data(MSB) |
| 21 | G6 | Green data |
| 22 | G5 | Green data |
| 23 | G4 | Green data |
| 24 | G3 | Green data |
| 25 | G2 | Green data |
| 26 | G1 | Green data |
| 27 | G0 | Green data(LSB) |
| 28 | R7 | Red data(MSB) |
| 29 | R6 | Red data |
| 30 | R5 | Red data |
| 31 | R4 | Red data |
| 32 | R3 | Red data |
| 33 | R2 | Red data |
| 34 | R1 | Red data |
| 35 | R0 | Red data(LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK |
Sample clock |
| 38 | GND | PowerGround |
| 39 | L/R |
Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET |
Global reset pin. |
| 45 | NC | No connection |
| 46 | Vcom | Common Voltage |
| 47 | DITHB |
Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Applications:
For this 7 inch TFT LCD display TST070TN94-K01 800x480 resolution, suitable for Industrials Equipment and Automotive Products, like Navigation,
GPS devices, Dashboard, Cluster, Instrument panels, and Elevator displays,
Product Features:
1. 800x480 7'' LCD with RGB 24bit 50pin.
2. Wide temperature.
3. Available with RTP&CTP.
