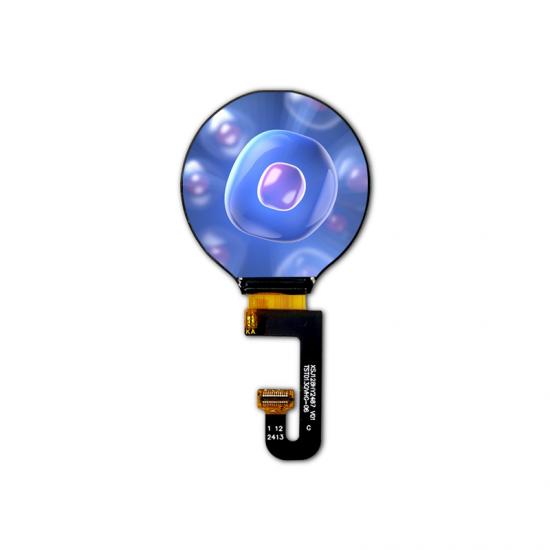

TSD IPS 1.3 inch 240x240 3 wire SPI TFT-LCD Module

  • Model Name: TST013QVHG-06B
  • LCD Type: 1.3 inch TFT LCD display
  • Resolution: 240x240
  • Viewing angle: All o'clock
  • Brightness: 300 cd/m2
  • Driver IC: GC9A01
  • Interface: 3 wire SPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃

Description:

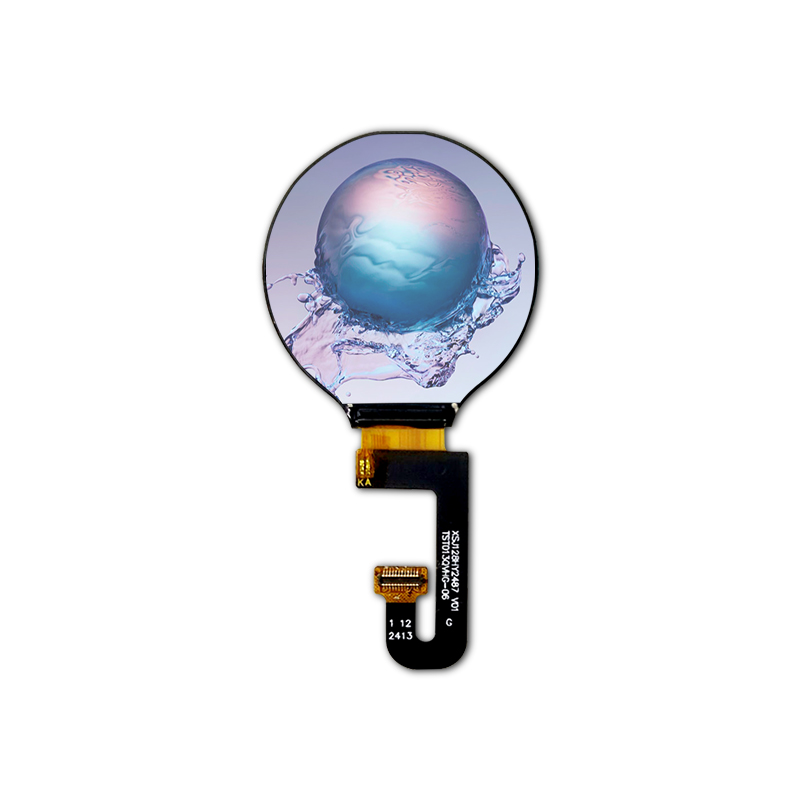

TST013QVHG-06B is a 1.3 inch circle tft lcd module in 240x240 resolution, it is 3 wire SPI interface in 24 pins, and could be customed for other pinmap. Brightness is 300 nits. It is suitable for indoor application, such as smart watch, thermostat control display, hybrid recorders, temperature measurement device etc. Backlight current is 20mA and backlight voltage is 6.2V, with 2 backlight LEDs. This 1.3 inch TFT LCD module is designed with GC9A01, viewing direction is all o'clock, color depth is 65K, white backlight and transmissive type.

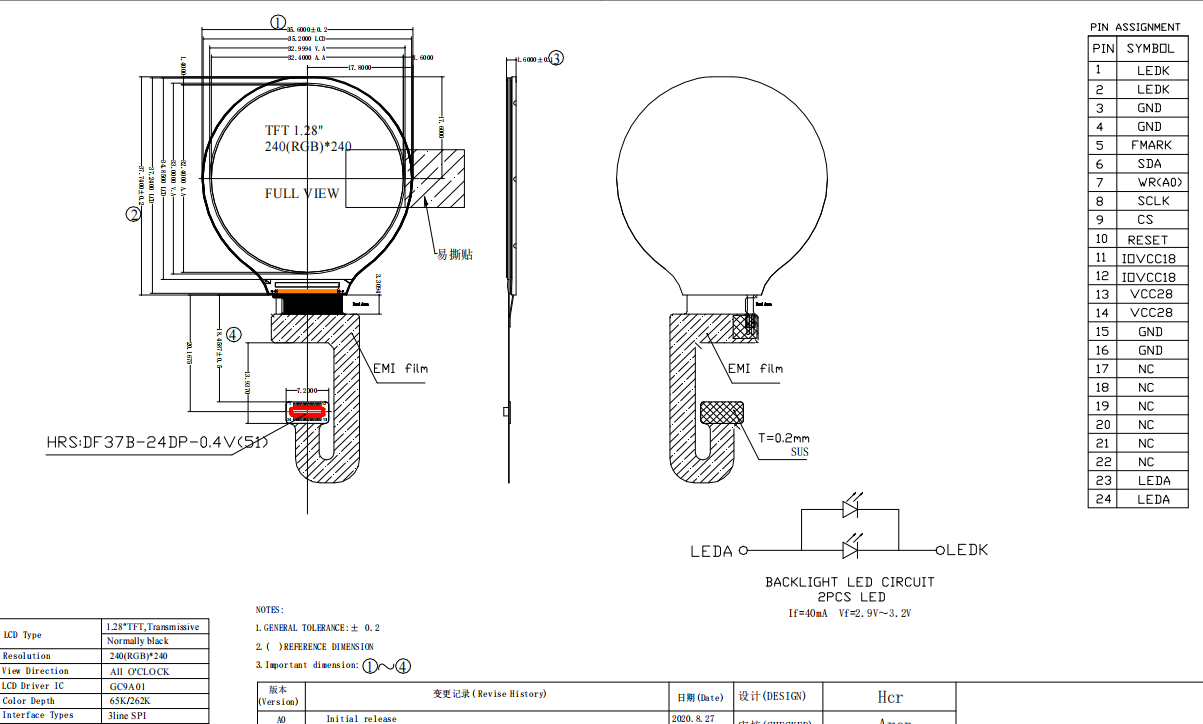

Drawing:




Specifications:



General Specification
Part No.  TST013QVHG-06B
Outline Dimension(mm)

35.6x37.7x1.6

Active Area(mm) 32.4x32.4
Resolution(dots) 240x240
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx240(V)
Touch panel  w/o CTP
Driver IC GC9A01
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDK Backlight K Cathode input pin.
3 GND System ground. (0V)
4 GND System ground. (0V)
5 FMARK Ouput a frame head pulse signal
6 SDA SPI interface clock input
7 WR(A0) Second data lane in 2 data lane serial interface, if no used, please open it
8 SCLK SPI interface clock input
9 CS Chip select
10 RESET Chip reset pin (low power)
11 IOVCC18 Power supply for digtal interface I/O inputs
12 IOVCC18 Power supply for digital interface I/O inputs
13 CS chip select.
14 RESET Chip reset pin (Low Active)
15 IOVCC18 Power supply for digital interface I/O pins
16 IOVCC18 Power supply for digital interface I/O pins
17-22 VCC28 Power supply 2.8V
23 VCC28 Power supply 2.8V
24 GND System Ground. (0V)
12 GND Ground




Applications:



This small round lcd display is suitable for thermostat control display, hybrid recorders, temperature measurement device.




Product Features:



TST013QVHG-06B is a square TFT display module, This mode 1.3 inch diagonally resolution in 240 horizontal by 240 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 65K colors. Regarding backlight, it is 550 nit and 2 LEDs, current is 20mA  and voltage 6.2V. Contrast ratio is 800:1.
