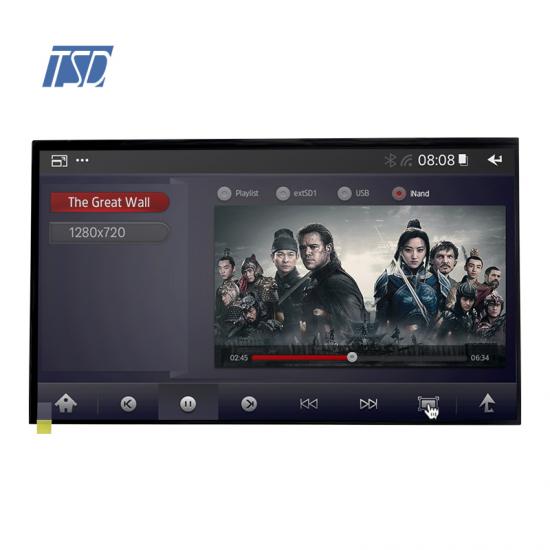

Hot selling 15 inch big size tft lcd display 1024*768 with LVDS interface high contrast ratio 500 brightness
| Specification | |
| LCD type |
15 inch ips display |
| Display type | 15 inch TFT, 16.7M color, normally black |
| Driver element | color active matrix thin film transistor |
|
Viewing angle |
All |
| Outline Dimension(mm) |
326.50x253.5x9.1 |
| Active Area.(mm) | 304.1x228.1 |
| Resolution(dots) |
1024xRGBx768 |
|
Operating Voltage |
3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode |
Normally black |
| Luminance(cd/m2) | 500(typ.) |
| Contrast Ratio | 2500(typ.) |
| Application | Notebook, advertisement display, etc. |
|
Number of pins |
20 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
