SSD2119 controller 3.5 inch 320X240 resolution lcd screen display with RTP
Specification
LCD type
CTC
Display type
2.4 inch TFT lcd qvss, 262k color, normal white
Driver element
a-si TFT Active matrix
Outline Dimension(mm)
42.72x60.26x3.35
A.A.(mm)
36.72x48.96
Driver IC
ST7789V2-G4-A
Item

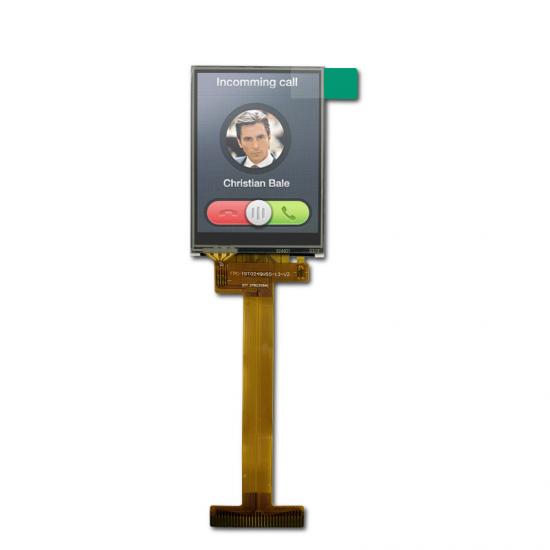

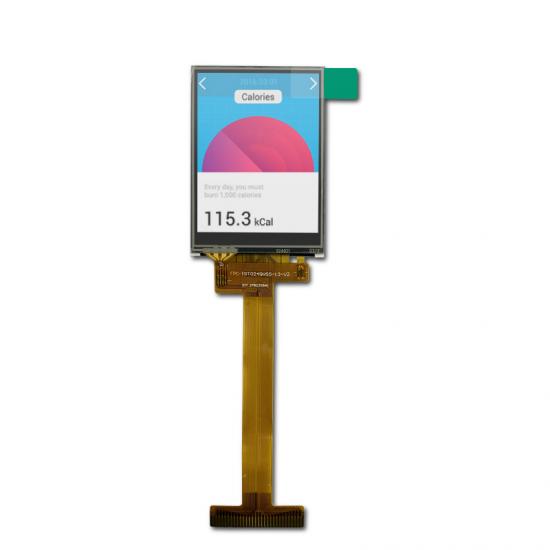

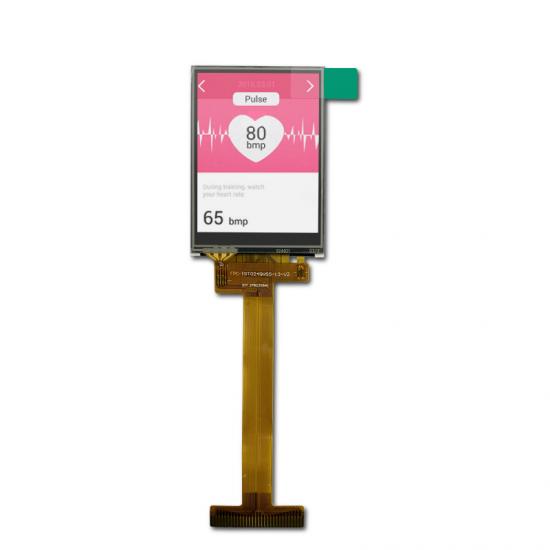

2.4 inch tft lcd panel with zif fpc connector
Resolution(dots)_
320*RGB*240
Viewing Direction
12H
Operating temperature(°C)
-20-70
Storage temperature(°C)
-30-80
Number of Pixel(pixels)
320(H)x RGB x 240(V)
LCM Luminance
350 cd/㎡
Operating Volatge
2.8v
Pixel arrangement
RGB Stripe
Display mode
Normally white
Surface treatment
Antiglare, Hard-Coating(3H)
Weight(g)
TBD
Backlight
4 Chip-White LEDs, If=15mA/LED
Touch screen
without RTP
Interface
18 BIT RGB+SPI
Module lifetime(Hours)
50,000-100,000
