3.5'' 320X240 tft lcd screen display SSD2119 multiple interface

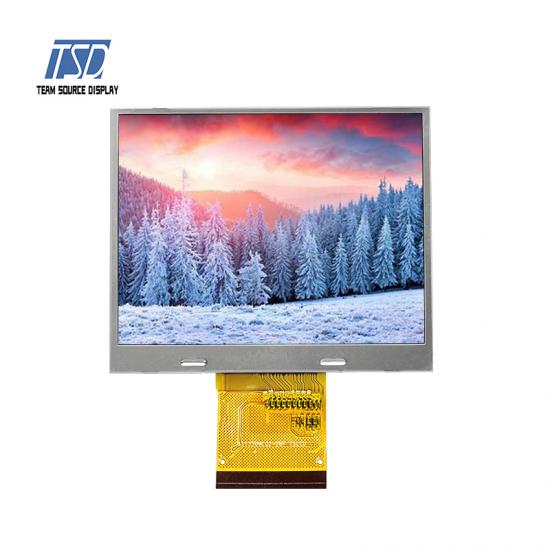

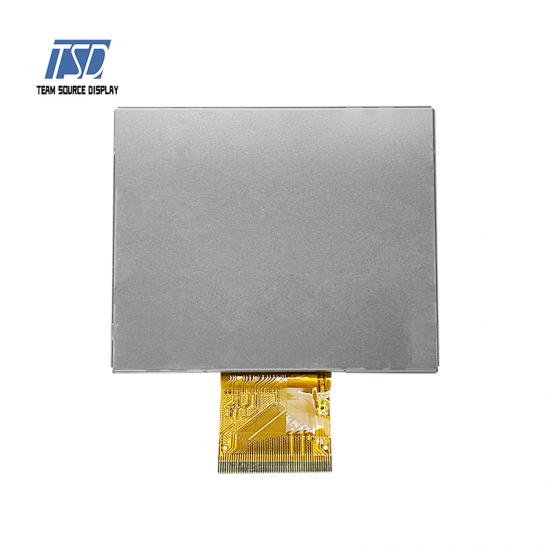

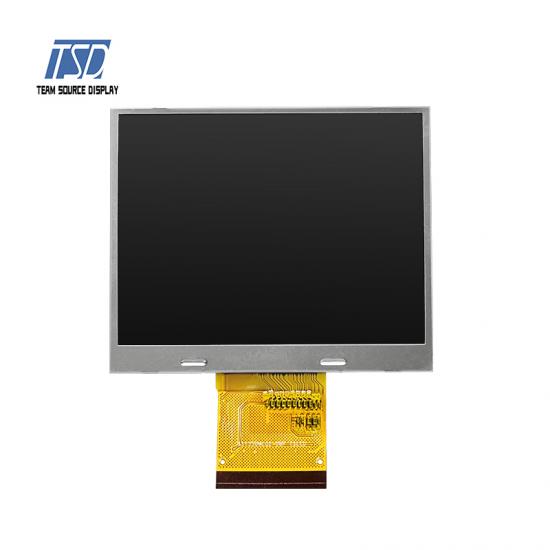

The item TST350MLQZ-06 is the 3.5 inch TFT lcd module with resolution 320xRGBX240 QVGA . LCD small display

It is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD)

small size 3.5 inch with IC driver SSD2119.ANTI-GLAR surface treatment ,availble with RTP or CTP ,

Suport customized your touch screen and cover lens



Specification
LCD type TFT, Transmissive
Display type 3.5 inch TFT lcd hvga, 262k color, normal white
Driver element a-si TFT Active matrix
Outline Dimension(mm) 76.90x63.90x3.2
A.A.(mm) 70.08x52.56
Driver IC HX8357D
Item 3.5 inch tft lcd panel with zif fpc connector
Resolution(dots)_ 320*RGB*480
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 320(H)x 3RGB x 320(V)
Pixel Pitch 0.219x0.219
Operating Volatge 2.8v
Pixel arrangement RGB Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Interface 18 bit RGB+SPI
Module lifetime(Hours) 50,000-100,000
