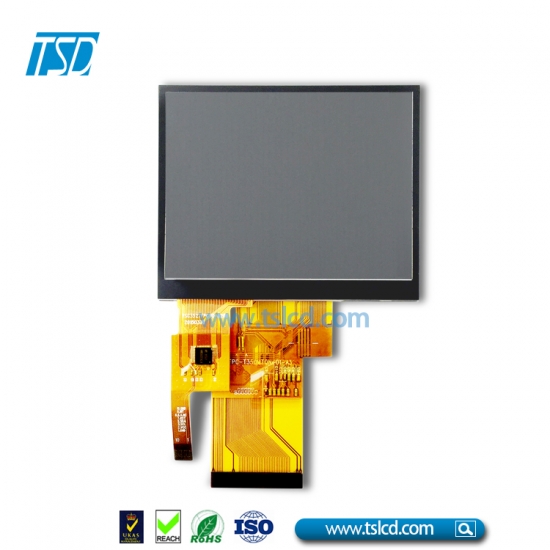

3.5 inch QVGA touch screen display with SSD2119 driver IC
Specification
LCD type
TFT, Transmissive
Display type
3.5 inch TFT lcd hvga, 262k color, normal white
Driver element
a-si TFT Active matrix
Outline Dimension(mm)
54.5x83.0x2.1
A.A.(mm)
48.96x73.44
Driver IC
SSD2119
Item
3.5 inch tft lcd panel with zif fpc connector
Resolution(dots)_
320*RGB*480
Viewing Direction
12H
Operating temperature(°C)
-20-70
Storage temperature(°C)
-30-80
Number of Pixel(pixels)
240(H)x 3RGB x 320(V)
Dots Pitch
0.18x0.18
Operating Volatge
2.8v
Pixel arrangement
RGB Stripe
Display mode
Normally white
Surface treatment
Antiglare, Hard-Coating(3H)
Weight(g)
TBD
Backlight
6 LEDs, White
Touch screen
with Capacitive touch screen
Interface
RGB+SPI
Module lifetime(Hours)
50,000-100,000
