Specification

Part No.

TST043WQBS-40

Outline Dimension(mm)

105.5x67.2x3.0(Typ.)

Display Area(mm)

95.04(H)x53.41(V)

Driver IC

ST7282

Resolution(dots)

WQVGA, 480*RGB*272

Description

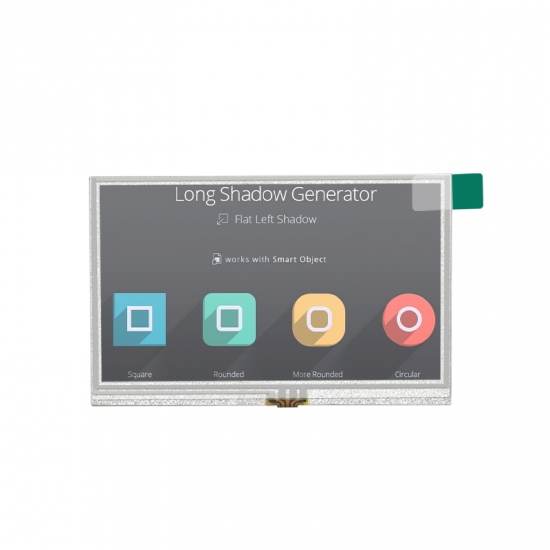

4.3" lcd display panel

Operating temperature(°C)

-20~70

Storage temperature(°C)

-30~80

Number of Pixel(pixels)

480RGB(H)*272(V)

Pixel Pitch

0.198(H)*0.198(V)

Pixel arrangement

RGB Vertical stripe

Display mode

Normal white,262k colors, 4.3 inch tft lcd

Surface treatment

Antiglare, Hard-Coating(3H)

Touch screen

Without

Module brightness(cd/m2)

200(Typ.)

Backlight

LED Side-light type,

7 pcs. white LED

Power Consumption(w)

Logic system

0.09Max.

B/L system

0.924Max.
