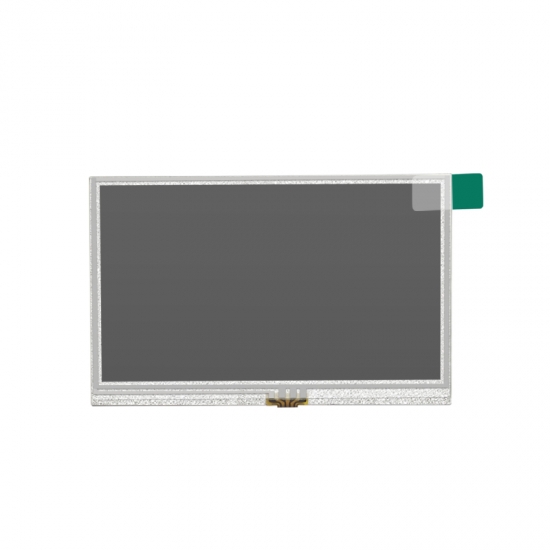

Cheap 4.3 inch color LCD display 7pcs LEDs with Resistive touch screen
Specification |
||
Part No. |
TST043WQBS-40P |
|
Outline Dimension(mm) |
105.5x67.2x3.0(Typ.) |
|
Display Area(mm) |
95.04(H)x53.41(V) |
|
Driver IC |
ST7282 |
|
Resolution(dots) |
WQVGA, 480*RGB*272 |
|
Description |
4.3" lcd display panel |
|
Operating temperature(°C) |
-20~70 |
|
Storage temperature(°C) |
-30~80 |
|
Number of Pixel(pixels) |
480RGB(H)*272(V) |
|
Pixel Pitch |
0.198(H)*0.198(V) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display mode |
Normal white,262k colors, 4.3 inch tft lcd |
|
Surface treatment |
Antiglare, Hard-Coating(3H) |
|
Touch screen |
With RTP |
|
Module brightness(cd/m2) |
200(Typ.) |
|
Backlight |
LED Side-light type, |
|
7 pcs. white LED |
||
Power Consumption(w) |
Logic system |
0.09Max. |
B/L system |
0.924Max. |
