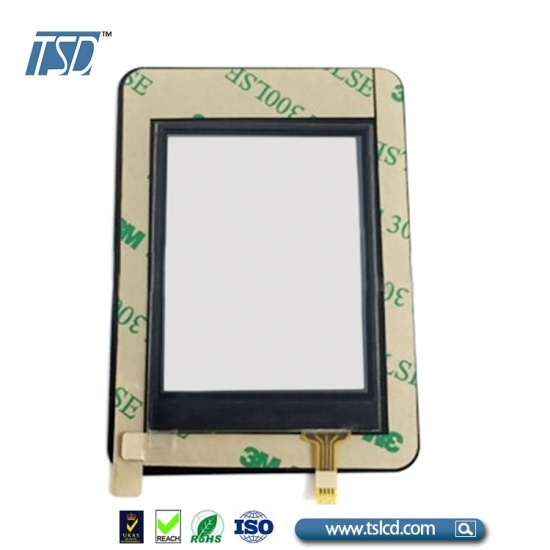

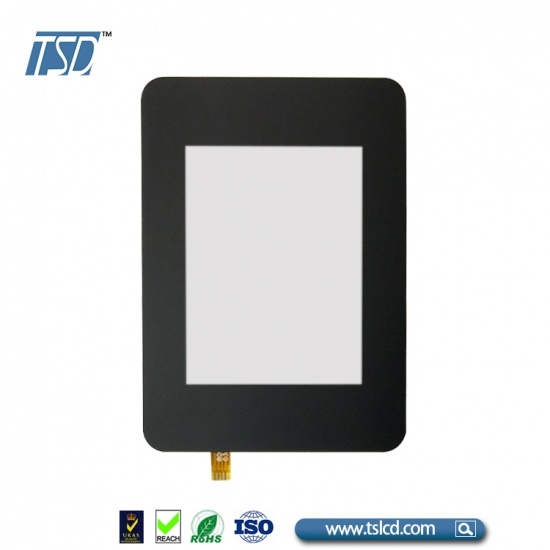

TFT Cover lens with RTP for 2.4inch LCD module

Ressistive touch screen with cover lens for 2.4inch TFT used

AR,AG,AF design if need

Resistive touch panel screen with cover lens for 2.4 TFT used .customized touch panel ,small size touch screen.



TSD CTP Fearures:



1.    Touch point: Multi-touch can up to 10 touch points

2.    Bonding: OCA bonding,3M double side bonding, commonly it is optical bonding between the sensor and cover lens.

3.    Surface Treatment: AR/AF/AG coating available

4.     Factory price support.



We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.





Custom Process:

Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks





Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
