Description:

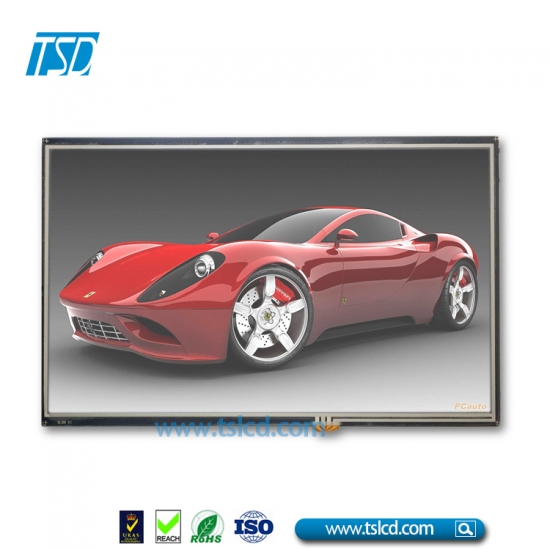

TST101WXBN-16P is 10.1 inch 1280x800 resolution LCD display with LVDS interface, standard brightness is 1000cd/m2. For this 10.1 inch TFT LCD module, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 10.1 inch lcd is suitable for industrial grade application.
| Specification | |
| LCD type | 10.1" tft lcd display Module |
| Display type | 10.1 inch TFT, 16.7M color, normally Black |
| Driver element | color active matrix thin film transistor |
| Backlight | 36 white LED |
| Outline Dimension(mm) | 229.46*149.1*2.7 |
| Active Area.(mm) | 216.96*135.6 |
| Resolution(dots) | WSVGA 1280xRGBx800 |
| Operating Voltage | 3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Luminance(cd/m2) | 1000(typ.) |
| Contrast Ratio | 450(typ.) |
| Application | Notebook, advertisement display, etc. |
| IC | HX82822/HX8696 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |
Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | GND1 | Ground |
| 2 | ID-CHK | Product ID signal output (1.8V) |
| 3 | NC | No connect |
| 4-8 | 3.3V | Logic power 3.3V |
| 9 | WPN | No connection |
| 10 | SCL |
No connection |
| 11 | SDA | ground |
| 12 | GND2 | ground |
| 13 | GND3 | ground |
| 14 | GND4 | ground |
| 15 | RXIN3N | Negative LVDS differential data input |
| 16 | RXIN3P | Positive LVDS differential data input |
| 17 | GND5 | Power ground |
| 18 | LVDS-RX-N | Negative LVDS differential data input |
| 19 | LVDS-RX-P | Positive LVDS differential data input |
| 20 | GND6 | Power ground |
| 21 | RXIN2N | Negative LVDS differential data input |
| 22 | RXIN2P | Positive LVDS differential data input |
| 23 | GND7 | Power ground |
| 24 | RXIN1N | Negative LVDS differential data input |
| 25 | RXIN1P | Positive LVDS differential data input |
| 26 | GND8 | Ground |
| 27 | RXINON | No connection |
| 28 | RXINOP | No connection |
| 29 | GND9 | Ground |
| 30 | GND10 | Ground |
| 31 | NC | No connection |
| 32-35 | LEDK | No connection |
| 36-38 | NC | Power for Analog Circuit |
| 39-43 | LEDA | Power ground |
| 44 | NC | LED Cathode |
| 45 | GND11 |
Ground |
Applications:
For our 10.1 inch LCD display TST101WXBN-16P, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.10.1 inch 1280*800 res. with 45 pins LVDS interface with RTP
2. IPS lcd full viewing angle
3.high brightness up to 1000nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
