Description:

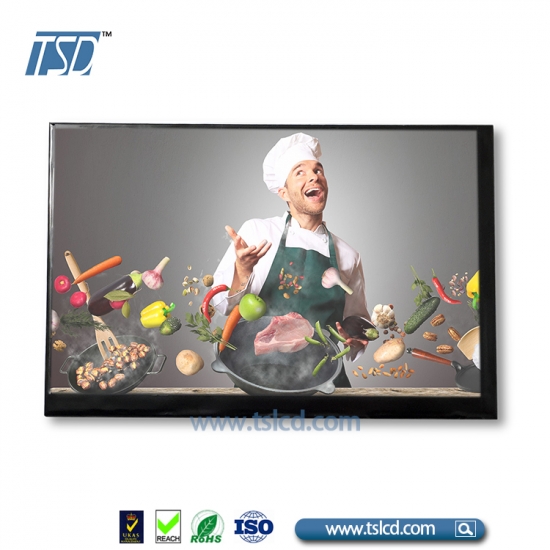

TST101WXBH-26 is 10.1 inch 1280x800 resolution LCD display with LVDS interface, standard brightness is 1000cd/m2. For this 10.1 inch TFT LCD module, viewing direction is Free. color depth is 16.7M, Single voltage. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 10.1 inch lcd is suitable for industrial grade application.
| Specification | |
| LCD type | 10.1" tft lcd display Module |
| Display type | 10.1 inch TFT, 16.7M color, normally white |
| Driver element | color active matrix thin film transistor |
| Backlight | 36 white LED |
| Outline Dimension(mm) | 229.46*149.1*2.7 |
| Active Area.(mm) | 216.96*135.6 |
| Resolution(dots) | WSVGA 1280xRGBx800 |
| Operating Voltage | 3.3V |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally white |
| Luminance(cd/m2) | 1000(typ.) |
| Contrast Ratio | 450(typ.) |
| Application | Notebook, advertisement display, etc. |
| IC | HX82822/HX8696 |
| Interface | LVDS |
| Module lifetime(Hours) | 50,000-100,000 |

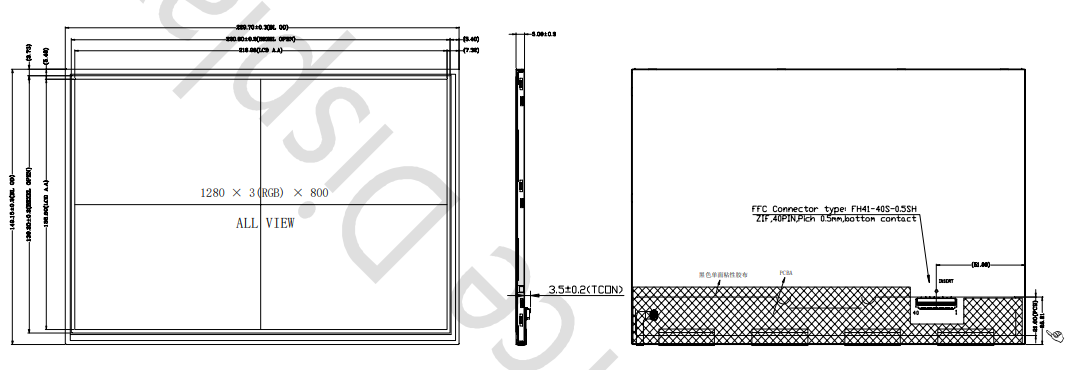

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | NC | No connect |
| 2 | VDD | Logic power 3.3V |
| 3 | VDD | Logic power 3.3V |
| 4 | NC | No connection |
| 5 | NC | No connection |
| 6 | NC |
No connection |
| 7 | GND | ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXINO+ | +LVDS differential data input |
| 10 | GND | Power ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Power ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Power ground |
| 17 | RXCLKIN- | -LVDS differential data input |
| 18 | RXCLKIN+ | +LVDS differential data input |
| 19 | GND | Power ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | +LVDS differential data input |
| 22 | GND | Power ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Power ground |
| 26 | NC | No connection |
| 27 | NC | No connection |
| 28 | NC | No connection |
| 29 | NC | No connection |
| 30 | GND | Power ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | NC | No connection |
| 34 | NC | No connection |
| 35 | NC | No connection |
| 36 | NC | No connection |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
Applications:
For our 10.1 inch LCD display TST101WXBH-26, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.10.1 inch 1280*800 res. with 40 pins LVDS interface
2. IPS lcd full viewing angle
3.high brightness up to 1000nits
4. Single Voltage
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
