Description:

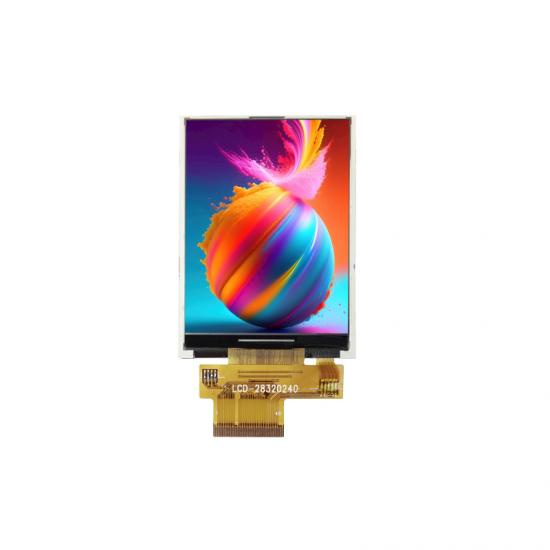

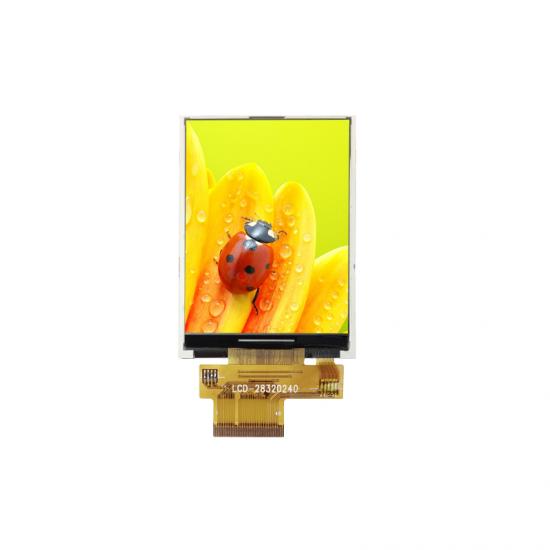

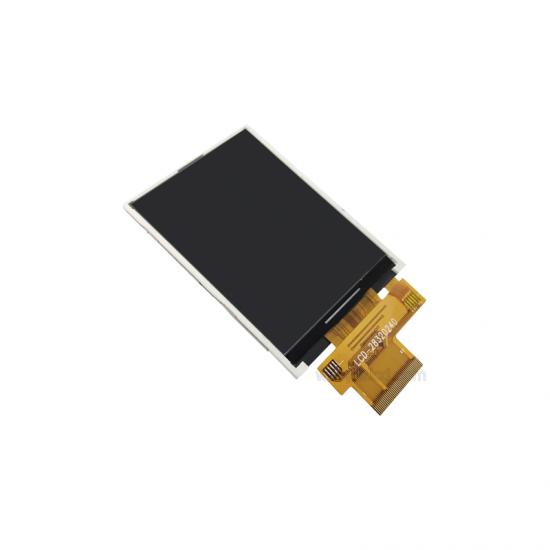

TST28QV02A is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight . The active display area is a 43.2 (W) x 57.6 (H) measurement on the diagonal, with an active resolution of 240 x (RGB) × 320. This 2.4 inch LCD can be used to display pictures and text.

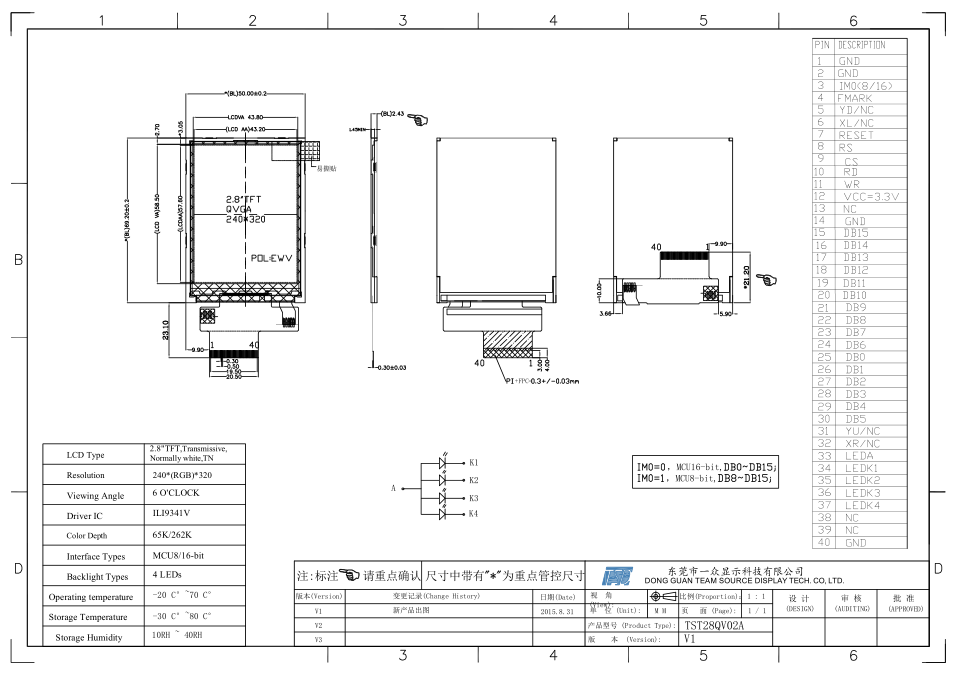

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST28QV02A | |
|
Outline Dimension(mm) |
50.0W) x 69.2(H) x 3.58(D) |
|
|
Active Area(mm) |
43.2 (W) x 57.6 (H) |
|
|
Resolution(dots) |
240 x (RGB) × 320 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Touch panel |
Resistive Touch Panel |
|
|
Driver IC |
ILI9341V |
|
|
Pixel arrangement |
RGB-stripe |
|
|
Display mode |
a-Si TFT,Transmissive,Normally white,TN |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
6 o'clock |
|
|
Weight(g) |
23.2 G |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
MCU 8/16-bit |
|
|
Module lifetime(Hours) |
50,000-100,000 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
Security Products: elevator controller, electronic indicator.
