Description:

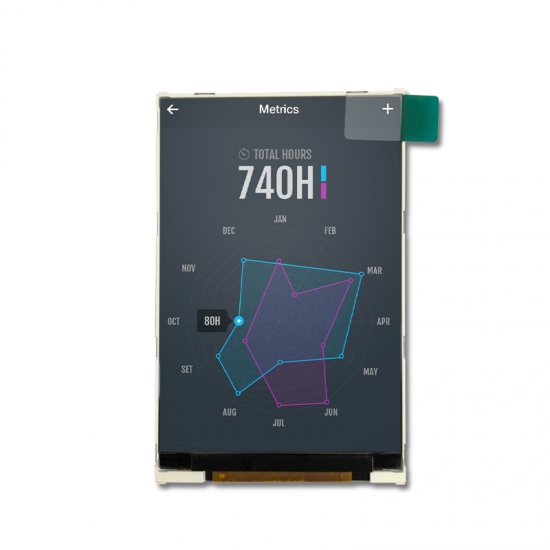

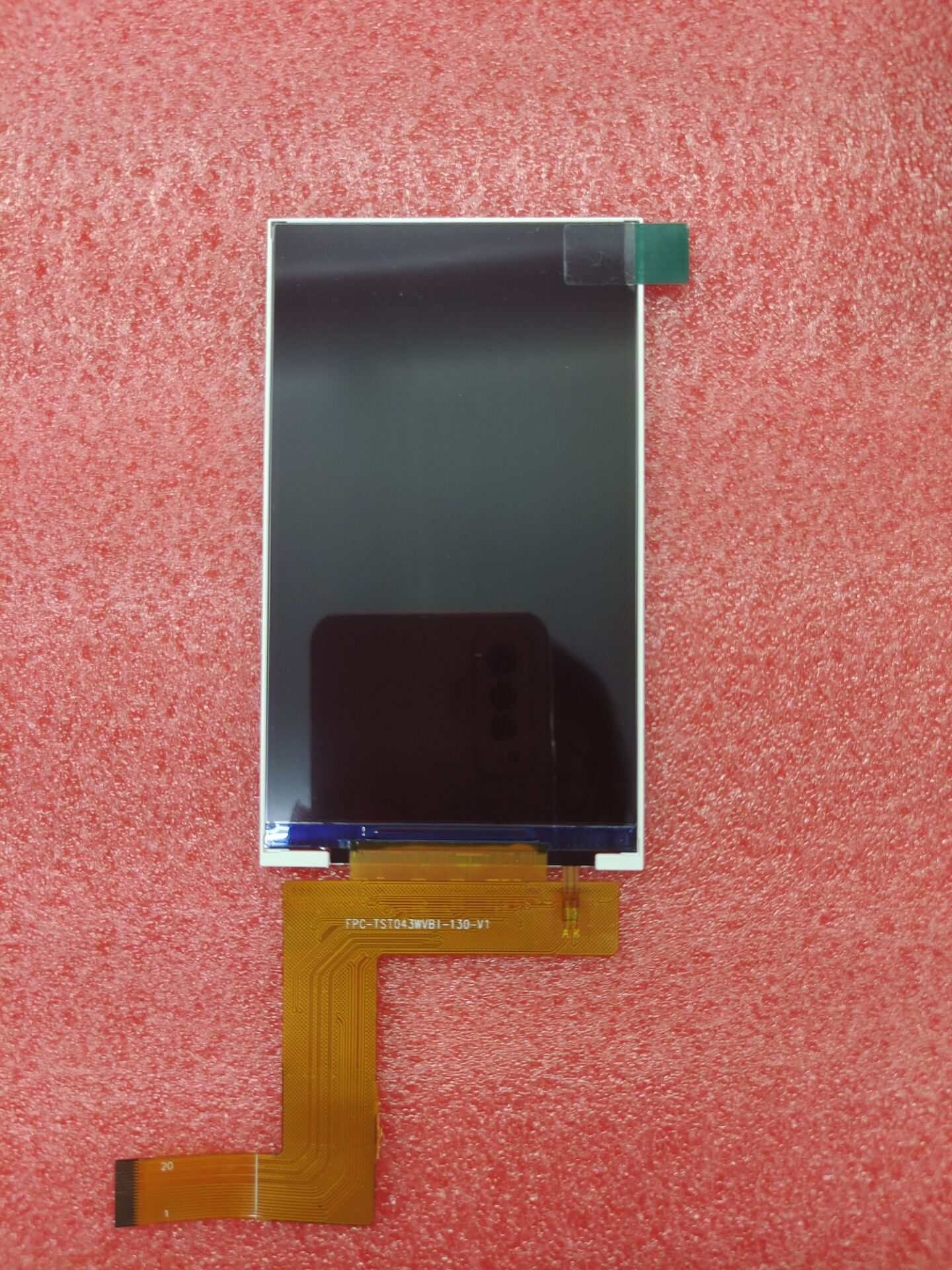

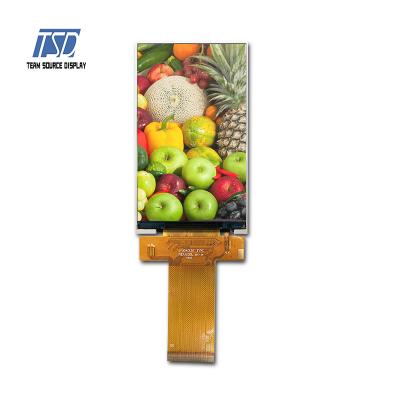

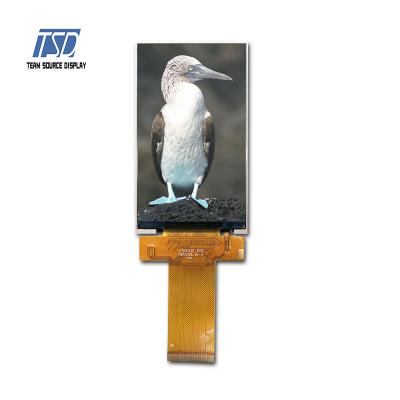

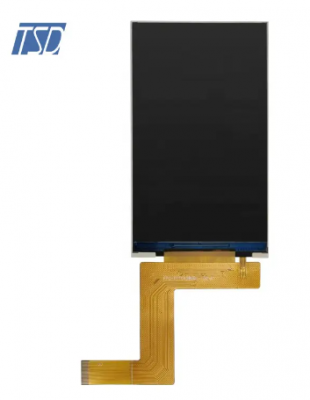

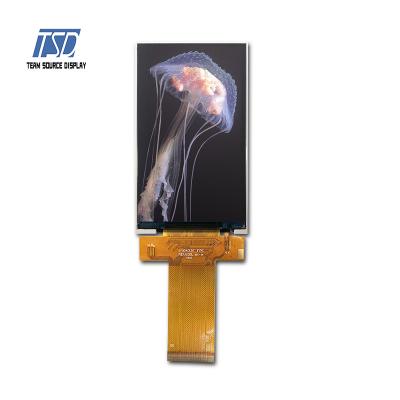

TST043WVBI-69 is 4.3 inch 480x800 resolution MIPI interface LCD display module in industrial grade, It could be used for HMI and access control. The brightness is 260 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 30V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ILI9806E, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

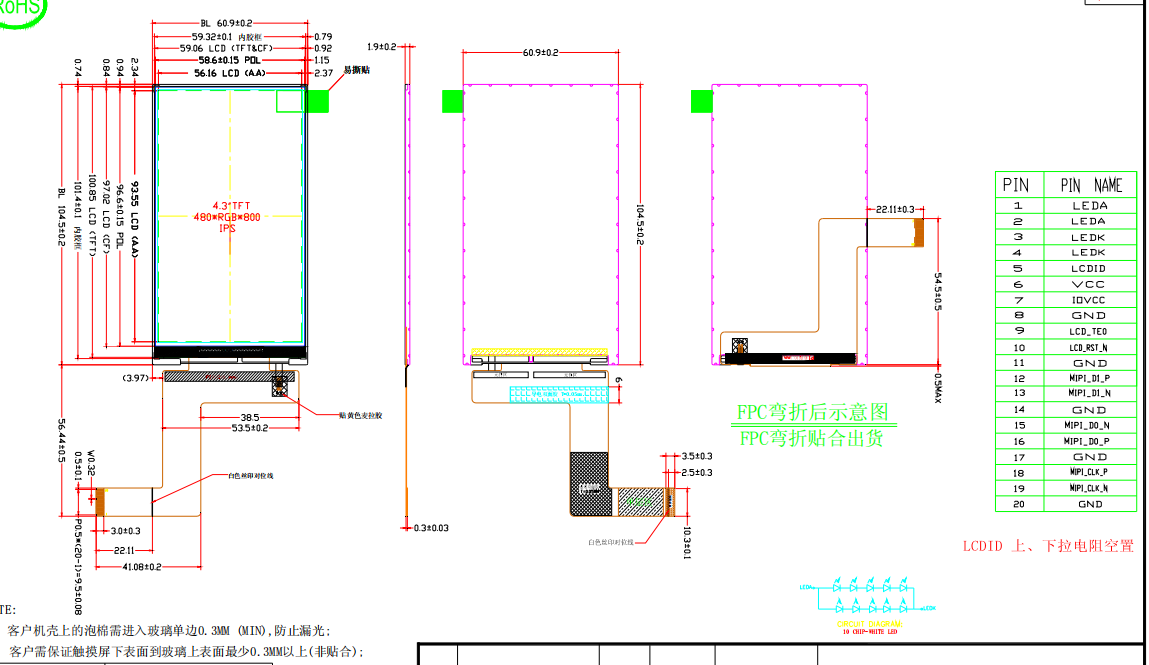

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WVBI-69 | |
| Outline Dimension(mm) | 60.9x104.5x1.9 | |
| Active Area(mm) | 56.16x93.6 | |
| Resolution(dots) | 480x800 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx800(V) | |
| Touch panel | without CTP | |
| Driver IC | ILI9806E | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MIPI interface |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1-2 | LEDA | Anode of LED backlight |
| 3-4 | LEDK | Cathod of LED backlight |
| 5 | LCDID | No connection |
| 6 | VCC | Anolog voltage, 2.5-3.6V |
| 7 | VDDIO | I/O supply voltage, 1.65-3.6V |
| 8 | GND | System ground |
| 9 | LCD-TE0 | Tearing effect output |
| 10 | RST | Eternal reset input |
| 11 | GND | System ground |
| 12 | MIPI-D1-P | DSI differential data + |
| 13 | MIPI-D1-N | DSI differential data - |
| 14 | GND | System ground |
| 15 | MIPI-D0-P | DSI differential data + |
| 16 | MIPI-D0-N | DSI differential data - |
| 17 | GND | System ground |
| 18 | MIPI-CLK-P | DSI differential clock + |
| 19 | MIPI-CLK-N | DSI differential clock - |
| 20 | GND | System ground |
Applications:
For our 4.3 inch 480x800 TFT LCD display model TST043WVBI-69, it is normally used in smart home and home appliance device.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x800 dots and can display up to 16.7M colors.
