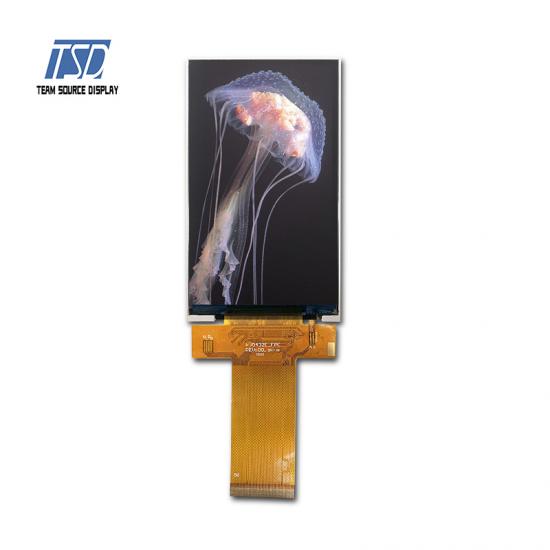

TSD 480x800 IPS 4.3 inch RGB tft lcd module in 250 nits

  • Model Name: TST043WVBI-57
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x800
  • Viewing angle: All o'clock
  • Brightness: 250 cd/m2
  • Driver IC: ILI9806E
  • Interface: RGB interface
  • Touch Screen: without capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TST043WVBI-57 is 4.3 inch 480x800 resolution RGB 24 pins LCD display module in industrial grade, It could be used for HMI and access control. The brightness is 520 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.6V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ILI9806E, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

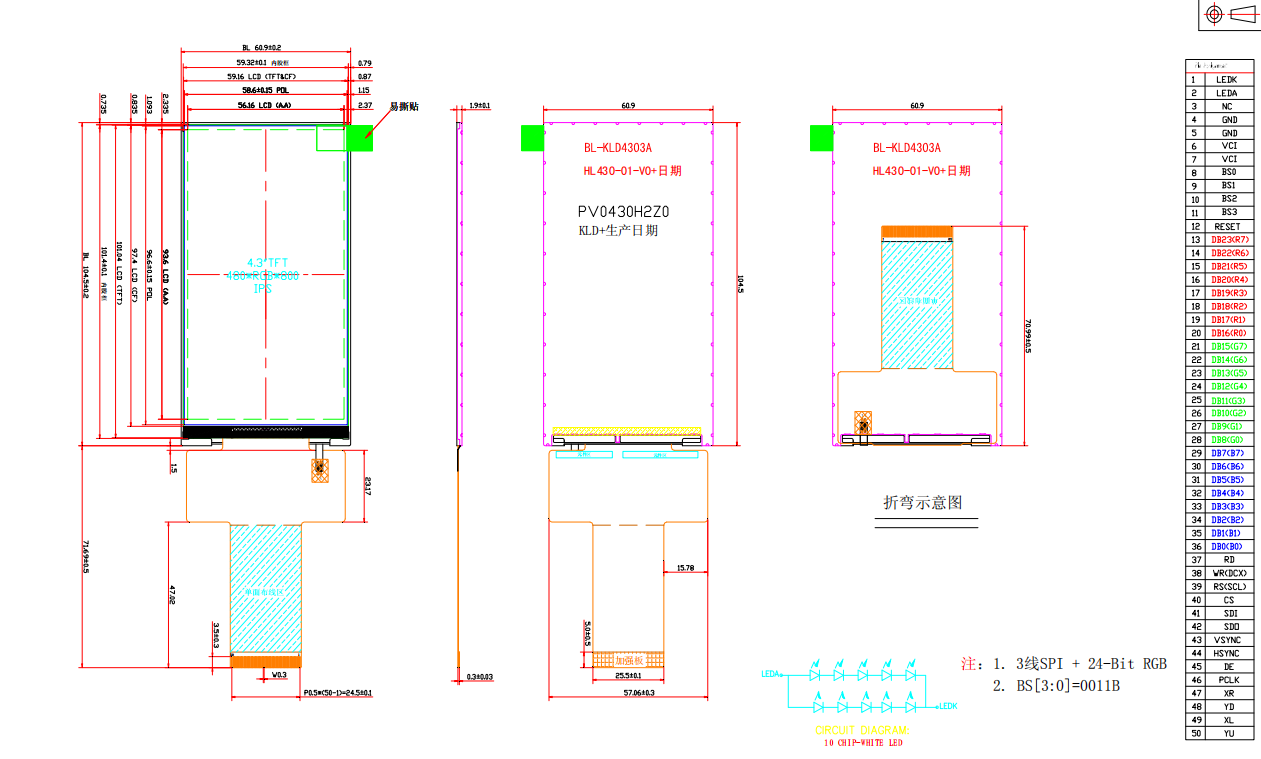

Drawing:



4.3 inch 480x800 lcd display


Specifications:



General Specification
Part No.  TST043WVBI-57
Outline Dimension(mm)  60.9x104.5x1.9
Active Area(mm) 56.16x93.6
Resolution(dots) 480x800
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx800(V)
Touch panel  without CTP
Driver IC ILI9806E
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB interface
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 LEDK Cathod of LED backlight
2 LEDA Anode of LED backlight
3 NC No connection
4-5 GND System ground
6-7 VCI Power supply voltage, 2.6-3.3V
8-11 BS0-BS3 BS[3:0]=0011b, 3-line 9 bit + 24-bit RGB
12 RST Reset pin
13-20 R7-R0 Red data
21-28 G7-G0 Green data
29-36 B7-B0 Blue data
37 RD Fix to GND
38 WR Fix to GND
39 SCL Serial clock input
40 CS Chip selection input
41 SDI Serial data input/output pin.
42 SDO open
43 VS Vertical synchronizing signal.
44 HS Horizontal synchronizing signal.
45 DE Data ENABLE signal
46 CLK Dot clock signal
47-50 NC No connection




Applications:



For our 4.3 inch 480x800 TFT LCD display model TST043WVBI-57, it is normally used in smart home and home appliance device.


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x800 dots and can display up to 16.7M colors.
