Description:

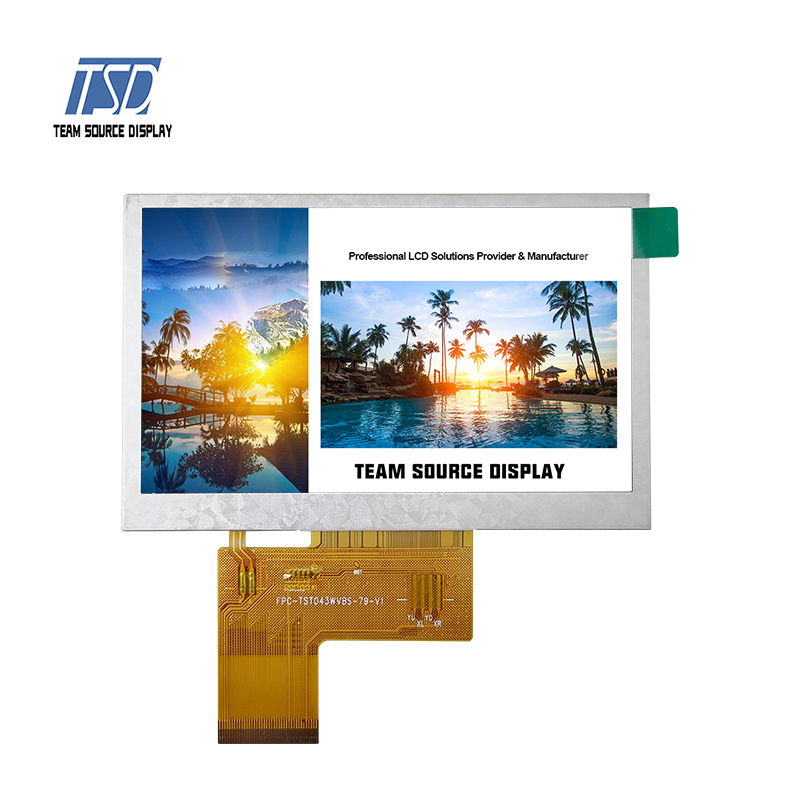

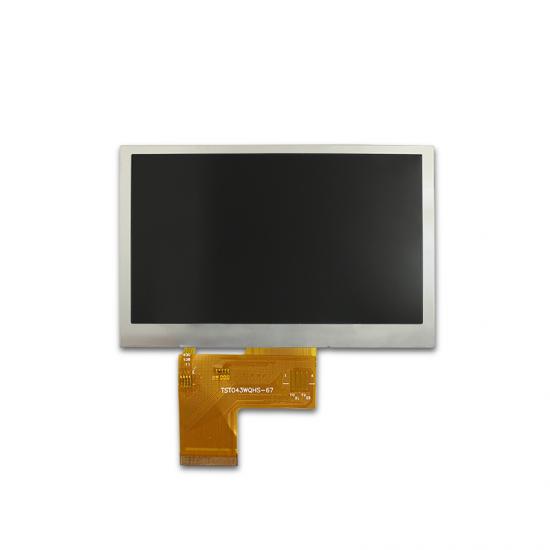

TST043WQHS-114 is 4.3 inch 480x272 resolution RGB 24 bits interface LCD display module in industrial grade, it's very suitable for outdoor application and industrial control product. The brightness is 400 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.5V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SC7283, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

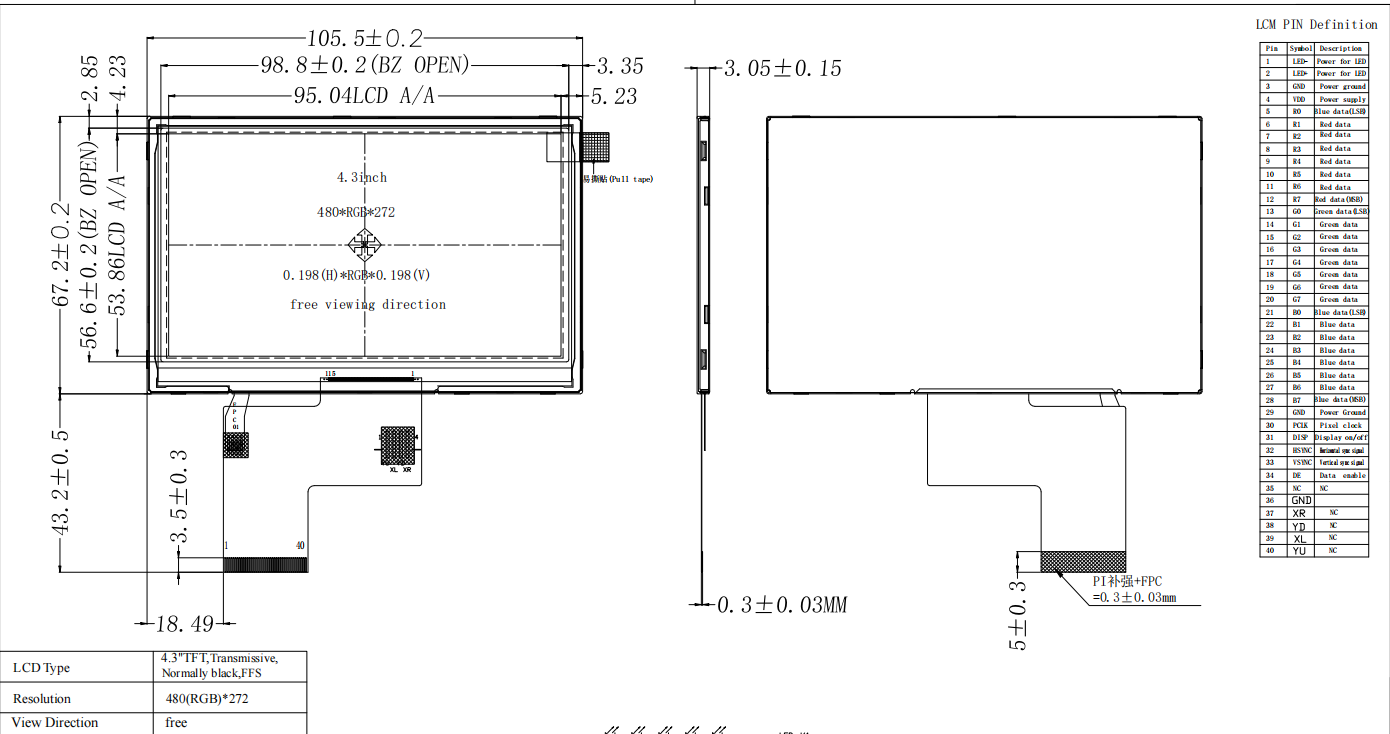

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQHS-114 | |
| Outline Dimension(mm) | 105.5x67.2x3.05 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -30 ~ +80°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | without CTP | |
| Driver IC | SC7283 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB 24 bits |
|
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Power for LED |
| 2 | LED+ | Power for LED |
| 3 | GND | Power ground |
| 4 | VDD | Power supply |
| 5-12 | R1-R7 | Red data, R0-LSB, R7-MSB |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data, B0-LSB, B7-MSB. |
| 29 | GND | Power Ground. |
| 30 | PCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal |
| 33 | VSYNC | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | NC |
| 36 | GND | Power ground |
| 37 | XR | NC |
| 38 | YD | NC |
| 39 | YL | NC |
| 40 | YU | NC |
Applications:
For our 4.3 inch 480x272 TFT LCD display model TST043WQHS-114, it is normally used in industrial control and outdoor products.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
