Description:

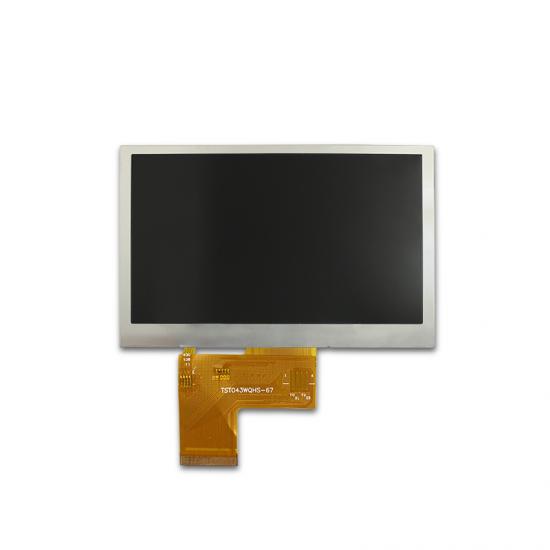

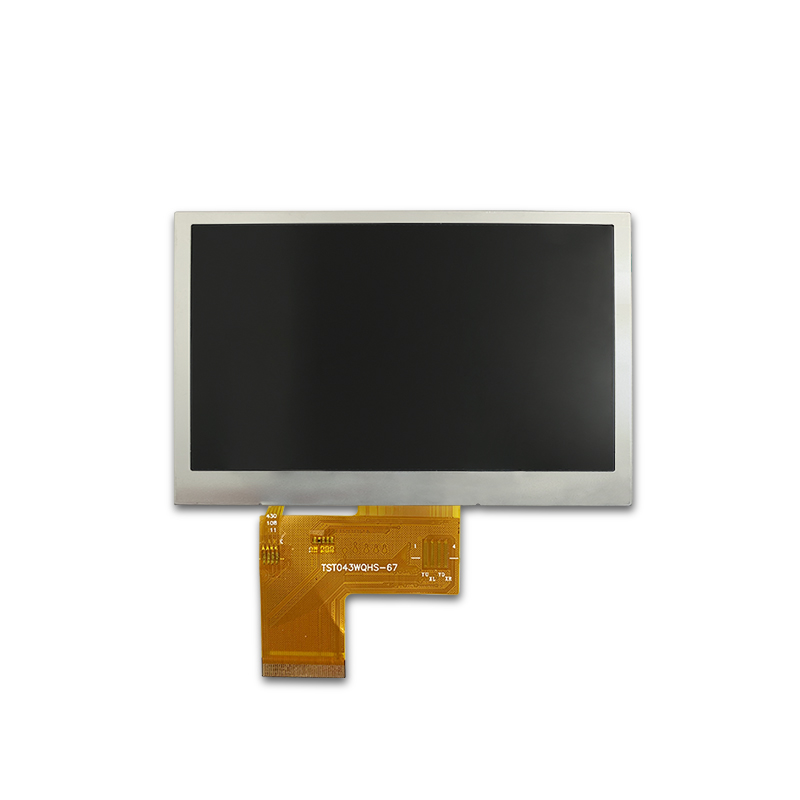

TST043WQHS-67BP is 4.3 inch 480x272 resolution RGB 24 bits interface LCD display module with resistive touch panel, which is in automotive grade, it's very suitable for automotive product, such as airplane and EV charger. The brightness is 750 nits, White LEDs is 16, backlight current is 40mA and backlight voltage is 24.2V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SC7283, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

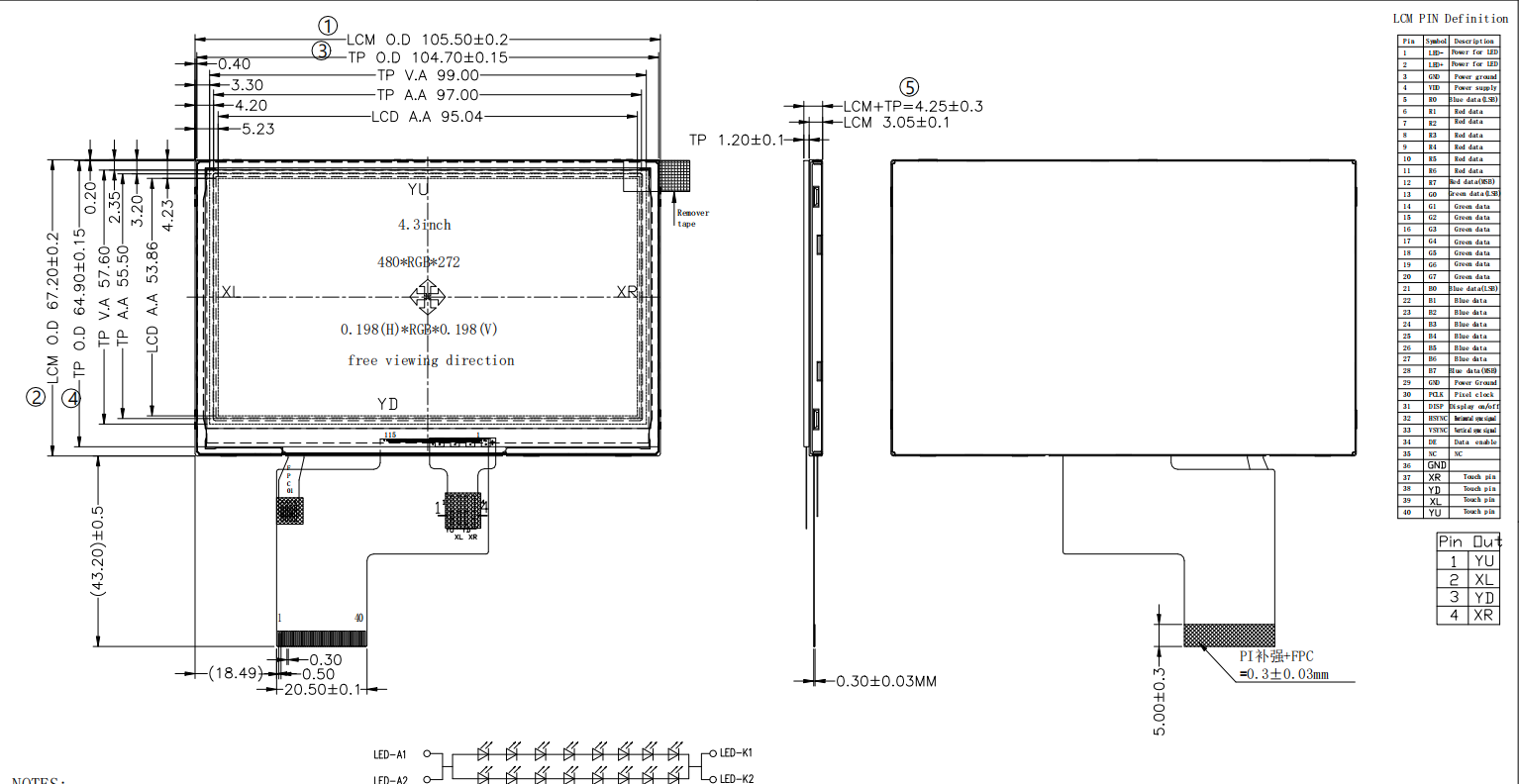

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQHS-67BP | |
| Outline Dimension(mm) | 105.5x67.2x4.25 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -30 ~ +80°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | with RTP | |
| Driver IC | ST7282 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB 24 bits |
|
| Module lifetime(Hours) | 50,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Power for LED |
| 2 | LED+ | Power for LED |
| 3 | GND | Power ground |
| 4 | VDD | Power supply |
| 5-12 | R1-R7 | Red data |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data, B7-MSB. |
| 29 | GND | Power Ground. |
| 30 | PCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal |
| 33 | VSYNC | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | NC |
| 36 | GND | Power ground |
| 37 | XR | NC |
| 38 | YD | NC |
| 39 | YL | NC |
| 40 | YU | NC |
Applications:
For our 4.3 inch 480x272 TFT LCD display model TST043WQHS-67BP, it is normally used in automotive application and outdoor products.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
