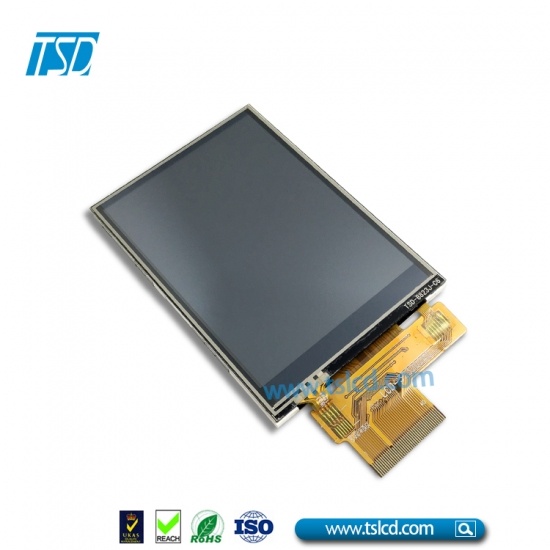

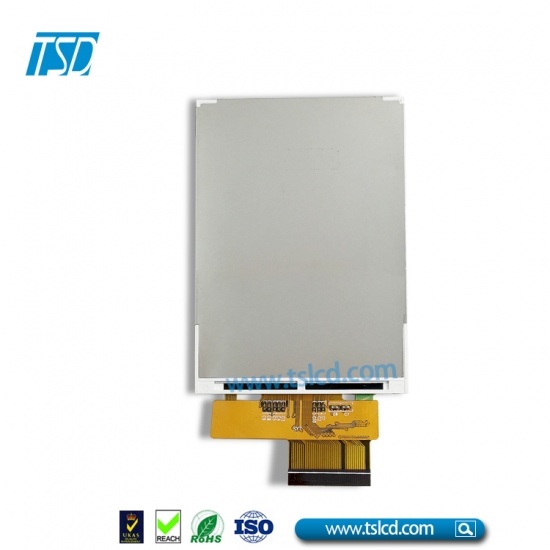

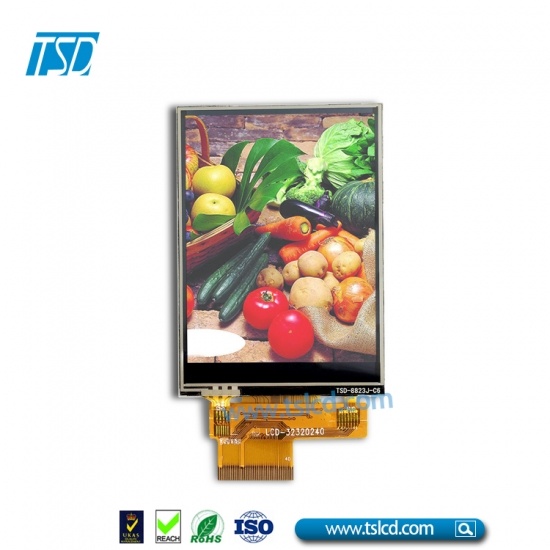

3.2inch 240x320 TFT LCD module with ZIF FPC connector

3.2inch 240x320Res TFT LCD with ZIF FPC connector with MCU interface



Specification
LCD type a-Si TFT,Transmissive,Normally white,TN
LCD Size 3.2 inch
Resolution(WxH) 240xRGBx320
LCM(WxHxD) 55.04W) x 77.7(H) x 2.57(D)
Active Area(WxH) 48.6(w)x64.8(H)
Dot Pitch(WxH) 0.2025(W)x0.2025(H)
Viewing Direction 12 o'clock
Resolution QVGA 240*RGB*320
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Viewing Angle Top:55 Bottom:35;Left/Right:55
Color Depth 65K/262K
Pixel arrangement RGB Vertical Stripe
Backlight Type 6LEDs
Surface Luminance 257 cd/m2
Surface Treatment Anti-Glare
Driver IC ST7789V
Interface Type MCU 8/16-bit
Input Voltage 2.8V
With/Withour TP without
Weight 29g
