TSD Anti-Glare Treated 3.2 Inch 240x320 Resolution with ST7789V Driver IC TN TFT MCU Interface

    • Model Name: TST032QVHS-13
  • LCD Type: 3.2  inch TFT LCD display
  • Resolution: 240*320
  • Viewing angle: 12 o'clock
  • Brightness: 320 cd/m2
  • Driver IC: ST7789V
  • Interface: MCU 8/16-bit
  • Touch Screen: Customizable
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST032QVHS-13 is a 3.2 inch 240*320 resolution LCD display with MCU interface. With a small size looking, this LCD is popular in handheld devices and smart phone market in some areas of all world.  For our standard 3.2 inch LCD, which has such features: Driver IC is ST7789V, Viewing direction is 6 o'clock, interface is MCU, Operating voltage is 3.3v, Color depth is 65K/262K. 3.2 inch LCD found in a wide range of applications like portable electronic devices, industrial instruments and phone.

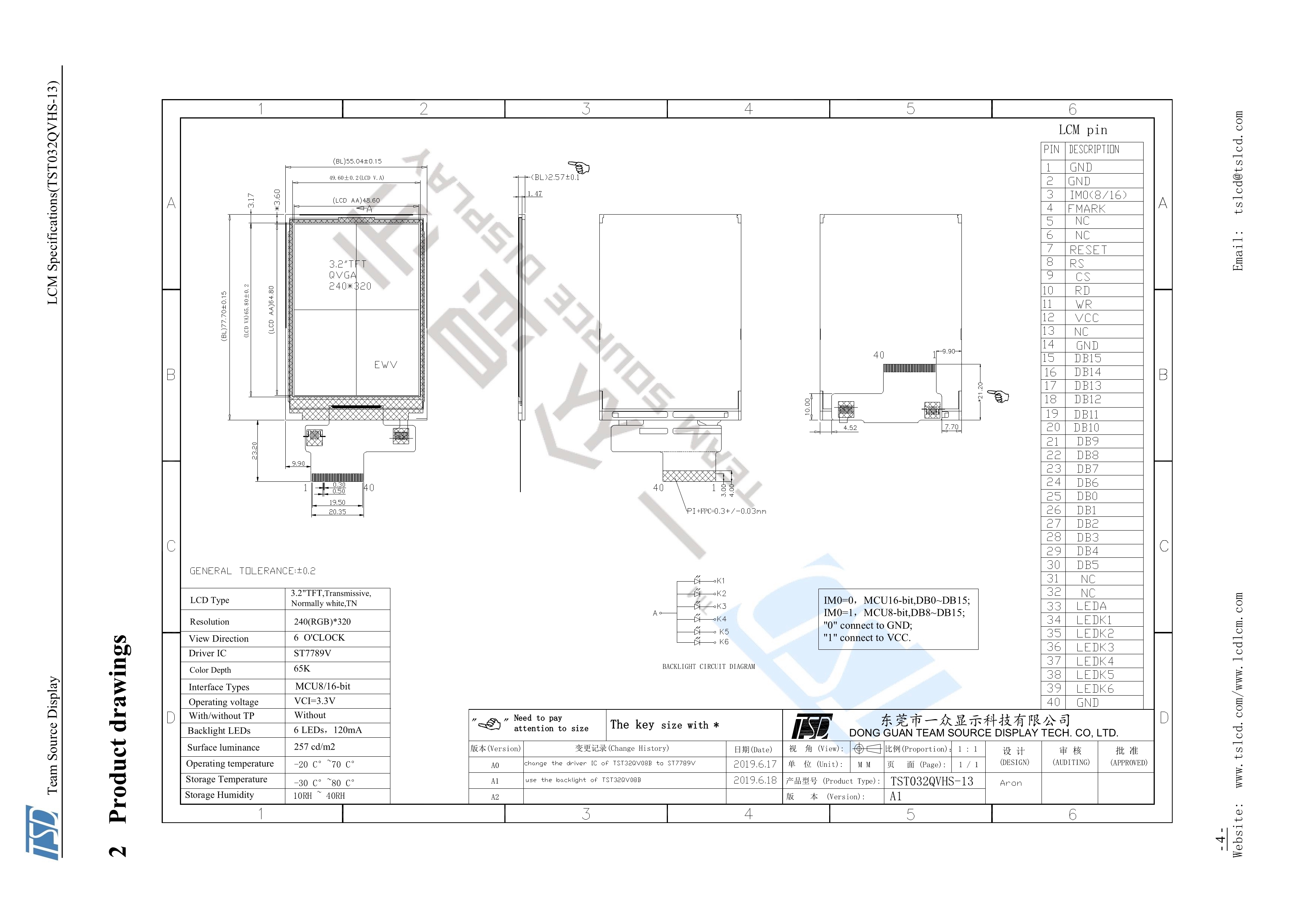

Drawing:




Specifications:



General Specification
Part No.  TST032QVHS-13
Outline Dimension(mm)
55.04W) x 77.7(H) x 2.57(D)
Active Area(mm)
48.6 (W) x 64.8 (H)
Resolution(dots)  240 x (RGB) × 320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels)
240 x (RGB) × 320
Touch panel  Available
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normally white,TN,3.2 inch TFT
Surface treatment Anti-Glare
View direction  6H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU
Module lifetime(Hours) 50,000-100,000





Pins Description
Pin No.  Symbol Description
1
GND
System Ground. (0V)
2
GND
System Ground. (0V)
3
IM0
IM0=0: MCU16-BIT, DB0~DB15
IM0=1: MCU8-BIT, DB8~DB15
4
FMARK
Tearing Effect output signal
5 NC
6
NC

7
RESET
Reset input signal
8
RS
Data/Command Selection pin
9 CS
Chip select signal.
10 RD
read signal
11
WR
 write signal
12
VCC
Power supply +3.3V
13
NC

14 GND System Ground. (0V)
15~24
DB15~DB6
Data BUS
25~30
DB0~DB5
Data BUS
31 NC
32 NC
33
LEDA
Backlight A Aothod input pin
34~39
LEDK1~LEDK6
Backlight K Cathode input pin.
40
GND
System Ground. (0V)




Applications:



For our 3.2 inch LCD display TST032QVHS-13, displays an small size and high resolution, making it widely used in portable electronic devices and embedded systems. No matter it's in smartphones, embedded systems, measuring instruments, or navigation devices, TSD's 3.2 inch LCD support clear and high-quality image display, offering users a great visual experience and information presentation.






Product Features:



1. The 3.2 inch LCD finds extensive application in portable electronic devices such as smartphones to complete these devices expressing a user-friendly interface and image presentation;



2. This 3.2 inch LCD is commonly found in embedded systems. Embedded systems like computer systems embedded in various devices;



3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.
