Description:

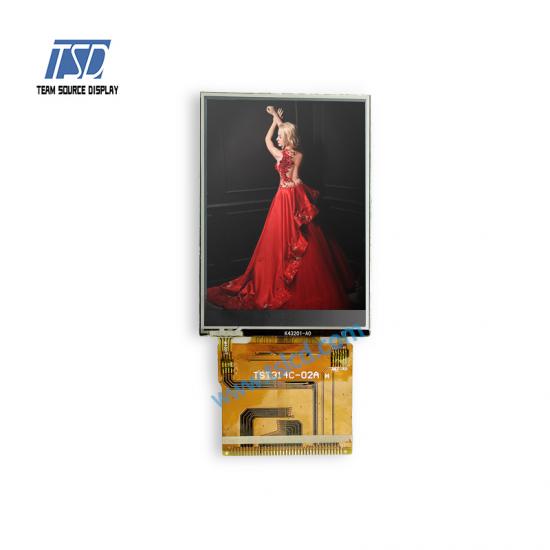

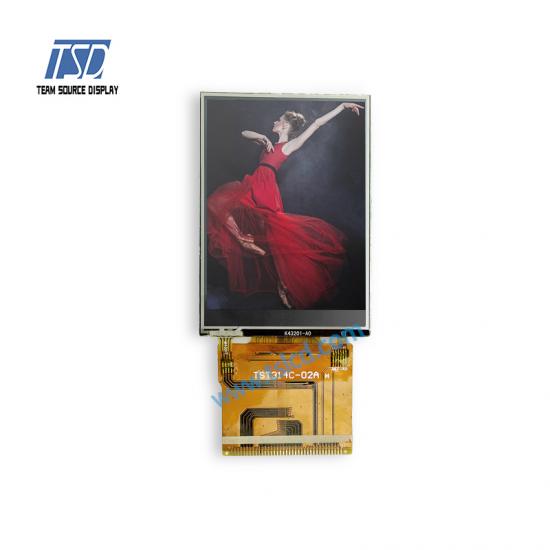

TST314C-02A is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight,RTP. The active display area is a 47.87x63.84 measurement on the diagonal, with an active resolution of 240xRGBx320. This 3.2 inch LCD can be used to display pictures and text.

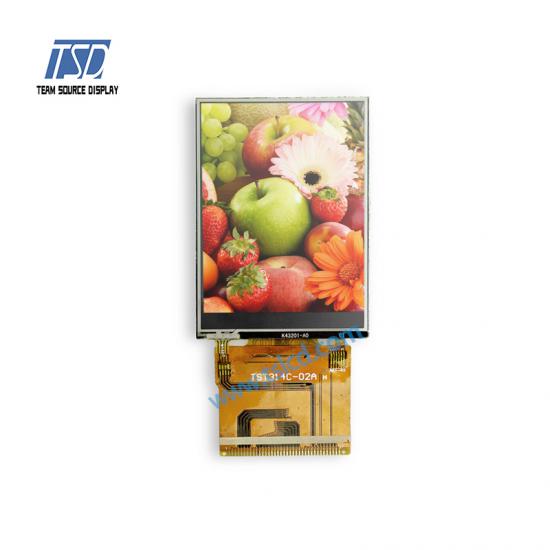

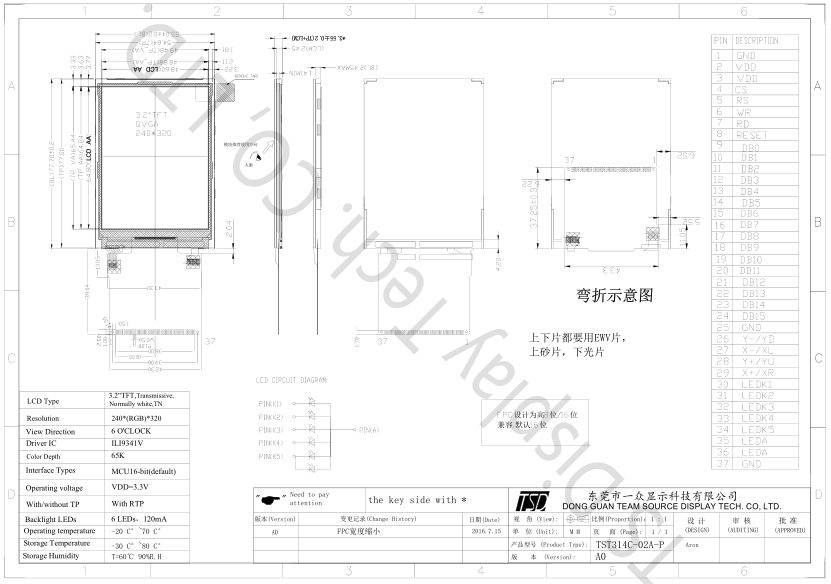

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST314C-02A |
|
|
Outline Dimension(mm) |
55.04x77.70x2.40 |
|
|
Active Area(mm) |
47.87x63.84 |
|
|
Resolution(dots) |
240xRGBx320 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Touch panel |
With RTP |
|
|
Driver IC |
ILI9341 |
|
|
Pixel arrangement |
RGB-stripe |
|
|

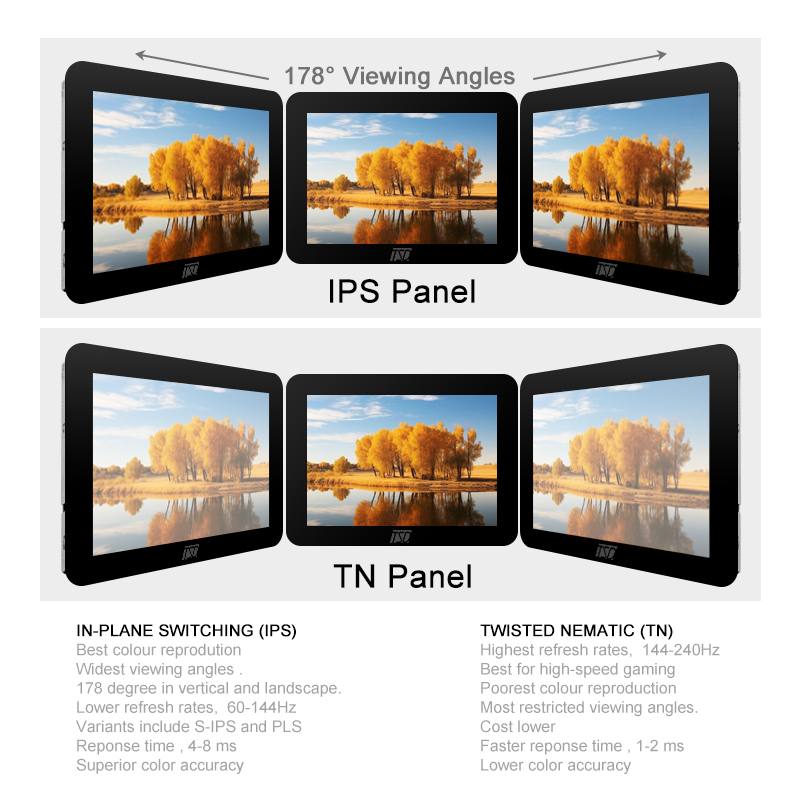

Display mode |
Normal white,TN, |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
12 o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
UART |
|
|
Module lifetime(Hours) |
50,000-100,000 |
|
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
