Description:
TST070HDHF-A00 is 7 inch 1280x768 resolution LCD display with LVDS interface, standard brightness is 1000cd/m2. For this 7 inch TFT LCD module, driver IC is HX8298-A x 3 +HX8695E x 1, viewing direction is Free. 1400:1 high contrast.color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 7 inch lcd is suitable for industrial grade application.
| Specification | ||
| Part No. | TST070HDHF-A00 | |
| Outline Dimension(mm) | 166.90x108.65x7.4 | |
| Active Area(mm) | 152.448x 91.4688 | |
| Resolution(dots) | 1280*RGB*768 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1280RGB(H)xRGBx768(V) | |
| Touch panel | available to custom | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black, IPS, 7.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Brightness | 1000 cd/m2 | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | LVDS | |
| Module lifetime(Hours) | 50,000-100,000 | |

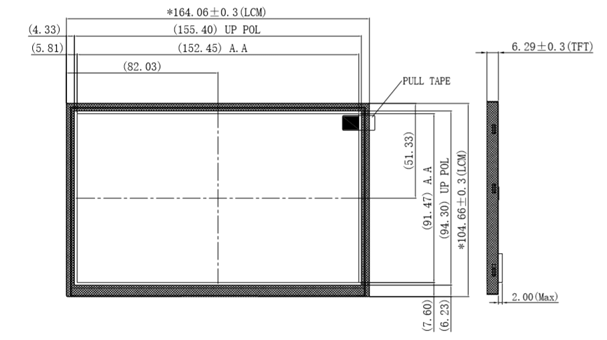

Drawing:
Interface Description:
| Pin No. | Symbol | I/O | Description |
| 1 | NC | -- | No connection |
| 2 | VDD | P | Power Voltage for digital circuit |
| 3 | VDD | P | Power Voltage for digital circuit |
| 4 | NC | -- | No connection |
| 5 | NC | -- | No connection |
| 6 | NC | -- |
No connection |
| 7 | GND | P | ground |
| 8 | RXIN0- | I | -LVDS differential data input |
| 9 | RXINO+ | I | +LVDS differential data input |
| 10 | GND | P | Power ground |
| 11 | RXIN1- | I | -LVDS differential data input |
| 12 | RXIN1+ | I | +LVDS differential data input |
| 13 | GND | P | Power ground |
| 14 | RXIN2- | I | -LVDS differential data input |
| 15 | RXIN2+ | I | +LVDS differential data input |
| 16 | GND | P | Power ground |
| 17 | RXCLKIN- | I | -LVDS differential data input |
| 18 | RXCLKIN+ | I | +LVDS differential data input |
| 19 | GND | P | Power ground |
| 20 | RXIN3- | I | -LVDS differential data input |
| 21 | RXIN3+ | I | +LVDS differential data input |
| 22 | GND | P | Power ground |
| 23 | NC | -- | No connection |
| 24 | NC | -- | No connection |
| 25 | GND | P | Power ground |
| 26 | NC | -- | No connection |
| 27 | NC | -- | No connection |
| 28 | NC | -- | No connection |
| 29 | AVDD | P | Power for Analog Circuit |
| 30 | GND | P | Power ground |
| 31 | LED- | P | LED Cathode |
| 32 | LED- | P | LED Cathode |
| 33 | NC | -- | No connection |
| 34 | NC | -- | No connection |
| 35 | VGL | P | Gate OFF Voltage |
| 36 | NC | -- | No connection |
| 37 | NC | -- | No connection |
| 38 | VGH | P | Gate ON Voltage |
| 39 | LED+ | P | LED Anode |
| 40 | LED+ | P | LED Anode |
Applications:
For our 7 inch LCD display TST070HDHF-A00, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.7 inch 1280*768 res. with 40 pins LVDS interface
2. IPS lcd full viewing angle
3.high brightness up to 1400nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
