TSD 4.3 inch 480×272 HX8257 TFT LCD module with RTP

  • Model Name: TST043WQXH-39P
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: 12 o'clock
  • Brightness: 300 cd/m2
  • Driver IC: HX8257-A01
  • Interface: RGB 24 bits interface
  • Touch Screen: with resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

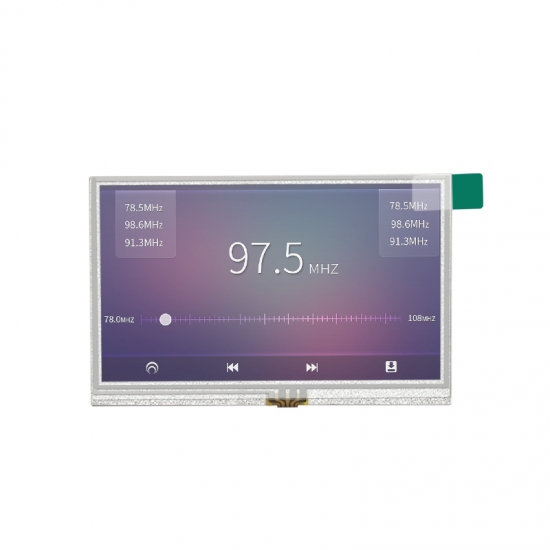

TST043WQXH-39P is 4.3 inch 480x272 resolution RGB 24 bit LCD display module with resistive touch panel. Backlight is 300 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.5V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is HX8257-A01, viewing direction is 12 o'clock, color depth is 16.7M, white backlight and transmissive mode.

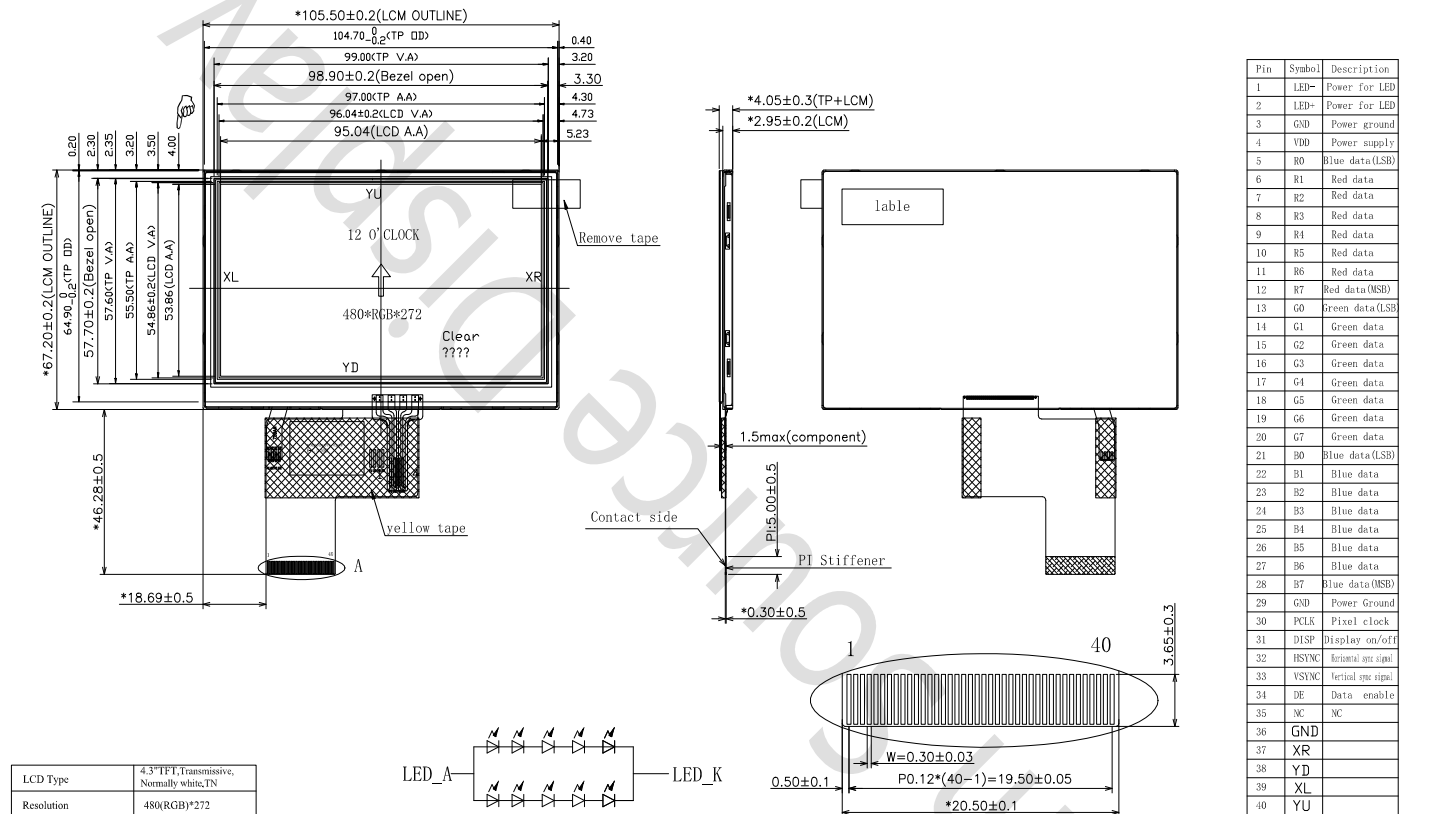

Drawing:


Specifications:



General Specification
Part No.  TST043WQXH-39P
Outline Dimension(mm)  105.5x67.2x4.05
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  with RTP
Driver IC HX8257-A01
Pixel arrangement RGB-stripe
Display mode Normal white, TN, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 20,000-40,000





Pins Description
Pin No.  Symbol Description
1 LED- Cathode of LED backlight
2 LED+ Anode of LED backlight
3 GND Power ground
4 VDD Power voltage
5-12 R0-R7 Red data
13-20 G0-G7 Green data
21-28 B0-B7 Blue data
29 GND System Ground.(0V)
30 DCLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal
33 VSYNC Vertical sync signal
34 DE Data enable
35 NC No connect
36 GND Power ground
37 XR The touch pin X right pin
38 YD The touch pin Y down pin
39 XL The touch pin X left pin
40 YU The touch pin Y up pin




Applications:



For our 4.3 inch 480x272 LCD display TST043WQXH-39P, normally used in smart home product, such as smart thermostat, coffee machine, washing machine.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.











Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
