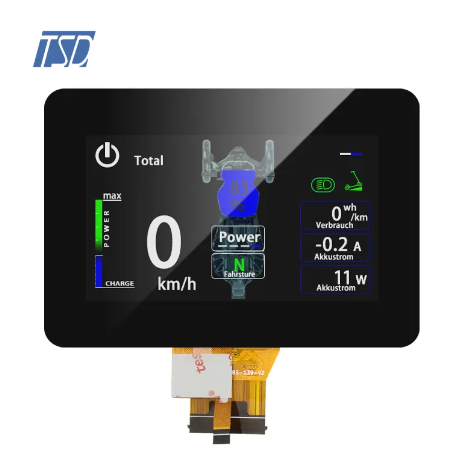

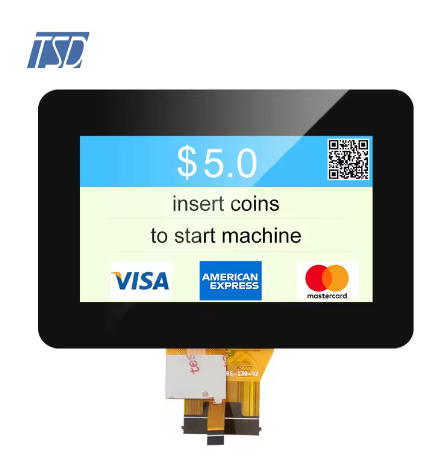

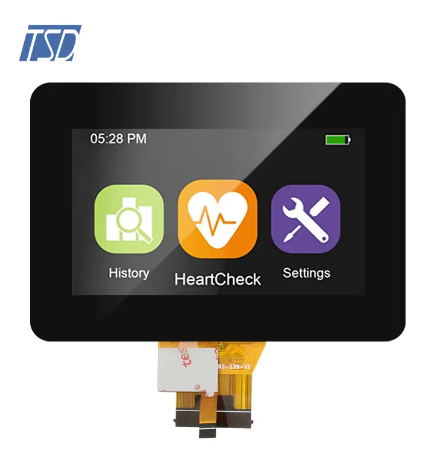

TSD 4.3 Inch TFT LCD Module 800*480 resolution

Part number: TST043WVBS-139C

Resolution: 800x (RGB) × 480

View Direction: All o’clock

Active area: 95.04 (H) x 53.86 V)

LCM: 123.040(H) x 84.46(V) x6.80(T)

Backlight:18 LEDs，240mA

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Inquiry now Data sheet

Description:

TST043WVBS-139C is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFT LCD panel, driver IC, FPC, backlight and capacitive touch screen. The active display area is a 4.3-inch measurement on the diagonal, with a native resolution of 800 * RGB * 480. The characteristics of this product are shown in the following table below.

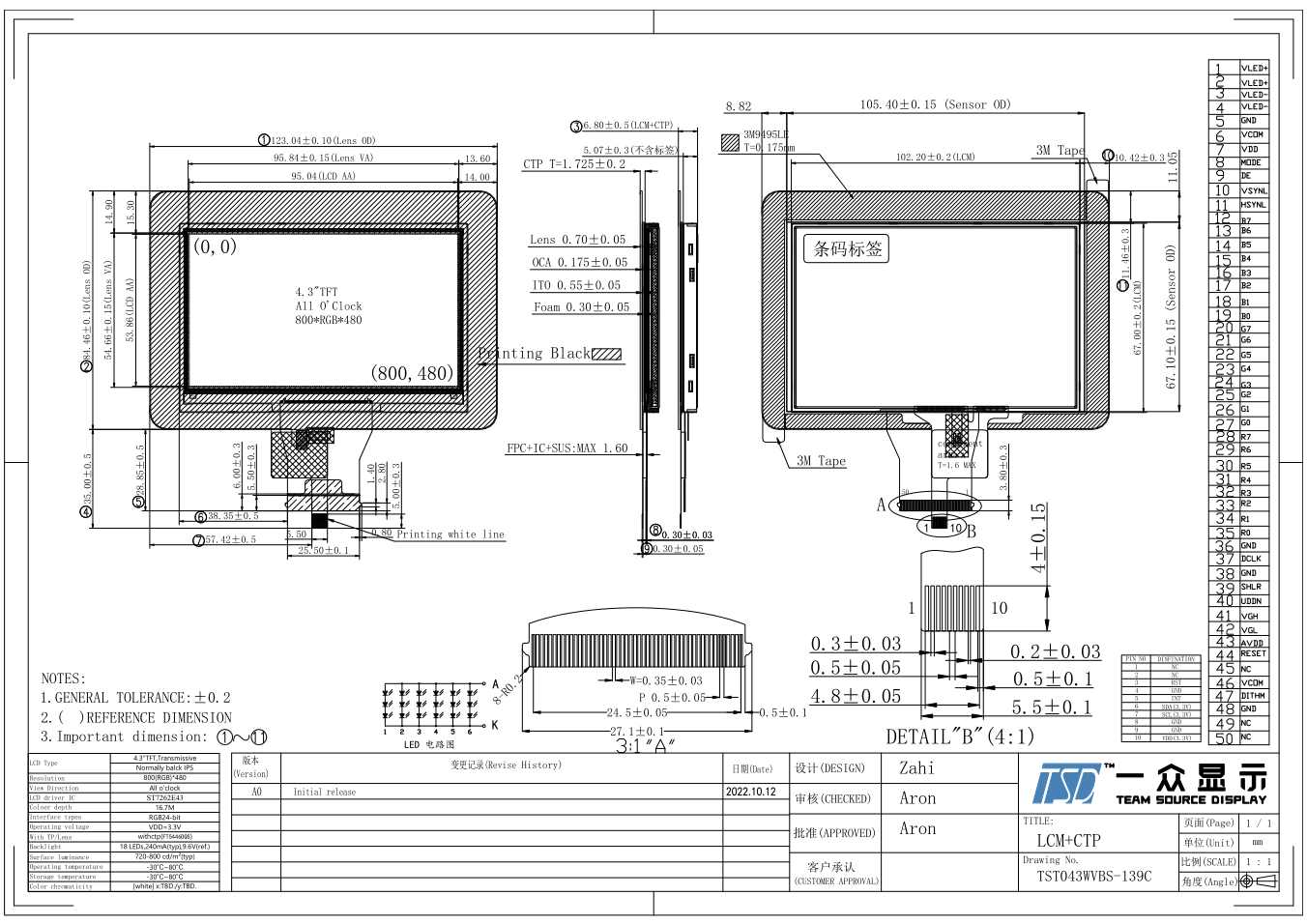

Drawing:

Specification

General Specification
Part No.	TST043WVBS-139C
Display Size(Diagonal)	4.3 inch
LCD type	TFT,Transmissive,Normally black
Resolution	800x (RGB) × 480
View Direction	ALL o’clock
Module Outline	123.040(H) x 84.46(V) x6.80(T)
Active Area	95.04 (H) x 53.86 V)
Viewing Area	ALL o’clock
Back light	18 LEDs，240mA
Driver IC	ST7262E43
Interface	RGB24-bit
Weight(g)	TBD
Power Consumption(w)	Panel	TBD(Typ.)
	B/L system	TBD(Typ.)
Operating Temperature	-20～70
Storage Temperature	-30～80

Pins Description
Pin No.	Symbol	Description
1	V LED+	Power for LED backlight (Anode)
2	V LED+	Power for LED backlight (Anode)
3	V LED-	Power for LED backlight (Cathode)
4	V LED-	Power for LED backlight (Cathode)
5	GND	Power ground
6	V COM	Common voltage
7	V DD	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	D E	Data Input Enable
10	VSYNC	Vertical Sync Input
11	H SYNC	Horizontal Sync Input
12	B 7	Blue data(MSB)
13	B 6	Blue data
14	B 5	Blue data
15	B 4	Blue data
16	B 3	Blue data
17	B 2	Blue data
18	B 1	Blue data
19	B 0	Blue data(LSB)
20	G 7	Green data(MSB)
21	G 6	Green data
22	G 5	Green data
23	G 4	Green data
24	G 3	Green data
25	G 2	Green data
26	G 1	Green data
27	G 0	Green data
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data
36	GND	Power Ground
37	DCLK	Sample clock
38	GND	Power Ground
39	SHLR	Left / right selection
40	UDDN	Up/down selection
41	V GH	Gate ON Voltage
42	V GL	Gate OFF Voltage
43	AV DD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC	No connection
46	V COM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection
