Description:

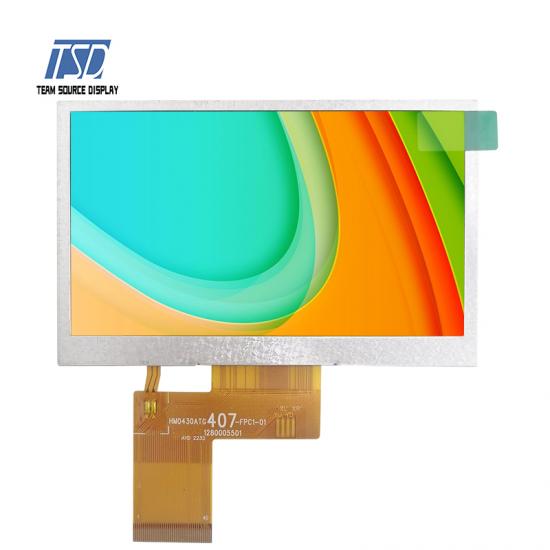

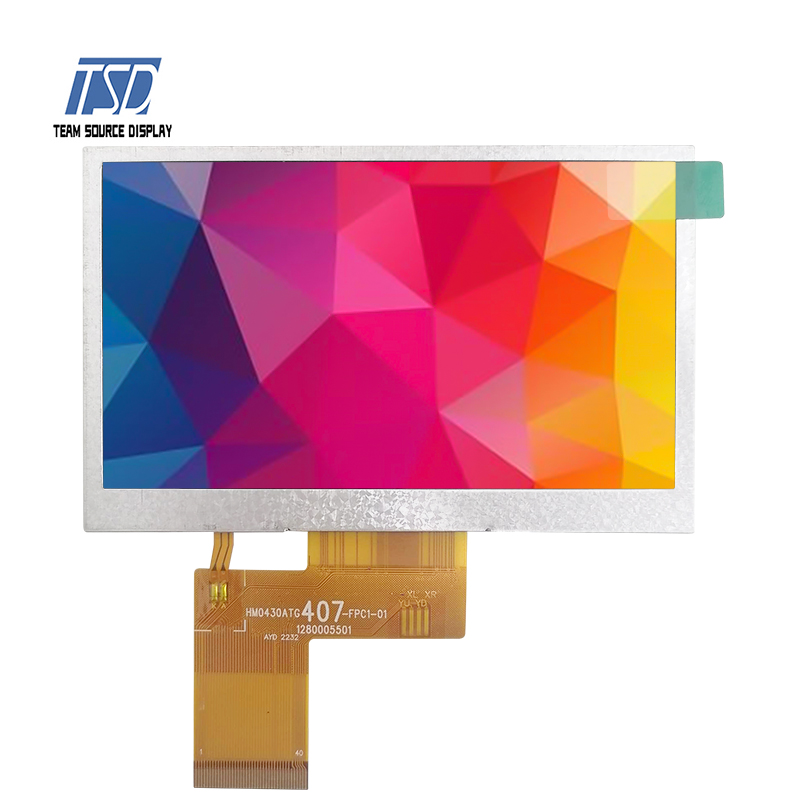

TST043WQBS-35P is 4.3 inch 480x272 resolution RGB pins LCD display module with resistive touch panel in industrial grade, It could be used for HMI and access control. The brightness is 280 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.5V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is ST7282, The viewing angle is 6 o'clock, color depth is 16.7M, white backlight and transmissive mode.

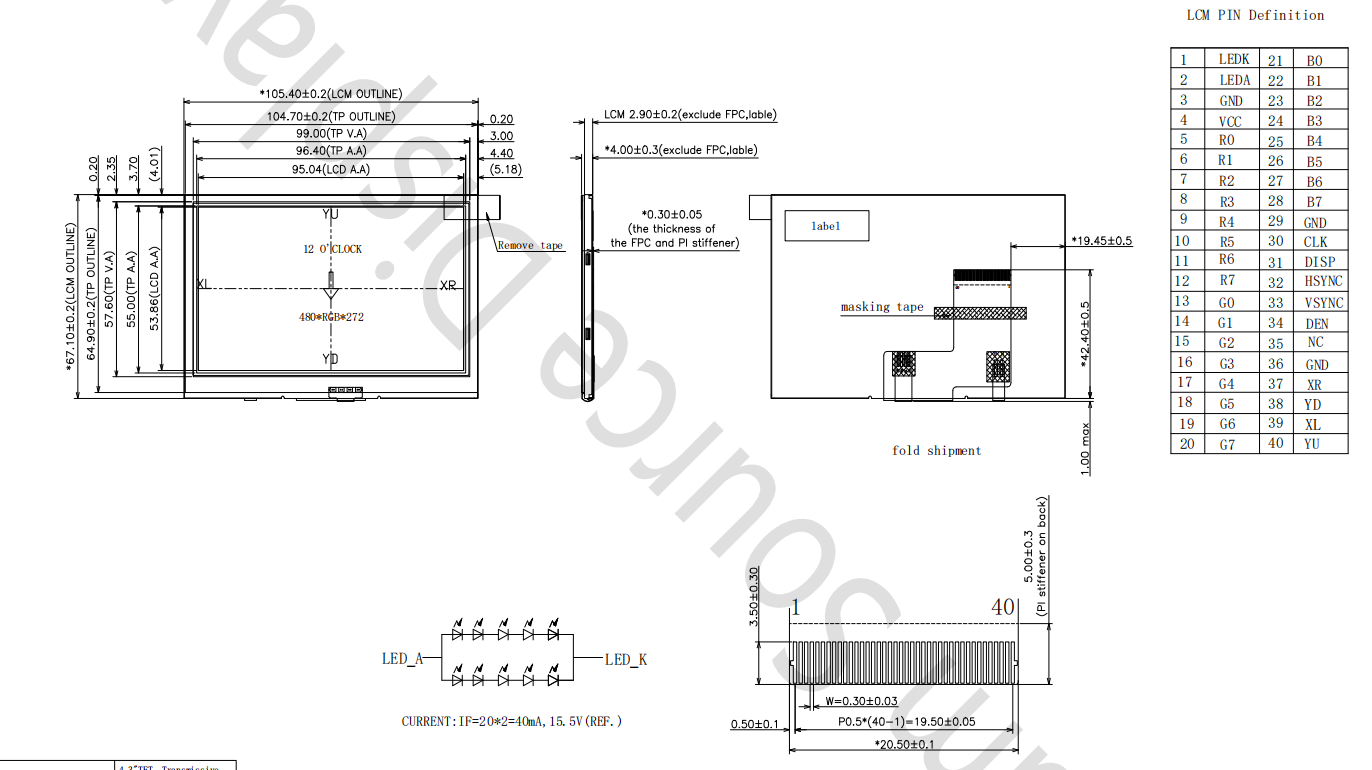

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQBS-35P | |
| Outline Dimension(mm) | 105.50x67.10x4.0 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | with RTP | |
| Driver IC | ST7282 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB interface |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Cathod of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VCC | Common voltage |
| 5-12 | R0-R7 | Red data |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data |
| 29 | GND | Power ground |
| 30 | DCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYN | Horizontal sync signal |
| 33 | VSYN | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37 | XR | The touch panel X right pin |
| 38 | YD | The touch panel Y down pin |
| 39 | XL | The touch panel X left pin |
| 40 | YU | The touch panel Y up pin |
Applications:
For our 4.3 inch 480x272 TFT LCD display model TST043WQBS-35P, it is suitable for smart home product.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
