Description:

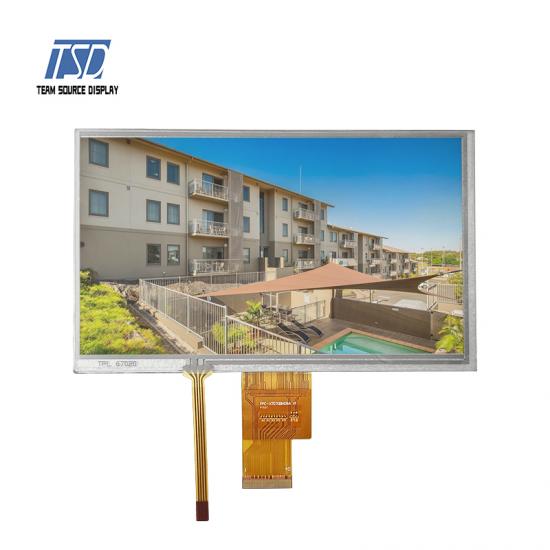

TST070WSBE-120P is 7 inch 1024*600 resolution LCD display with LVDS interface, standard brightness is 1000cd/m2. For this 7 inch TFT LCD module, LCD IC is EK79001HF+EK73215BCGA, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module is with capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.
| Specification | ||
| Part No. | TST070WSBE-120P | |
| Outline Dimension(mm) |
179.8(H) x 111.3(V) x5.27(T)
|
|
| Active Area(mm) | 154.21 (H) x 85.92 V) | |
| Resolution(dots) | 1024x (RGB) × 600 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1024RGB(H)xRGBx600(V) | |
| Touch panel | with RTP | |
| Driver IC | EK79001HF+EK73215BCGA | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 7 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | 1.728(Typ.) | |
| Interface | RGB24-bits |
|
| Module lifetime(Hours) | 50,000-100,000 | |
Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | VLED+ | Power for LED backlight (Anode) |
| 2 | VLED+ | Power for LED backlight (Anode) |
| 3 | VLED- | Power for LED backlight (Cathode) |
| 4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | Vcom |
Common voltage |
| 7 | VDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VSYNC | Vertical Sync Input |
| 11 | HSYNC | Horizontal Sync Input |
| 12-19 | B7-B0 | Blue data(MSB) |
| 20-27 | G7-G0 | Green data(MSB) |
| 28-35 | R7-R0 | Red data(MSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | SHLR | Left / right selection |
| 40 | UPDN | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connect |
| 46 | Vcom | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Applications:
For our 7 inch LCD display TST070WSBE-120P, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.7'' 1024*600 res. with 50 pins RGB interface with RTP
2. IPS lcd full viewing angle
3.high brightness up to 1000nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
