Description:

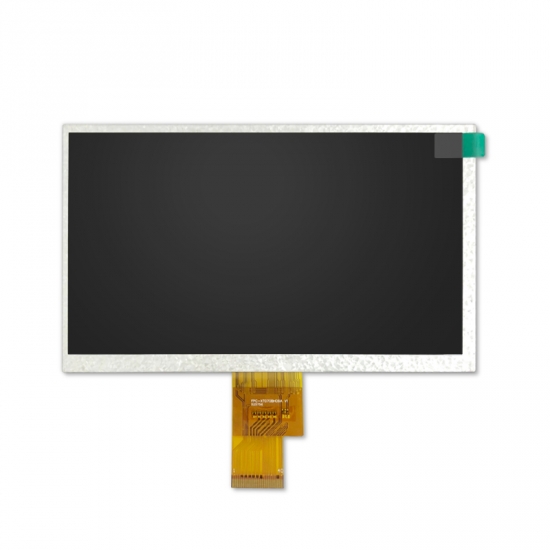

TST070WSBH-21 is 7 inch 1024*600 resolution LCD display with LVDS interface, standard brightness is 450cd/m2. For this 7 inch TFT LCD module, Driver IC is EK79001+EK73215, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.
| Specification | ||
| Part No. | TST070WSBH-21 | |
| Outline Dimension(mm) | 164.9*100*3.5 | |
| Active Area(mm) | 154.21*85.92 | |
| Resolution(dots) | 1024*RGB*600 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1024RGB(H)xRGBx600(V) | |
| Touch panel | without | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,IPS, 7.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Brightness | 450 cd/m2 | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | LVDS | |
| Module lifetime(Hours) | 50,000-100,000 | |

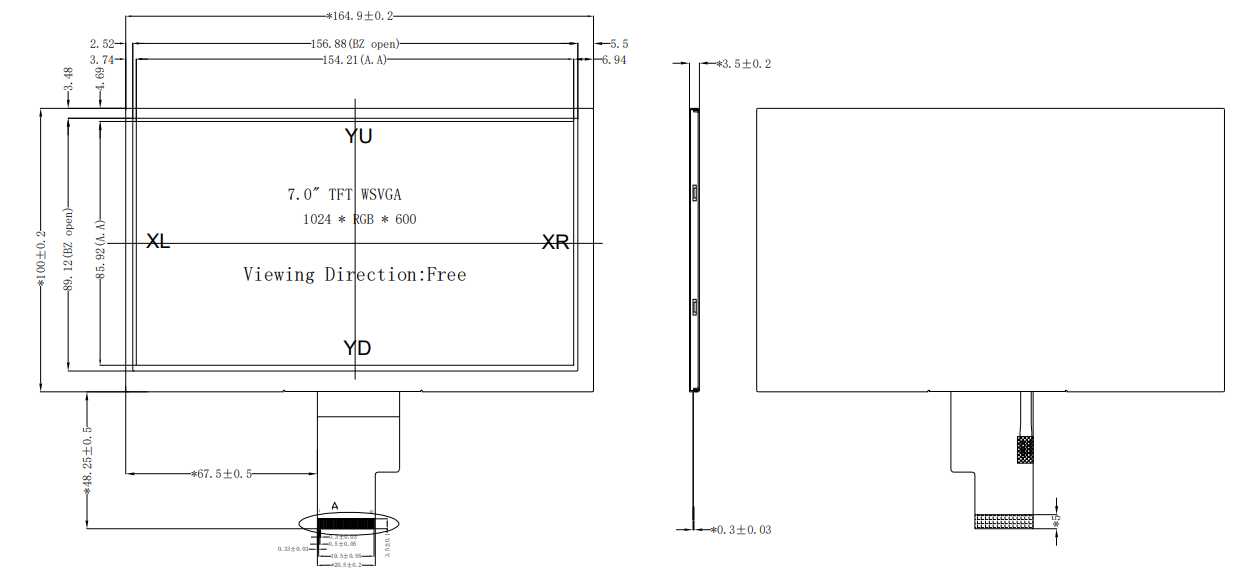

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | VCOM | Common voltage |
| 2 | VDD | Digital Power |
| 3 | VDD | Digital Power |
| 4 | NC | No connect |
| 5 | RESET | Global reset pin |
| 6 | STBYB |
Standby mode, Normally pulled high STBYB = “1” , normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z |
| 7 | GND | Power ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXINO+ | LVDS differential data input |
| 10 | GND | Power ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | LVDS differential data input |
| 13 | GND | Power ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | LVDS differential data input |
| 16 | GND | Power ground |
| 17 | RXCLKIN- | -LVDS differential data input |
| 18 | RXCLKIN+ | LVDS differential data input |
| 19 | GND | Power ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | LVDS differential data input |
| 22 | GND | Power ground |
| 23 | NC | No connect |
| 24 | NC | No connect |
| 25 | GND | Power ground |
| 26 | NC | No connect |
| 27 | DIMo | Backlight CABC controller signal output |
| 28 | SELB | 6bit/8bit mode select |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Power ground |
| 31 | LED- | LED Cathode |
| 32 | LED- | LED Cathode |
| 33 | L/R | Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35 | VGL | Gate OFF Voltage |
| 36 | CABCEN1 | CABC H/W enable |
| 37 | CABCENO | CABC H/W enable |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | LED Anode |
| 40 | LED+ | LED Anode |
Applications:
For our 7 inch LCD displayTST070WSBH-21, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.7 1024*600 res. with 40 pins LVDS interface
2. IPS lcd full viewing angle
3.high brightness up to 450nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
