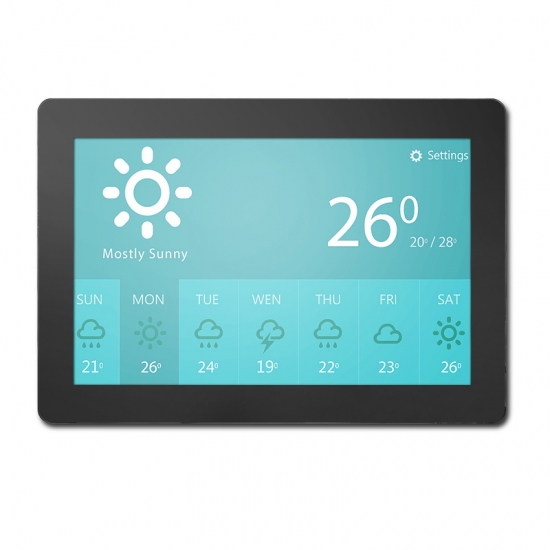

TSD High brightness 1024x600 resolution 7 inch IPS LCD panel with Capacitive touch screen

  • Model Name: TST070WSBH-21C
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1024*600
  • Viewing angle: IPS all viewing angle
  • Brightness: 800 cd/m2
  • Driver IC: EK79001+EK73215
  • Interface: LVDS
  • Touch Screen: with
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST070WSBE-66C is 7 inch 1024*600 resolution LCD display with LVDS interface, standard brightness is 800cd/m2. For this 7 inch TFT LCD module,  Driver IC is EK79001+EK73215, CTP IC is FT5446. viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module is with capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.





Specification
Part No. TST070WSBE-66C
Outline Dimension(mm) 190.08*121.92*5.38
Active Area(mm) 154.21*85.92
Resolution(dots) 1024*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel with CTP
IC
EK79001+EK73215
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Brightness 800 cd/m2
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000



Drawing:

Interface Description:

Pin No.  Symbol Description
1 VCOM Common voltage
2 VDD Digital Power
3 VDD Digital Power
4 NC No connect
5 RESET Global reset pin
6 STBYB

Standby mode, Normally pulled high

STBYB = “1” , normal operation

STBYB = “0”, timing controller, source

driver will turn off, all output are High-Z

7 GND Power ground
8 RXIN0- -LVDS differential data input
9 RXINO+ LVDS differential data input
10 GND Power ground
11 RXIN1- -LVDS differential data input
12 RXIN1+ LVDS differential data input
13 GND Power ground
14 RXIN2- -LVDS differential data input
15 RXIN2+ LVDS differential data input
16 GND Power ground
17 RXCLKIN- -LVDS differential data input
18 RXCLKIN+ LVDS differential data input
19 GND Power ground
20 RXIN3- -LVDS differential data input
21 RXIN3+ LVDS differential data input
22 GND Power ground
23 NC No connect
24 NC No connect
25 GND Power ground
26 NC No connect
27 NC No connect
28 SELB 6bit/8bit mode select
29 AVDD Power for Analog Circuit
30 GND Power ground
31 LED- LED Cathode
32 LED- LED Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Gate OFF Voltage
36 NC No connect
37 NC No connect
38 VGH Gate ON Voltage
39 LED+ LED Anode
40 LED+ LED Anode

Applications:



For our 7 inch LCD display TST070WSBE-66C, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.7 1024*600 res. with 40 pins LVDS interface

2. IPS lcd full viewing angle

3.high brightness up to 800nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
