Description:
TST070WUBH-149 is 7 inch 1200*1920 resolution LCD display with MIPI interface, standard brightness is 300cd/m2. For this 7 inch TFT LCD module, Driver IC is HX8279D, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in Handheld device, Pos Machine.Scanner.
| Specification | ||
| Part No. | TST070WUBH-149 | |
| Outline Dimension(mm) | 99.85x161.7x2.6 | |
| Active Area(mm) | 94.2x150.72 | |
| Resolution(dots) | 800*RGB*1280 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1200RGB(H)xRGBx1920(V) | |
| Touch panel | without touch | |
| Dot Pitch | 0.03925(W)x0.11775(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black, IPS, 7.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Brightness | 300 cd/m2 | |
| Interface | MIPI | |
| Module lifetime(Hours) | 50,000-100,000 | |

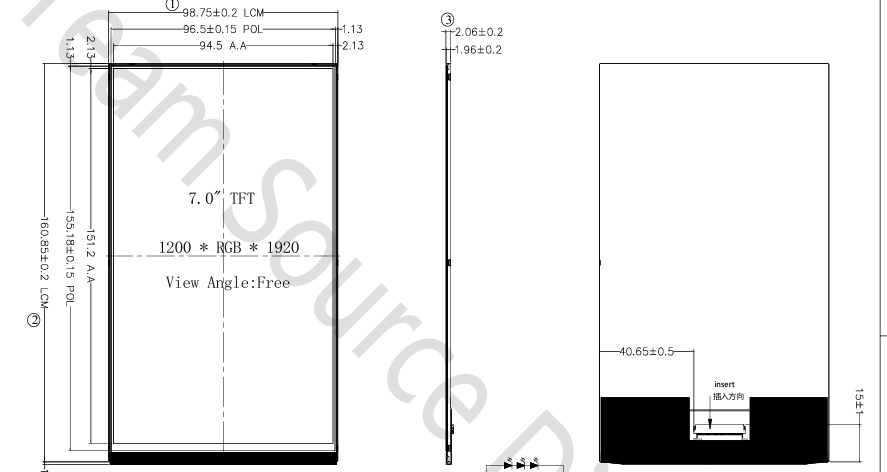

Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | VCOM | Common Voltage(-1.7560.3VNo comnect |
| 2 | VDDIN | Power supply +2.8-3.3V |
| 3 | VDDIN | Power supply +2.8-3.3V |
| 4 | GND | System Ground. (0v) |
| 5 | RST | Reset input signal |
| 6 | NC | No connect |
| 7 | GND | System Ground. (0v) |
| 8 | MIPI DON | MlPI data cathode input pin |
| 9 | MIPI DOP | MiPl data aothod input pin |
| 10 | GND | System Ground. (0v) |
| 11 | MIPI D1N | MlPl clock cathode input pin |
| 12 | MIPI D1P | MiPl data aothod input pin |
| 13 | GND | System Ground. (0v) |
| 14 | MIPI CKN | MlPl clock cathode input pin |
| 15 | MIPI CKP | MiPl data aothod input pin |
| 16 | GND | Ground |
| 17 | MIPI D2N | MlPl clock cathode input pin |
| 18 | MIPI D2P | MlPI data aothod input pin |
| 19 | GND | Ground |
| 20 | MIPI D3N | MIPI-DSI data Lane 2 positive-end input/output pin |
| 21 | MIPI D3P | MIPI-DSI data Lane 2 nesitive-end input/output pin |
| 22 | GND | Ground |
| 23-24 | NC | No connect |
| 25 | GND | Ground |
| 26 | NC | No connect |
| 27 | PWMO | PWM control signal for LED driver(CABC) |
| 28 | NC | No connect |
| 29 | VCL | Output voltage pin/No connect |
| 30 | GND | System Ground. (ov) |
| 31-32 | LED- | Backlight k Cathode input pin. |
| 33-34 | NC | No connect |
| 35 | AVEE | Analog supply negative voltage/No connect |
| 36-37 | NC | No connect |
| 38 | AVDD | Analog supply positive voltage/No connect |
| 3.9-40 | LED+ | Backlight A Aothod input pin. |
Applications:
For our 7 inch LCD display TST070WUBH-149, it's widely using in handheld device, Consumer electronics products.POS machine etc.
Product Features:
1. 7inch 1200*1920res. with 40pins MIPI interface
2. IPS lcd : full viewing angle
3.high brightness up to 300nits
4.Vertical lcd type
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
