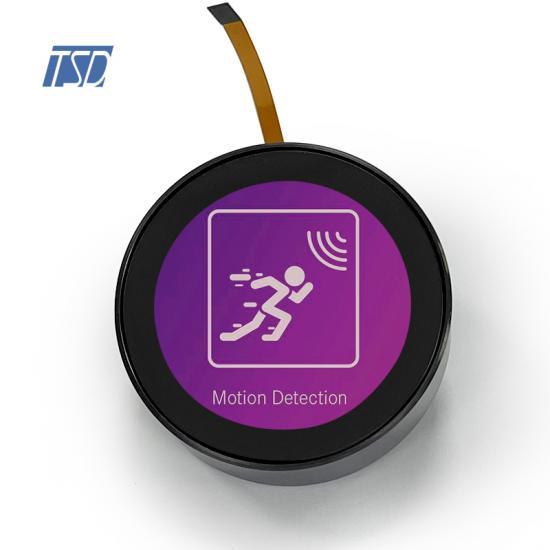

TSD 1.3 inch round smart module knob display

 Model Name:TSS0130001

LCD Type:Normally white,TN

Resolution: 240(RGB)*240

Viewing angle:All o'clock

Brightness:250 cd/m2(typ)

Interface:UART

Touch Screen:No

Operating Temperature: -20℃~70℃

Storage Temperature:  -30℃~85℃

Inquiry now Data sheet





Parameter Summary



1）CPU：CPU ARM Cortex-M0

2）Storage：128Mbit norFlash(available to custom)

3）Power supply： DC 5V，500mA

4）Operation Type: Rotate, Press

5 )  Ambient light: RGB three-color light circle at the bottom, can be customized

6 )  Appearance: aluminum alloy car anodized sandblasting, black/white optional,

7）Storage temperature：-30~80°C

8）Operating temperature：-20~70°C

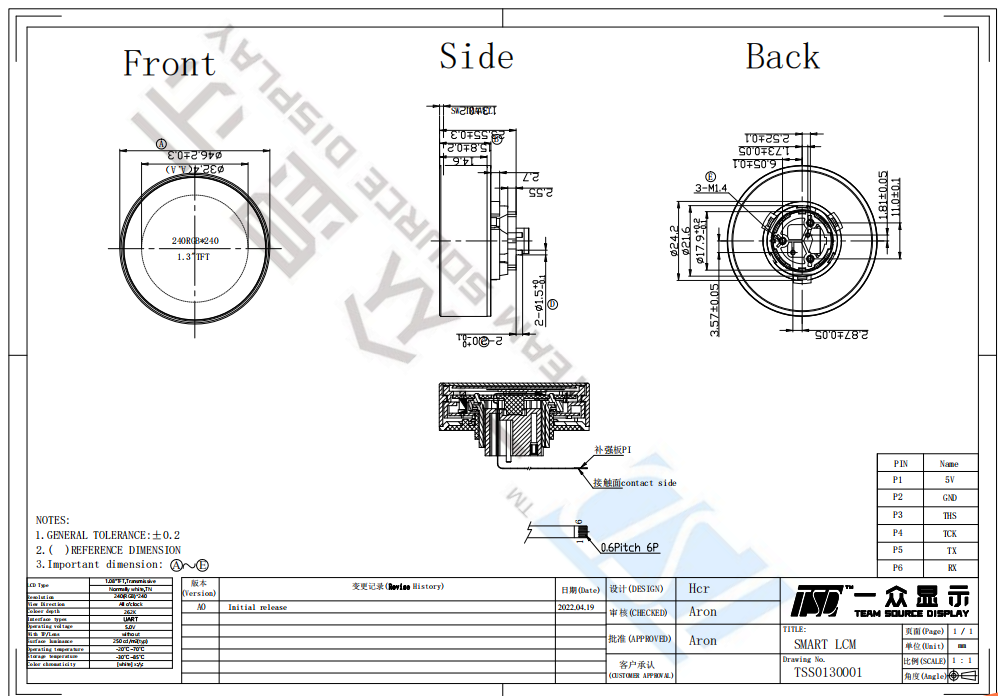

Drawing:



Specifications:





General Specification
Part No.	TST01330001
Resolution(dots)	240(RGB)*240
Operating temperature(°C)	-20 ~ +70°C
Storage temperature(°C)	-30 ~ +80°C
Coloer depth	262K
Touch panel	Without
Operating voltage	5.0V
Display mode	1.08"TFT,Transmissive,Normally white,TN
Surface luminance	250 cd/m2(typ)
View direction	All o'clock
Weight(g)	TBD
Power Consumption(w)	Panel	TBD(Typ.)
	B/L system	TBD(Typ.)
Interface	UART
Module lifetime(Hours)	50,000-100,000





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
