TSD 1024×600 res. 7 inch IPS TFT LCD Display with 1500nits RGB interface

  • Model Name: TST070WSBH-111B
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 1024*600
  • Viewing angle: IPS all viewing angle
  • Brightness: 1500 cd/m2
  • Driver IC: HX8282-A&HX8696-A
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST070WSBH-111B is 7 inch 1024*600 resolution LCD display with RGB interface, standard brightness is 1500cd/m2. For this 7 inch TFT LCD module,  Driver IC is HX8282-A&HX8696-A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in industrial grade application.



Specification
Part No. TST070WSBH-111B
Outline Dimension(mm) 164.9*100*3.5
Active Area(mm) 154.21*85.92
Resolution(dots) 1024*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Brightness 1000 cd/m2
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface RGB
Module lifetime(Hours) 50,000-100,000



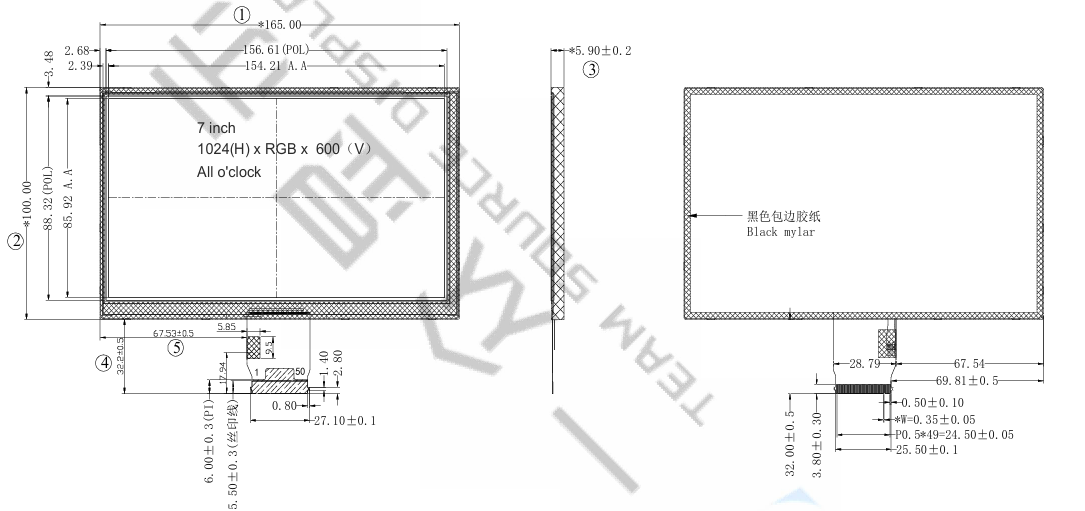

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Power ground
6 Vcom

Common voltage

7 VDD Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VSYNC Vertical Sync Input
11 HSYNC Horizontal Sync Input
12-19 B7-B0 Blue data(MSB)
20-27 G7-G0 Green data(MSB)
28-35 R7-R0 Red data(MSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 SHLR Left / right selection
40 UPDN Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connect
46 Vcom Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49 NC No connection
50 NC No connection

Applications:



For our 7 inch LCD display TST070WSBH-111B, it's widely using in industrial product, Industrial equipment and instruments can be used.



Product Features:

1.7 1024*600 res. with 50 pins RGB interface

2. IPS lcd full viewing angle

3.high brightness up to 1500nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
