TSD 800x480 resolution 7 inch lcd display with serial UART interface panel

  • Model Name: ProLCD-T070N01
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness: 800 cd/m2
  • Driver IC: EK9716BD&EK73002ACGB
  • Interface: UART
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

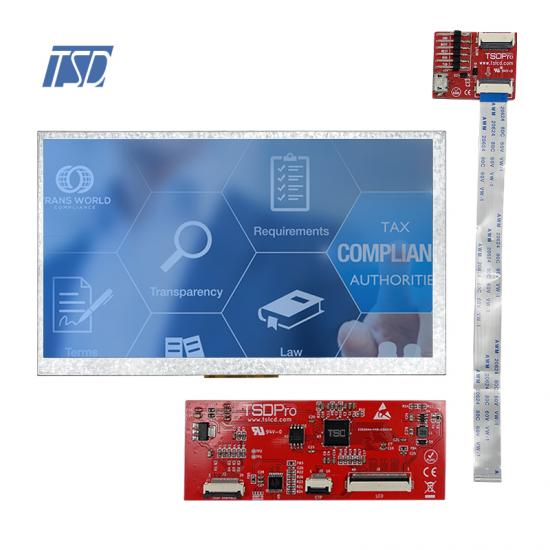

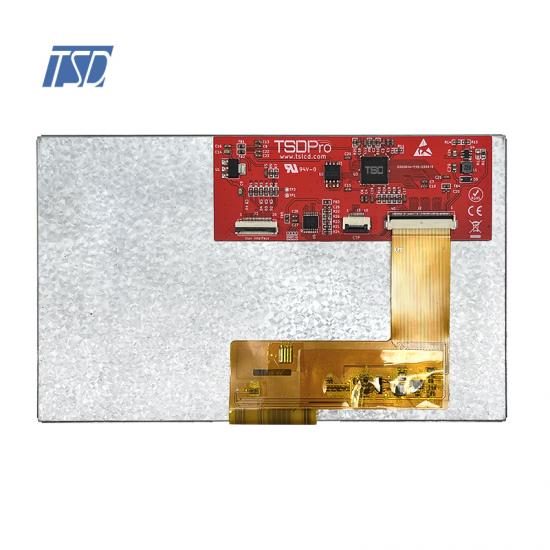

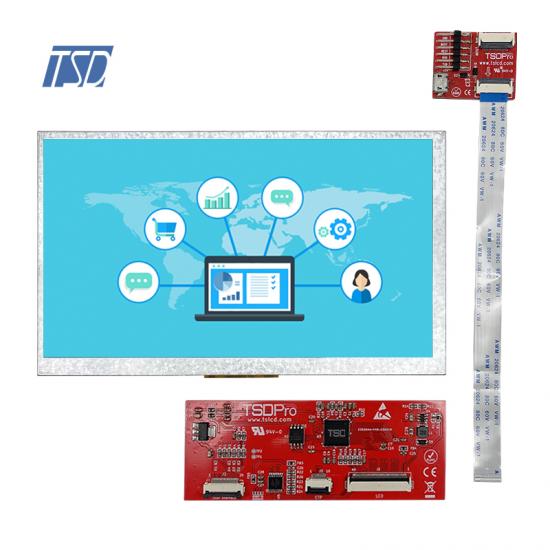

ProLCD-T070N01 is 7 inch 800x480 resolution TFT lcd display with serial UART interface panel, it's TN display with 12 'o'clock viewing angle. TSD could also make the customized design basing on IPS solution. The backlight design for this 7 inch LCD is 30 LEDs, 200mA, typical voltage is 9.6V. Outline dimension is 164.90(W)x100.0(H)x4.4(D)mm, Active area is 153.84(W) x 85.63(H)mm. And the working temperature is -20 ~ +70°C, storage temperature is -30 ~ +80°C.



Serial screen, a configurable secondary development of intelligent serial control display, refers to a TFT color LCD display control module with serial communication, which can be connected to external equipment such as PLC, frequency converter, temperature control instrument, and data acquisition module. , use the display screen to display relevant data,PassWrite parameters or enter operating instructions through input units such as touch screens, buttons, and mice, thereby enabling information interaction between the user and the machine.wideIt is widely used in various display fields such as industrial automation, smart home appliances, transportation rails, data computer rooms, charging piles, power medical, national defense and security, and shared equipment.

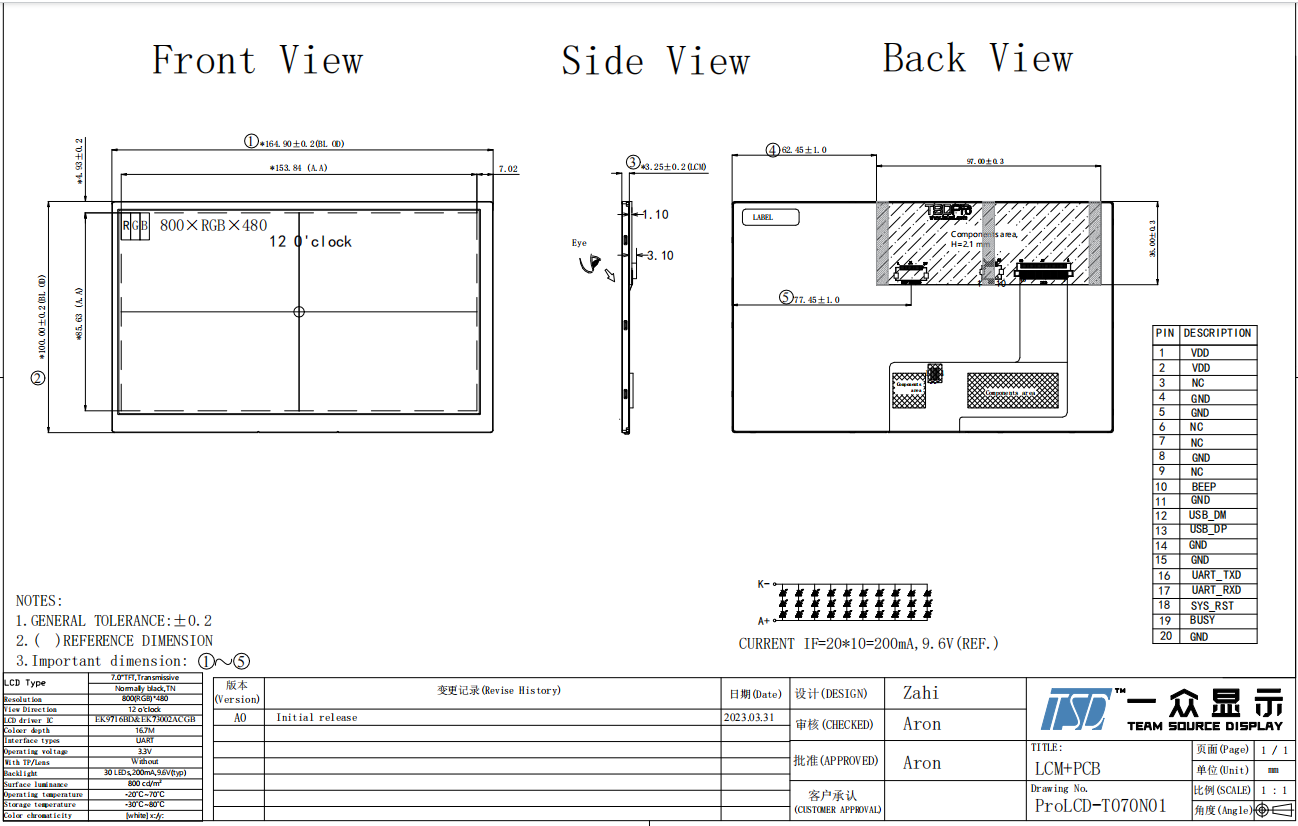

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T070N01
Outline Dimension(mm)

164.90(W)x100.0(H)x4.4(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots)  800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800RGB(H)xRGBx480V)
Touch panel  without
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
Display mode Normal white, TN,7 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP Buzzer output
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



With the rapid development of the smart home industry, the serial screen industry has been recognized by the majority of electrical appliance manufacturers and users due to its advantages of low cost and high performance.


For example, the following common products are popual in UART solutions:
Smart home appliances: smart home, household water purifier, smart toilet, massage chair, microwave oven, coffee machine, towel dryer, range hood, Gas purifiers, water heaters, fascia guns, home energy storage equipment, etc.
