TSD 2.4 Inch TFT lcd display 240*320 with Uart Interface Transmissive ProLCD Transmissive TFT LCD Module

  • Model Name: ProLCD-T024P01
  • LCD Type: 2.4 inch TFT LCD display
  • Resolution: 240x320
  • Viewing angle: 6 o'clock
  • Brightness: 300 cd/m2
  • Driver IC: ST7789V
  • Interface: UART
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:

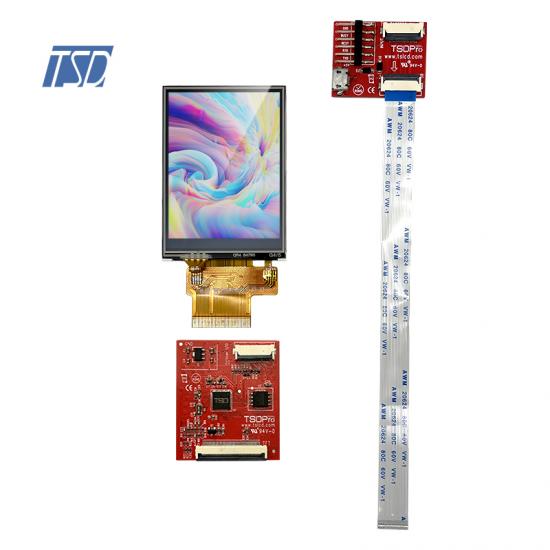

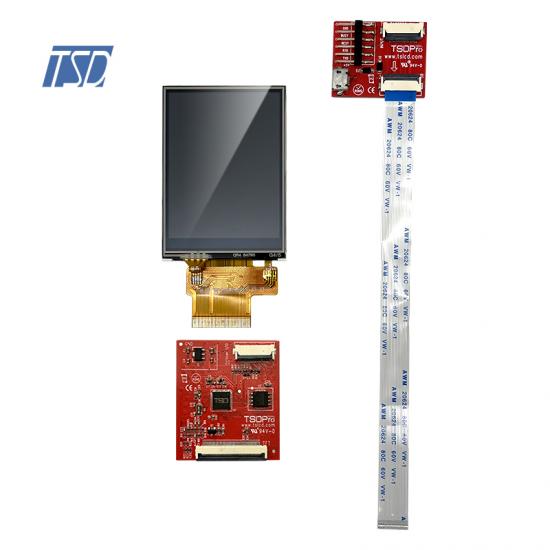

ProLCD-T024P01 is 2.4 inch QVGA 240x320 resolution color LCD display with resistive touch panel (RTP), interface type is UART serial port, this small size display is transmissive display, normally white, driver IC is ST7789V, viewing direction is 6 o'clock, widely using for industrial devices.



The serial port screen mainly uses serial port communication to solve the problem of communication between the user operation interface program and the customer control panel to achieve the purpose of controlling the machine. The main function is to liberate users from the complex process of: complex interface software development + complex hardware solutions + hardware production cost control, and use the serial port screen solution provided by Team Source Display (TSD) is to achieve extremely fast, simple, efficient and high-efficiency Cost-effective solutions achieve the purpose of rapid product development, rapid product launch, and seizing market opportunities.

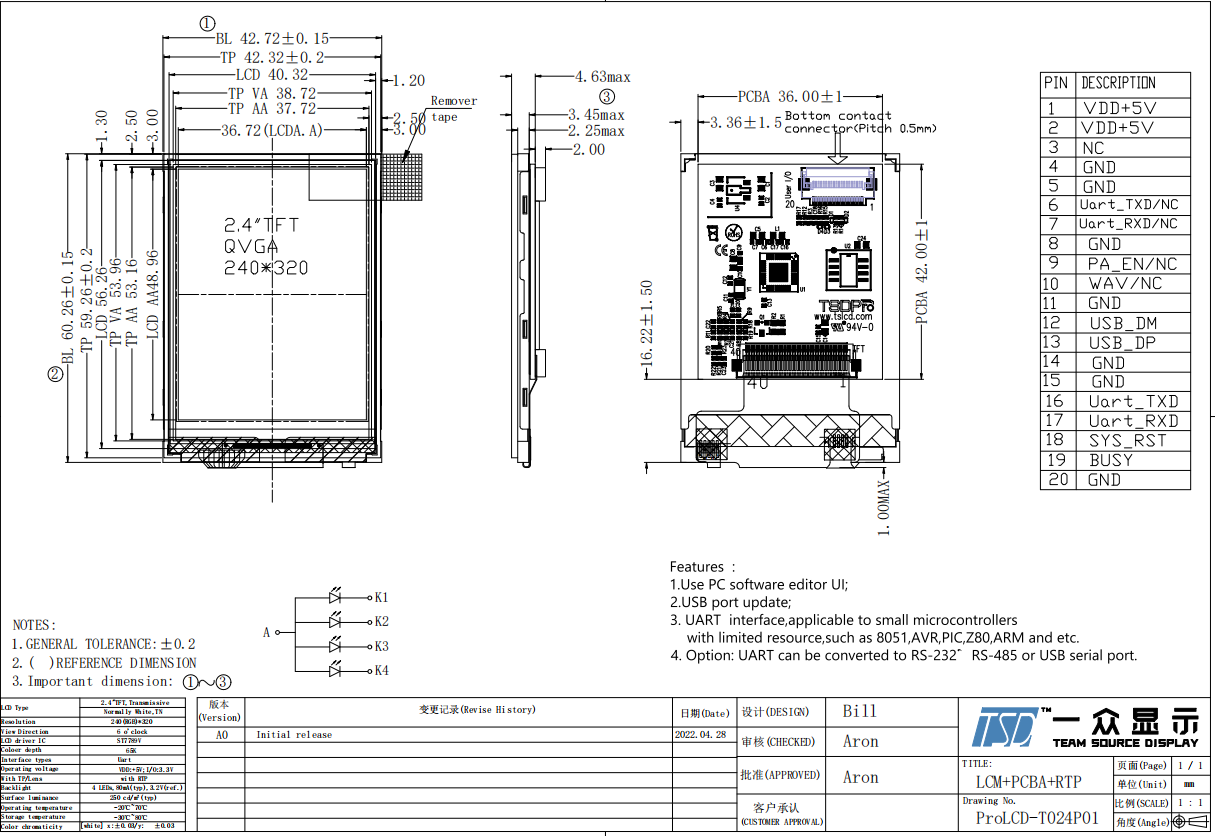

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T024P01
Outline Dimension(mm)

42.72(W)x60.26(H)x4.63(D)

Active Area(mm) 36.72(W) x 48.96(H)
Resolution(dots) 240x (RGB) × 320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx320V)
Touch panel  with RTP
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 2.4 inch TFT
Surface treatment Antiglare
View direction  6 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000



Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 UART_TXD/NC Serial Communication Sends Data Output Pin. Do not Connect if you don't use it.
7 UART_RXD/NC Serial Communication Receives Data Input Pin. Do not connect if you don't use it.
8 GND Power ground
9 PA_EN/NC Power Amplification Enable Pin. Do not connect if you don't use it.
10 WAV/NC Audio Output Pin. Don not connect if you don't use it.
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer.

5. Sports Equipment: running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS.

8. Security Products: elevator controller, electronic indicator.
