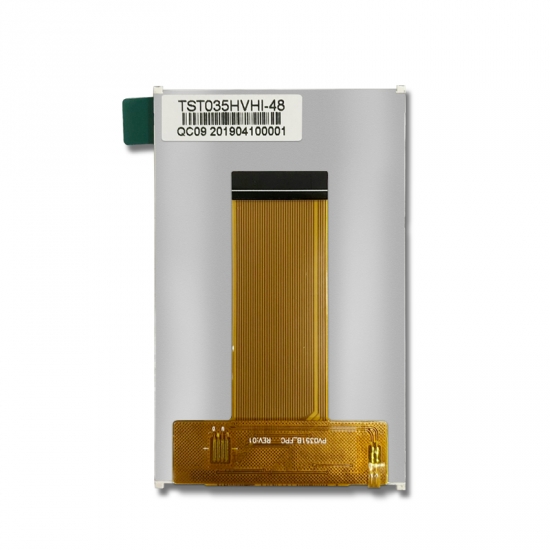

TSD 3.5 inch 320x480 resolution HVGA ips lcd module with RGB interface

  • Model Name: TST035HVHI-48
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x480
  • Viewing angle: All o'clock
  • Brightness: 350 cd/m2
  • Driver IC: ILI9488
  • Interface: SPI+RGB/SPI interface
  • Touch Screen: could be with capacitive or resitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST035HVHI-48 is 3.5 inch 320x240 resolution SPI+RGB/SPI interface LCD display module, could be with capacitive touch panel or resistive touch panel. Backlight is 350 nits, White LEDs is 6, backlight current is 120mA and backlight voltage is 13.2V, which could be customized. For this 3.5 inch TFT LCD module, driver IC is ILI9488, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

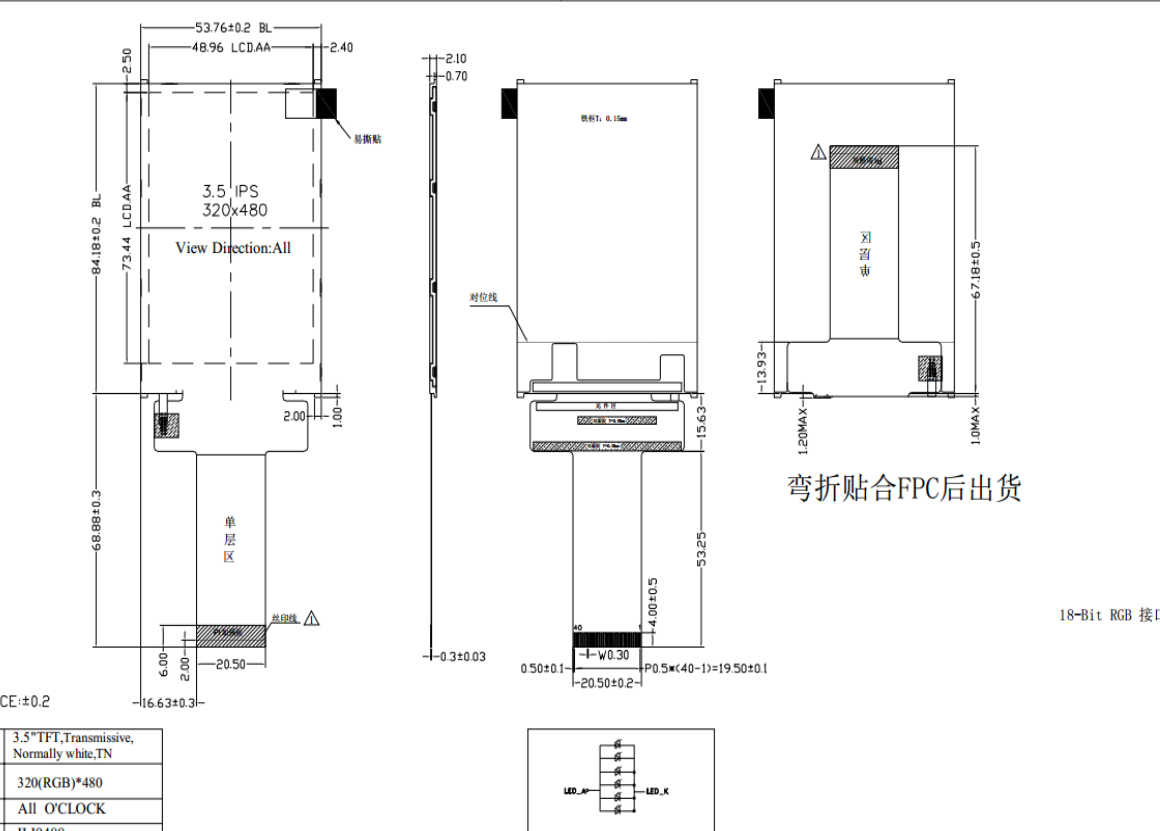

Drawing:



3.5 inc3.5 inch lcd display


Specifications:



General Specification
Part No.  TST035HVHI-48
Outline Dimension(mm)  53.76x84.18x2.1
Active Area(mm) 48.96x73.44
Resolution(dots) 320x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320(H)xRGBx480(V)
Touch panel  could be with RTP or CTP
Driver IC ILI9488
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface 3SPI/RGB 24 bit
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 GND System Ground. (0V)
2 RESET RESET pin.
3 CS Chip select input pin
4 SCLK Serial Clock
5
IC-ID
N.C.
6 SDI Serial data input bi-direction pin
7 SDO Serial data output
8-25 DB0-DB17 18-Bit RGB interface data bus
26 GND System ground
27 VS Frame synchronizing signal
26-27 HS Line Synchronizing signal
28 NC No connect
29 DOTCLK Dot clock signal
30 ENABLE A data ENABLE input signal
31 GND System ground
32 IOVCC Power supply 1.65-3.2V
33 VCC Power supply 3.0-3.2V
34-37 NC No connect
38 LEDA LED power supply +
39 LEDK LED power supply -
40 NC No connect



Applications:



For our 3.5 inch 320x240 LCD display TST035HVHI-48, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.5" contains 320x480 dots and can display up to 65K colors.
