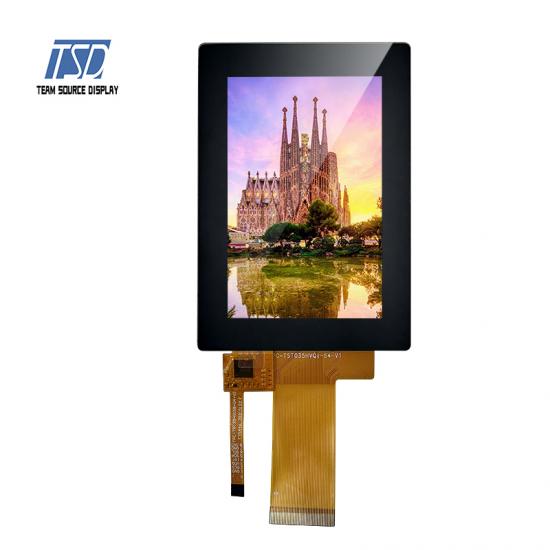

TSD 320x480 3.5 inch ips lcd screen with CTP

  • Model Name: TST035HVQI-100C
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x480
  • Viewing angle: All o'clock
  • Brightness: 380 cd/m2
  • Driver IC: ILI9488
  • Touch IC: FT5446
  • Interface: MCU/SPI/SPI+RGB interface
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST035HVQI-100C is 3.5 inch 320x480 resolution tft module display, it could support three types of interface: MCU/SPI/SPI+RGB. This vertical display could be with standard capacitive or resistive touch panel. Backlight is 380 nits, White LEDs is 8, backlight current is 160mA and backlight voltage is 3.2V, which could be customized. For this 3.5 inch TFT LCD module, driver IC is ILI9488, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

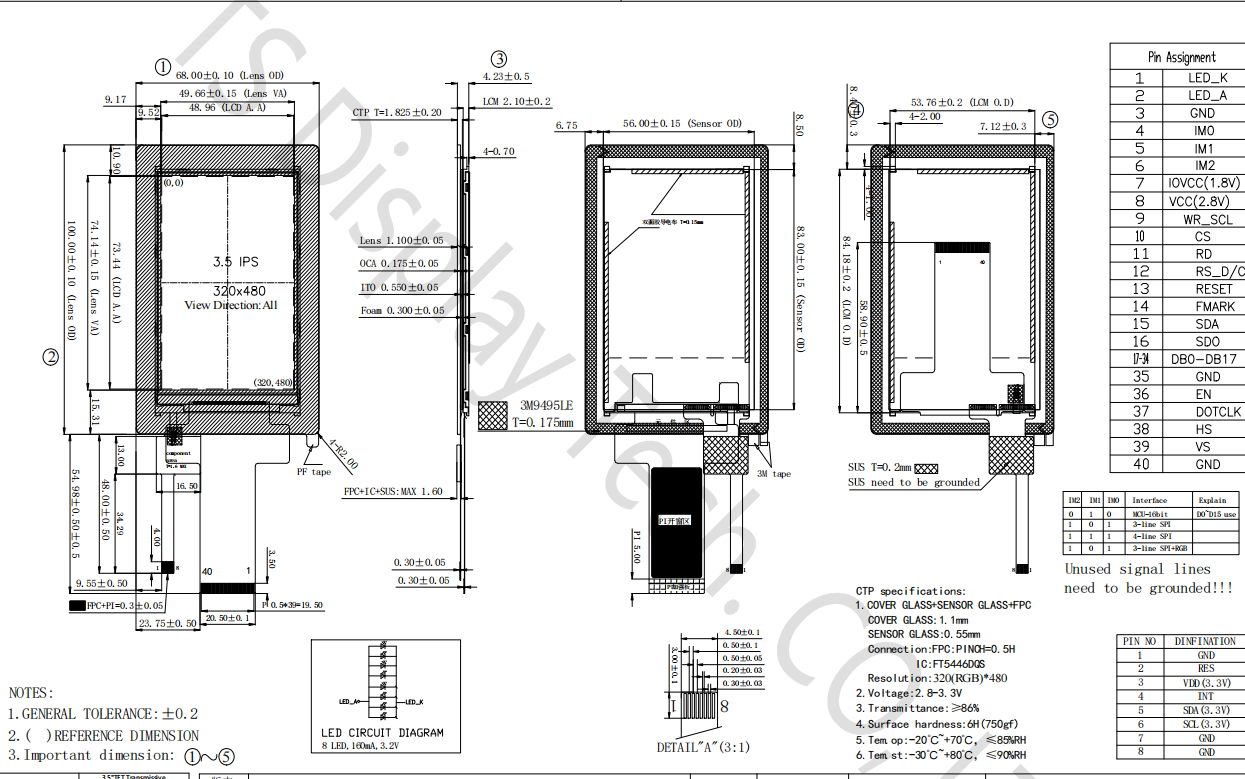

Drawing:



3.5 inch lcd with ctp


Specifications:



General Specification
Part No.  TST035HVQI-100C
Outline Dimension(mm)  68x100x4.23
Active Area(mm) 48.96x73.44
Resolution(dots) 320x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320(H)xRGBx480(V)
Touch panel  with CTP
Driver IC ILI9488
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU/SPI/SPI+RGB
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDA Backlight A Aothod input pin.
3 GND System Ground.(0V)
4-6 IM0-IM2 Interface setting pin
7 IOVCC (1.8V) Voltage input pin for logic I/O +1.8V
8 VCC (2.8V) Powersupply+2.8V~3.3V
9 WR_SCL write signal
10 CS Chip select signal.
11 RD Read signal
12 RS_D/C Data/Command Selection pin
13 RESET Reset input signal
14 FMARK Tearing Effect output signal
15 SDA Serial data input pin
16 SDO Serial data output pin
17-34 DB0-DB17 Data BUS
35 GND System Ground.(0V)
36 ENABLE Data enable
37 DOTCLK Pixel clock
38 HS Horizontal syncsignal
37 VS Vertical syncsignal
40 GND System Ground.(0V)




Applications:



For our 3.5 inch 320x480 LCD display TST035HVQI-100C, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, the brightness could be higher, such as 700 nits.

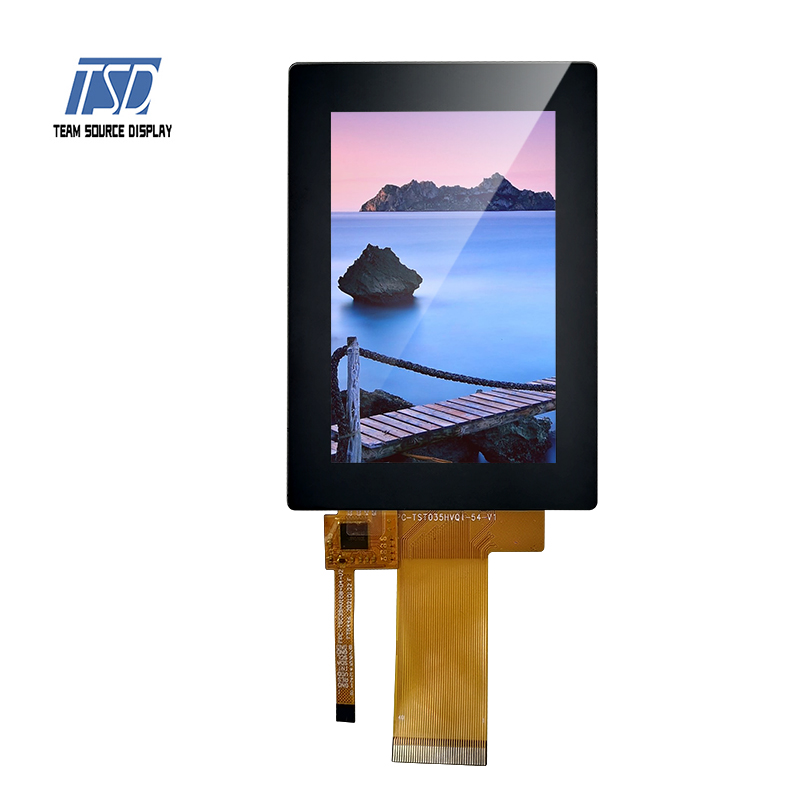

3.5 inch tft lcd module with ctp


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.5" contains 320x480 dots and can display up to 65K colors.
