Description:

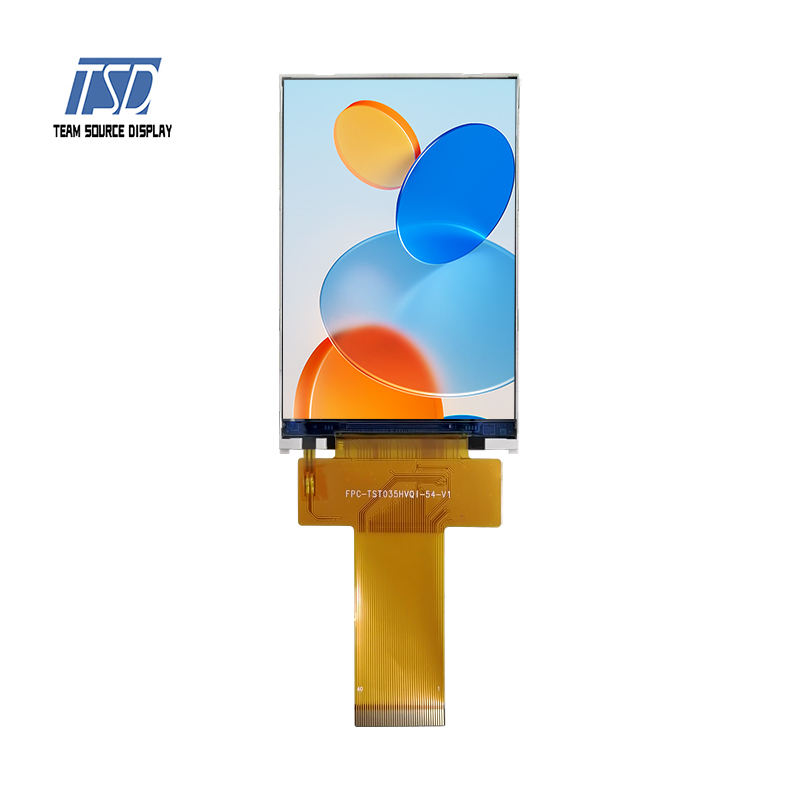

TST035HVQI-54B is 3.5 inch 320x480 resolution MCU/SPI+RGB interface LCD display module, it is vertical display, and could be with standard capacitive or resistive touch panel. Backlight is 700 nits, White LEDs is 8, backlight current is 160mA and backlight voltage is 3.2V, which could be customized. For this 3.5 inch TFT LCD module, driver IC is ILI9488, viewing direction is free, all o'clock, color depth is 65K, white backlight and transmissive mode.

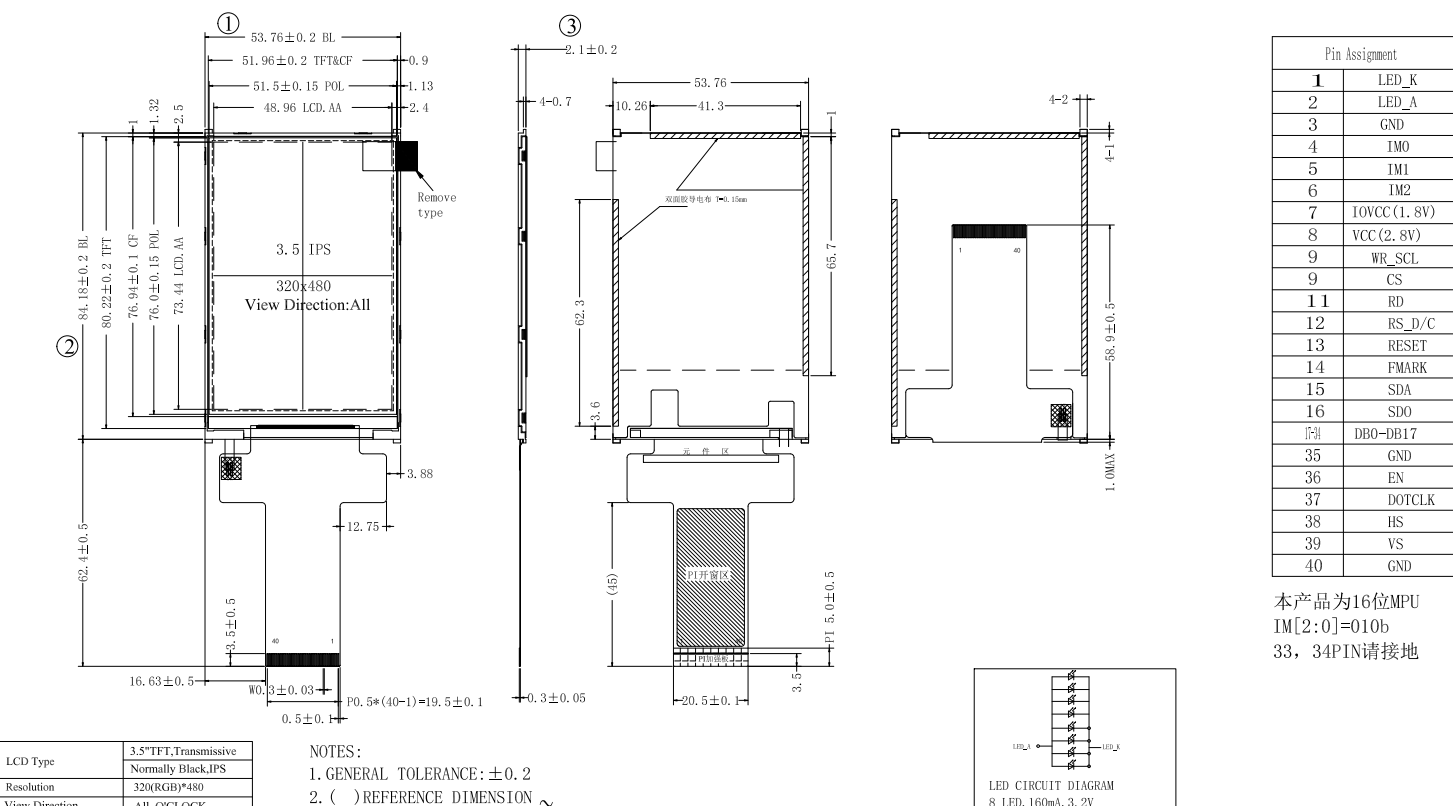

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST035HVQI-54B | |
| Outline Dimension(mm) | 53.76x84.18x2.1 | |
| Active Area(mm) | 48.96x73.44 | |
| Resolution(dots) | 320x480 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 320(H)xRGBx480(V) | |
| Touch panel | with RTP or CTP | |
| Driver IC | ILI9488 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 3.5 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU/SPI+RGB |
|
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | |
| Pin No. | Symbol |
| 1 | LEDK |
| 2 | LEDA |
| 3 | GND |
| 4-6 | IM0-IM2 |
| 7 | IOVCC (1.8V) |
| 8 | VCC (2.8V) |
| 9 | WR_SCL |
| 10 | CS |
| 11 | RD |
| 12 | RS_D/C |
| 13 | RESET |
| 14 | FMARK |
| 15 | SDA |
| 16 | SDO |
| 17-34 | DB0-DB17 |
| 35 | GND |
| 36 | ENABLE |
| 37 | DOTCLK |
| 38 | HS |
| 37 | VS |
| 40 | GND |
Applications:
For our 3.5 inch 320x480 LCD display TST035HVQI-54B, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, the brightness could be higher, such as 700 nits.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.5" contains 320x480 dots and can display up to 65K colors.
