TSD 320x480 3.5 inch ips lcd screen with good brightness

  • Model Name: TST035HVQI-54
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x480
  • Viewing angle: All o'clock
  • Brightness: 480 cd/m2
  • Driver IC: ILI9488
  • Interface: MCU 16 bits interface
  • Touch Screen: could be with capacitive or resitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

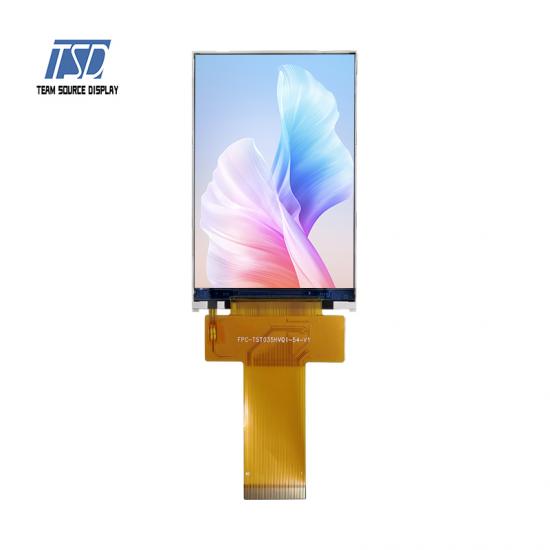

TST035HVQI-54 is 3.5 inch 320x480 resolution MCU 16 bits interface LCD display module, it is vertical display, and could be with standard capacitive or resistive touch panel. Backlight is 480 nits, White LEDs is 8, backlight current is 160mA and backlight voltage is 3.2V, which could be customized. For this 3.5 inch TFT LCD module, driver IC is ILI9488, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.

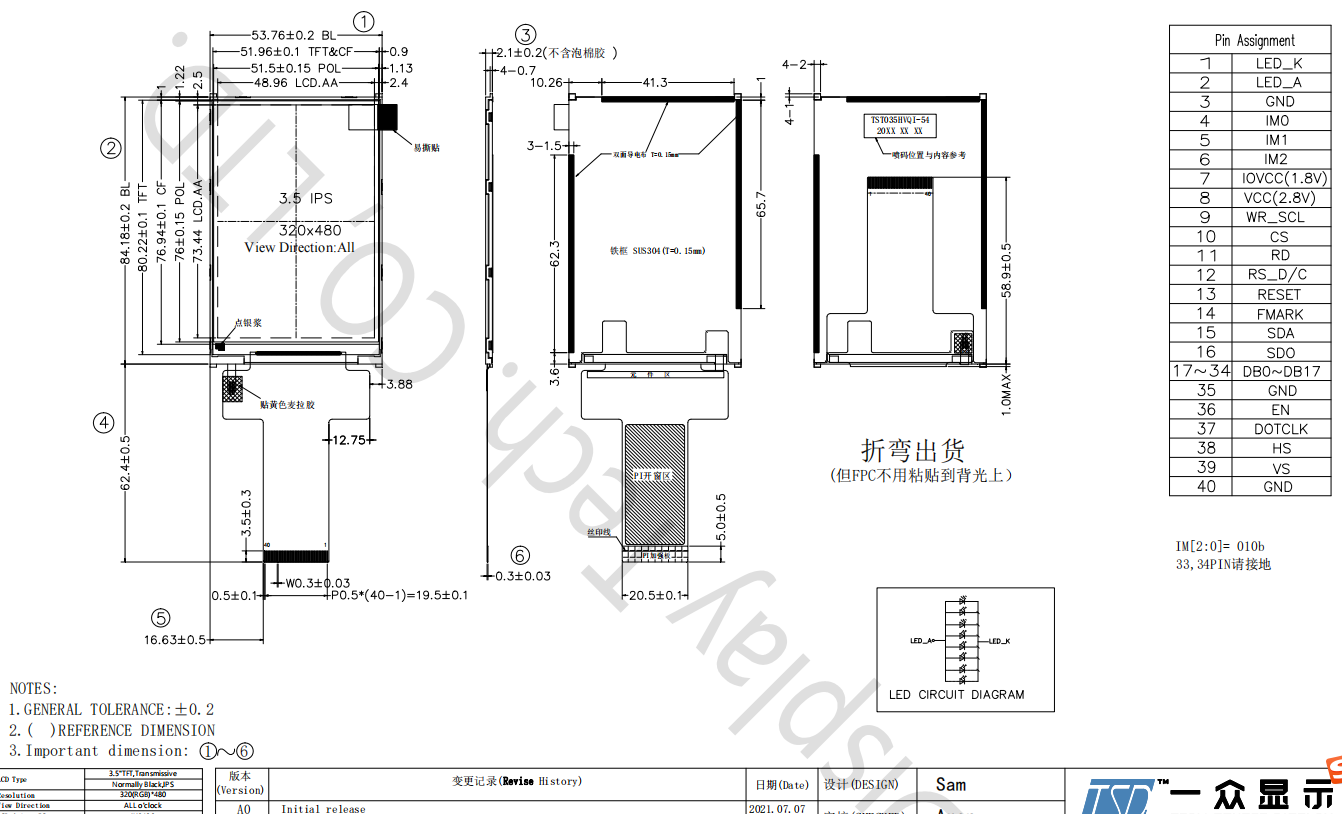

Drawing:




Specifications:



General Specification
Part No.  TST035HVQI-54
Outline Dimension(mm)  53.76x84.18x2.1
Active Area(mm) 48.96x73.44
Resolution(dots) 320x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320(H)xRGBx480(V)
Touch panel  with RTP or CTP
Driver IC ILI9488
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 16 bits
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDK LED Power supply -
2 LEDA LED Power supply +
3-4 GND System ground.
5 IOVCC Power supply, 1.65~3.2V
6 GND System ground.
7 IOVCC Power supply, 1.65~3.2V
8 VCC Power supply, 1.65~3.2V
9 WR bus interface operation.
10 CS Chip select input pin
11 RD bus interface operation.
12 RS selection register
13 RESET RESX pin
14 FMARK Tearing effect output
15 GND System ground.
16 NC No connect
17-32 DB0-DB15 16-bit interface: DB0-DB15 are used
33-36 GND System Ground.(0V)
37 IOVCC Power supply, 1.65~3.2V
38-40 GND System Ground.(0V)




Applications:



For our 3.5 inch 320x480 LCD display TST035HVQI-54, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, the brightness could be higher, such as 700 nits.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.5" contains 320x480 dots and can display up to 262K colors.
