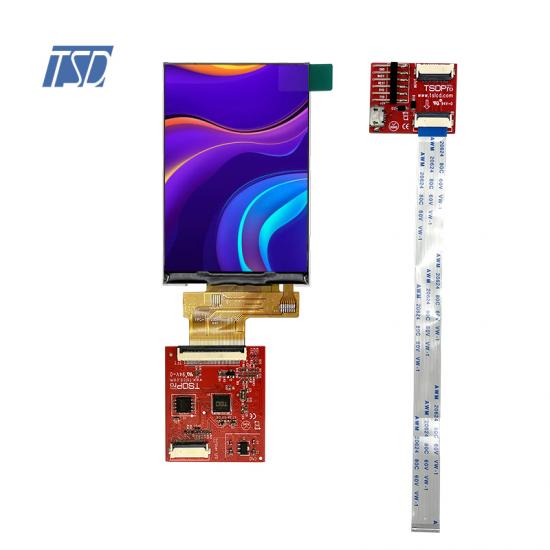

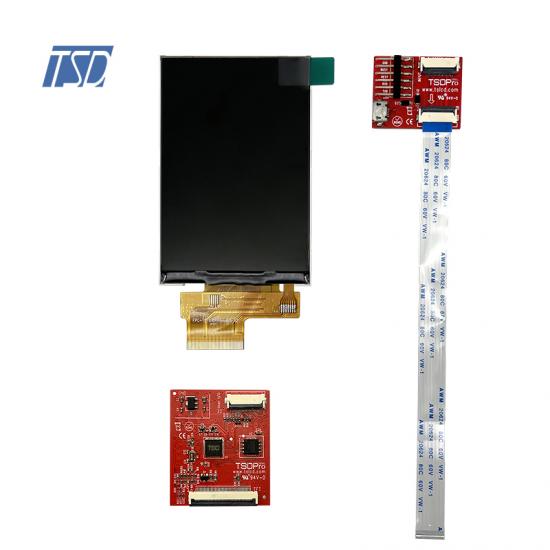

TSD 3.5 inch 320x480 resolution LCD display with UART port

  • Model Name: ProLCD-T035N01
  • LCD Type: 3.5 inch TFT LCD display
  • Resolution: 320x480
  • Viewing angle: 6 o'clock
  • Brightness: 280 cd/m2
  • Driver IC: ILI9488
  • Interface: UART
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



ProLCD-T035N01 is 3.5 inch 320x480 resolution LCD display with UART interface, outline size is 54.5x83mm, active area is 48.96x73.44mm, driver IC is ILI9488. This is color TFT display. LCD type is normally white, transmissive display. 65K color depth, backlight is 6pcs white LED,  this lcd module is without touch screen, TSD also have other models which is with Resistive touch panel and Capacitive touch panel, customized design are warmly welcome.



Serial Uart interface panel (UART) is added MCU and TFT controller on the TFT lcd display module, the MCU is responsible for receiving from the remote mainboard interface port (UART) command, basing on the defined commands to show images or animations, remote motherboard MCU don't need to write complex applications for showing images, which is much more easy to support customer at the begining of development. TFT LCD Panel and remote MCU mainly communicate through RS232 or RS485 interface. If the distance between the remote MCU and TFT Panel is very close ( for example around 30cm), the UART output and input of the remote MCU can be directly connected to the TFT lcd panel.

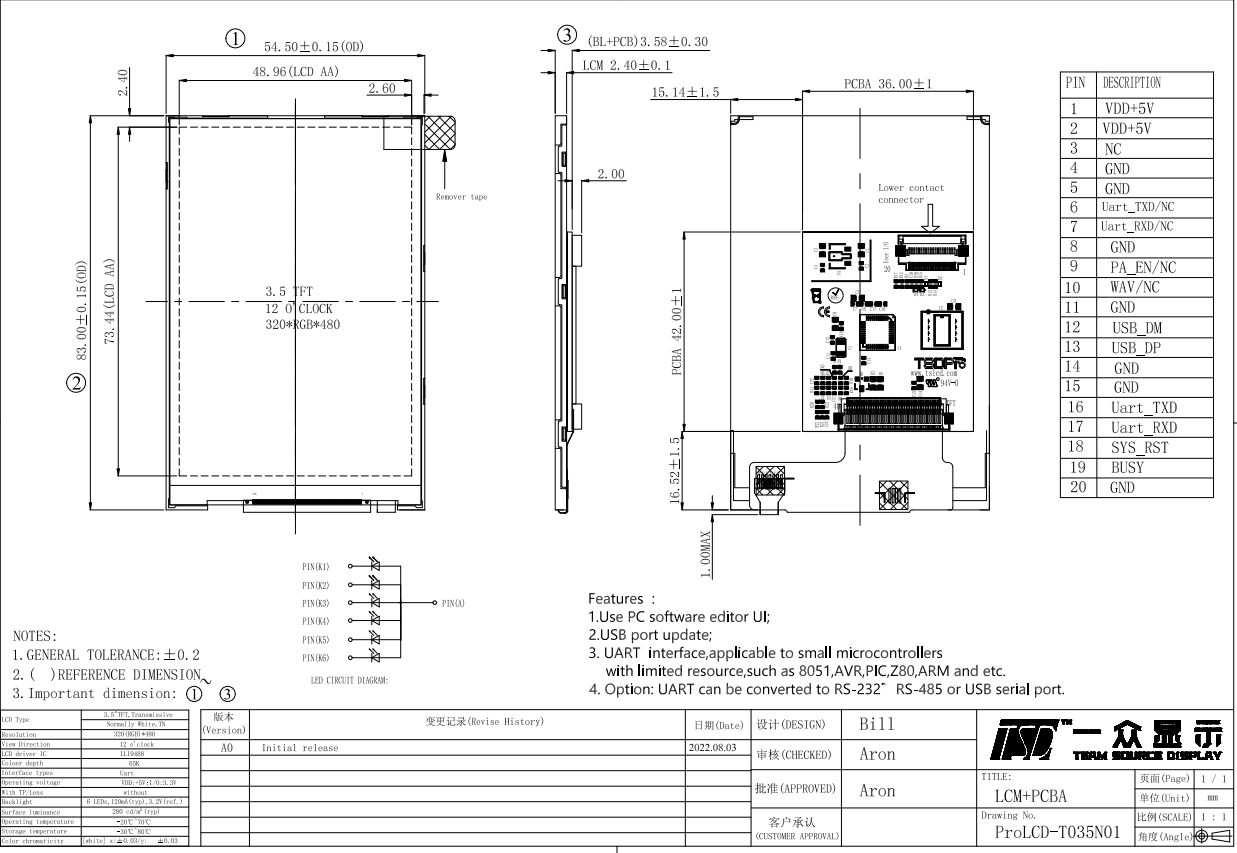

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T035N01
Outline Dimension(mm)

54.50(W)x83(H)x3.58(D)

Active Area(mm) 48.96(W) x 73.44(H)
Resolution(dots) 320x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320RGB(H)xRGBx480V)
Touch panel  without
Driver IC ILI9488
Pixel arrangement RGB-stripe
Display mode Normal white,TN, 3.5 inch TFT
Surface treatment Antiglare
View direction  6 o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 UART_TXD/NC Serial Communication Sends Data Output Pin. Do not Connect if you don't use it.
7 UART_RXD/NC Serial Communication Receives Data Input Pin. Do not connect if you don't use it.
8 GND Power ground
9 PA_EN/NC Power Amplification Enable Pin. Do not connect if you don't use it.
10 WAV/NC Audio Output Pin. Don not connect if you don't use it.
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Advantages:



1. More than 20 years experience,strong background in TFT P-cap and HMI design.

2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.

3. Local sales and engineer team support in European for good communication.

4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

5.  We have our own workshop with more than 12000 sq/m2, automotive and semi-auto production lines can make design and production of different designs basing on customer's needs.
