Description:

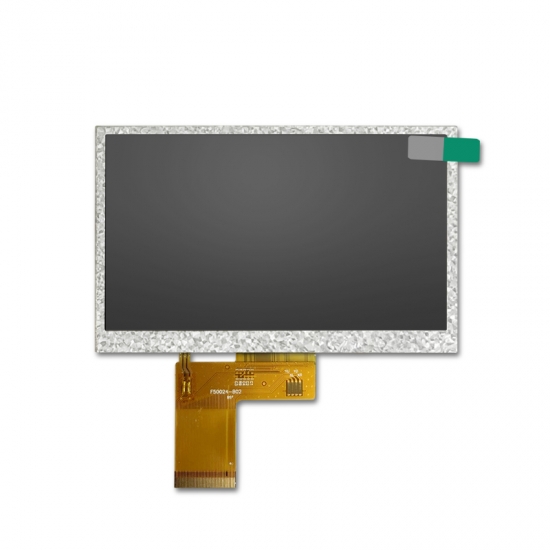

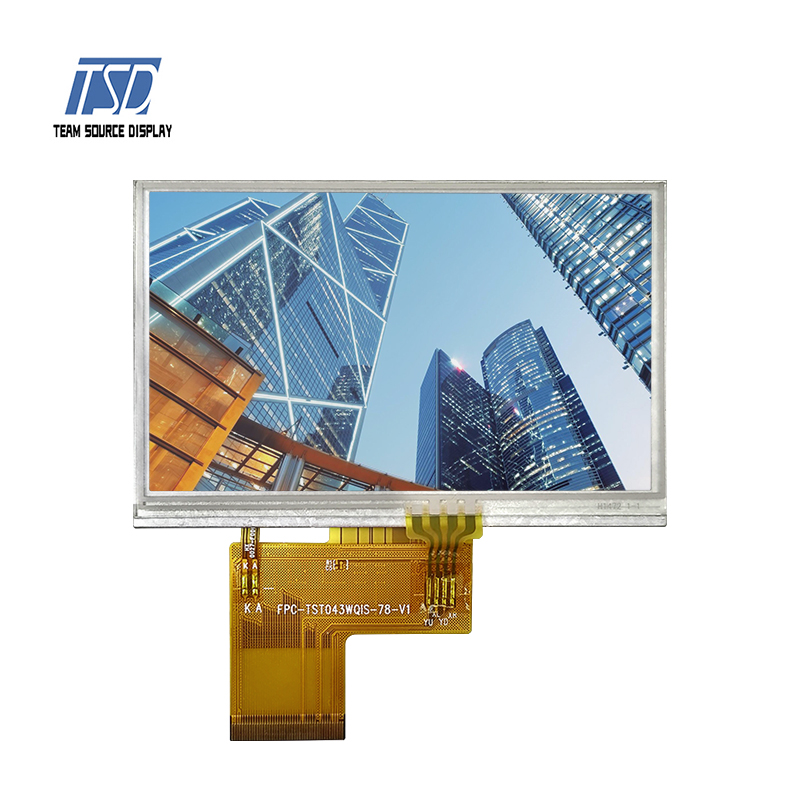

TST043WQXH-39 is 4.3 inch 480x272 resolution RGB 24 bit LCD display module. Backlight is 380 nits, White LEDs is 10, backlight current is 40mA and backlight voltage is 15.5V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is HX8257-A01, viewing direction is 12 o'clock, color depth is 16.7M, white backlight and transmissive mode.
Drawing:
Specifications:
| General Specification | ||
| Part No. | TST043WQXH-39 | |
| Outline Dimension(mm) | 105.5x67.2x2.95 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | without CTP | |
| Driver IC | HX8257-A01 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white, TN, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | RGB 24 bits |
|
| Module lifetime(Hours) | 20,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LED- | Cathode of LED backlight |
| 2 | LED+ | Anode of LED backlight |
| 3 | GND | Power ground |
| 4 | VDD | Power voltage |
| 5-12 | R0-R7 | Red data |
| 13-20 | G0-G7 | Green data |
| 21-28 | B0-B7 | Blue data |
| 29 | GND | System Ground.(0V) |
| 30 | DCLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal |
| 33 | VSYNC | Vertical sync signal |
| 34 | DE | Data enable |
| 35 | NC | No connect |
| 36 | GND | Power ground |
| 37 | XR | The touch pin X right pin |
| 38 | YD | The touch pin Y down pin |
| 39 | XL | The touch pin X left pin |
| 40 | YU | The touch pin Y up pin |
Applications:
For our 4.3 inch 480x272 LCD display TST043WQXH-39, normally used in smart home product, such as smart thermostat, coffee machine, washing machine.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
