Description:

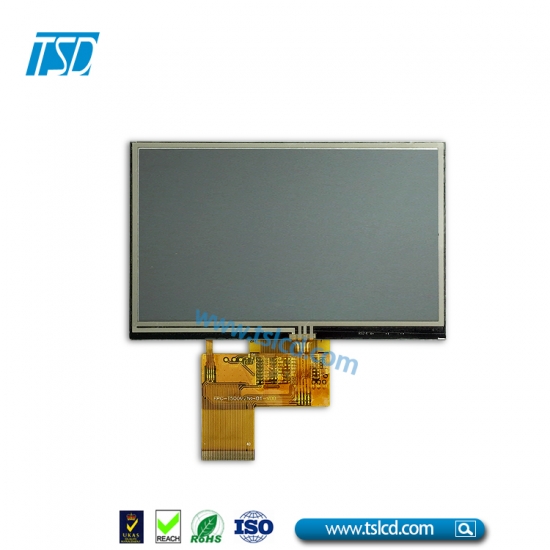

TST050WVBS-51P is 5 inch 800x480 resolution LCD display with RGB interface, standard brightness is 500cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.
| Specification | ||
| Part No. | TST050WVBS-51P | |
| Outline Dimension(mm) | 120.70x75.80x2.9 | |
| Active Area(mm) | 108.00x64.80 | |
| Resolution(dots) | 800*RGB*480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | with RTP | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black,IPS, 5.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | RGB | |
| Module lifetime(Hours) | 50,000-100,000 | |
Drawing:
Interface Description:
| Pin No. | Symbol | Description |
| 1 | LEDK | Backlight K Cathode input pin. |
| 2 | LEDA | Backlight A Anode input pin. |
| 3 | GND | System Ground.(0V) |
| 4 | VCC | Power supply +3.3V |
| 5-12 | RO~R7 | Red Data BUS |
| 13-20 | G0~G7 |
Green Data BUS |
| 21-28 | B0~B7 | Blue Data BUS |
| 29 | GND | System Ground.(0V) |
| 30 | CLK | clock for input data. Data latched at rising/falling edge of this signal. Default isfalling edge. |
| 31 | DISP |
Standby mode control. (Normally pull high) DISP="L", enter standby mode for power saving. Timing controller and source driver will turn off, all outputs are Hi-Z. DISP="H", normal operation. |
| 32 | HSYNC | Horizontal sync input in digital parallel RGB. Negative polarity |
| 33 | VSYNC | Vertical sync input in digital parallel RGB. Negative polarity. |
| 34 | DEN | nput data enable control. When DE mode, active High to enable data input (Normally pull low) |
| 35 | NC | Not connection |
| 36 | GND | System Ground. (0V) |
| 37 | XR/X+ | The touch panel X Right pin |
| 38 | YD/Y- | The touch panel Y Down pin |
| 39 | XL/X- | The touch panel X Left pin |
| 40 | YUY+ | The touch panel Y Up pin |
Applications:
For our 5 inch LCD display TST050WVBS-51P, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.5‘’ 800*480 res. with 40 pins RGB interface with resistive touch
2. IPS lcd full viewing angle
3.high brightness up to 500nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
