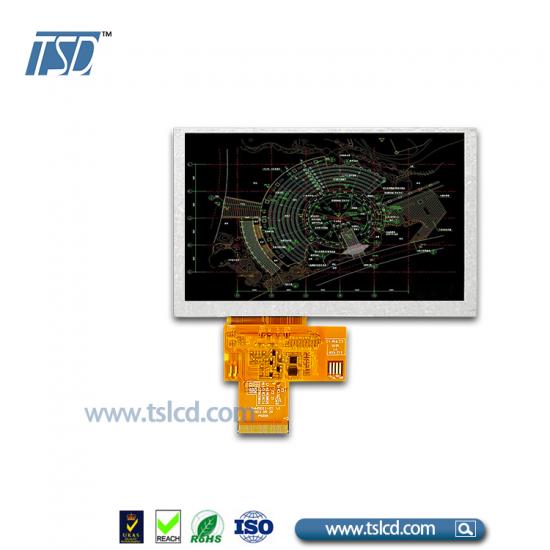

TSD 800×480 resolution 5 inch IPS TFT LCD display module with SPI interface



  • Model Name: TST050WVHS-89
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: IPS all viewing angle
  • Brightness: 400 cd/m2
  • Driver IC: LT7680A-R
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050WVHS-89 is 5  inch 800x480 resolution LCD display with SPI interface, standard brightness is 400cd/m2. For this 5 inch TFT LCD module, driver IC is LT7680A-R, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.



Specification
Part No. TST050WVHS-89
Outline Dimension(mm) 120.70x75.80x2.9
Active Area(mm) 108.00x64.80
Resolution(dots) 800*RGB*480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface SPI
Module lifetime(Hours) 50,000-100,000

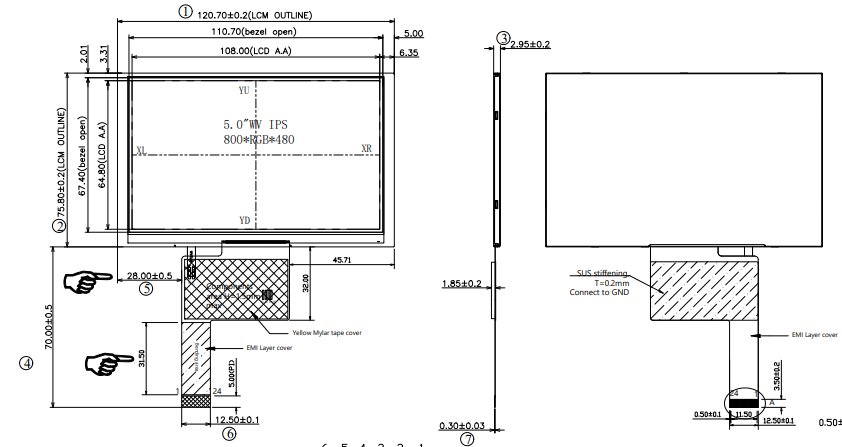

Drawing:





Interface Description:



Pin No.  Symbol Description
1 LEDA Backlight A Anode input pin.
2 LEDK Backlight K Cathode input pin.
3 GND System Ground. (0V)
4 GND System Ground. (0V)
5 VDD Power supply +3.3V
6 VDD

Power supply +3.3V

7 GND System Ground. (0V)
8 DISP

Standby mode control. (Normally pull high)

DISP="L", enter standby mode for power saving. Timing controller and source driver will turn off, all outputs are Hi-Z.

DISP=“H", normal operation.

9 L RST Reset Signal Input. This is a active low Reset pin for LT7680.
10 L SPI CS Chip select pin for 4-wire serial I/F of the LT7680
11 L SPI_MISO Data output pin of 4-wire SPI I/F of the LT7680. Connect to MCU"s
12 L SPI MOSI Data input pin of 4-wire SPI I/F of the LT7680. Connect to MCU"s
13 L SPI SCK SPI Clock input.Clock of 4-wire SPI I/F of the LT7680 .
14 GND System Ground. (0V)
15 F CS SPI Chip select pin for serial Flash device.(option)
16 F DO Data output of serial Flash device.(option)
17 F CLK Serial clock input for serial Flash device.(option)
18 F DI Data input of serial Flash device.(option)
19 GND System Ground. (0V)
20 YU The RTP PIN(option). NO connect
21 XL The RTP PIN(option). NO connect
22 YD The RTP PIN(option). NO connect
23 XR The RTP PIN(option). NO connect




Applications:



For our 5 inch LCD display TST050WVHS-89, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.5‘’ 800*480 res. with 23Pins SPI interface

2. IPS lcd full viewing angle

3.high brightness up to 400nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
