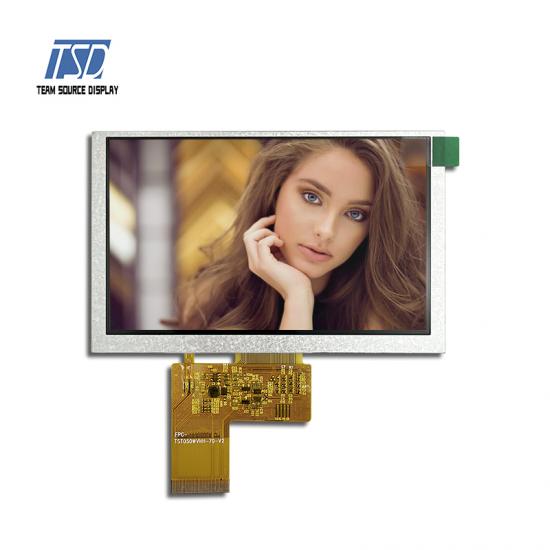

TSD New 5 inch IPS TFT LCD 800×480 resolution with converted IC change to MIPI interface



  • Model Name: TST050WVBS-98B
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: IPS all viewing angle
  • Brightness: 1000 cd/m2
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050WVBS-98B is 5  inch 800x480 resolution LCD display with MIPI interface, standard brightness is 1000cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, Converted ic is ICN6211. viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.





Specification
Part No. TST050WVBS-98B
Outline Dimension(mm) 120.70x75.80x2.9
Active Area(mm) 108.00x64.80
Resolution(dots) 800*RGB*480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000

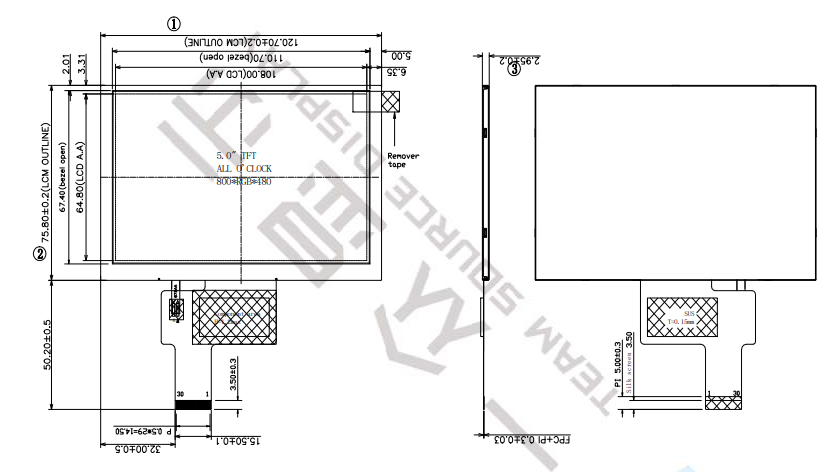

Drawing:



Interface Description:



Pin No.  Symbol Description
1 VCI(3.3V) Power supply +3.3V
2 NC Not connection
3 NC Not connection
4 RESET/INC RESET input pin/Not connection
5 STBYB/NC

STBYB-1 Normal optation

STBYB-0, Standby mode./Not connection

6 GND

System Ground. (0v)

7 D3P MIPI data aothod input pin
8 D3N MlPl data cathode input pin
9 GND System Ground. (0v)
10 D2P

MlPI data aothod input pin

11 D2N MlPl data cathode input pin
12 GND System Ground. (0v)
13 CLKP MlPI clock aothod input pin
14 CLKN MIPl clock cathode input pin
15 GND System Ground. (0V)
16 D1P MPI data aothod input pin
17 D1N MlPI data cathode input pin
18 GND System Ground. (0V)
19 D0P MlPI data aothod input pin
20 D0N MlPI data cathode input pin
21-22 GND System Ground. (0V)
23 NC Not connection
24 I2C_SDA I2C data inputlouput pin
25 I2C_SCL I2C cock input pin
26 NC Not connection
27-28 LED A Backlight AAnode input pin.
29-30 LED K Backlight K Cathode input pin.

Applications:



For our 5 inch LCD display TST050WVBS-98B, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.5‘’ 800*480 res. with 30PIN LVDS interface

2. IPS lcd full viewing angle

3.high brightness up to 1000nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
