TSD New 5 inch IPS TFT LCD 800×480 resolution with 50pin RGB interface



  • Model Name: TST050WVBS-105
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: IPS all viewing angle
  • Brightness: 500 cd/m2
  • Interface: RGB
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST050WVBS-105 is 5  inch 800x480 resolution LCD display with RGB interface, standard brightness is 500cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade and automotive application. the working temp. is from-30 to +80





Specification
Part No. TST050WVBS-105
Outline Dimension(mm) 120.70x75.80x2.9
Active Area(mm) 108.00x64.80
Resolution(dots) 800*RGB*480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface RGB
Module lifetime(Hours) 50,000-100,000

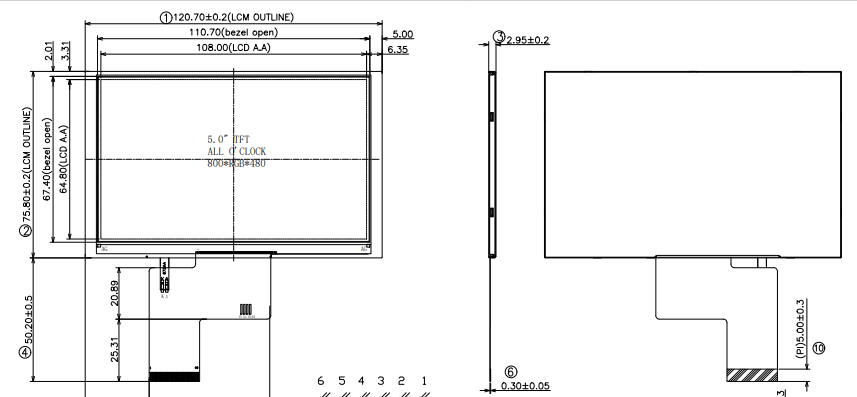

Drawing:





Interface Description:



Pin No.  Symbol Description
1 VLED+ Power for LED backlight (Anode)
2 VLED+ Power for LED backlight (Anode)
3 VLED- Power for LED backlight (Cathode)
4 VLED- Power for LED backlight (Cathode)
5 GND Power ground
6 VCOM

Common voltage

7 VDD Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VSYNC Vetical Sync Input
11 HSYNC Horizontal Sync Input
12-19 B7-B0 Blue data(MSB)
20-27 G7-G0 Green data(MSB)
28-35 R7-R0 Red data(MsB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 SHLR Left / right selection
40 UDDN Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connection
46 VcoM Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49-50 NC No connection

Applications:



For our 5 inch LCD display TST050WVBS-105, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.5‘’ 800*480 res. with 50 pins RGB interface

2. IPS lcd full viewing angle

3.wide working temp.

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
