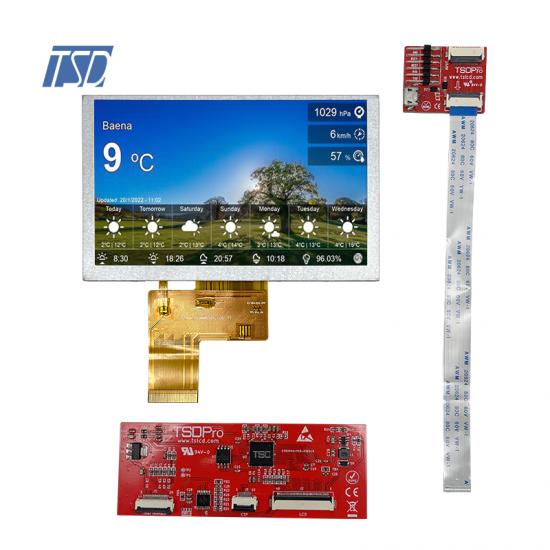

TSD 800x480 resolution 5 inch tft lcd touch display with UART serial port

  • Model Name: ProLCD-T050R01
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: ST7262-G4-E
  • Interface: UART
  • Touch Screen: with Resistive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



ProLCD-T050R01 is 5 inch clolor serial TFT LCD screen with Resistive touch screen,coming out with UART serial port. Resolution is 800x(RGB)x480, Outline Dimension is 120.7x75.8mm, Active Area for LCD display is 108x64.8mm. Bezel opening is 110.7x67.4mm.



It;s using the high-performace UART TFT serial port internally.  The screen integrates video decoding, audio decoder, TFT LCD controller and serial screen communication protocol. The main function is to provide UART serial communication, so that the host MCU can easily present the information to be displayed to the TFT screen.

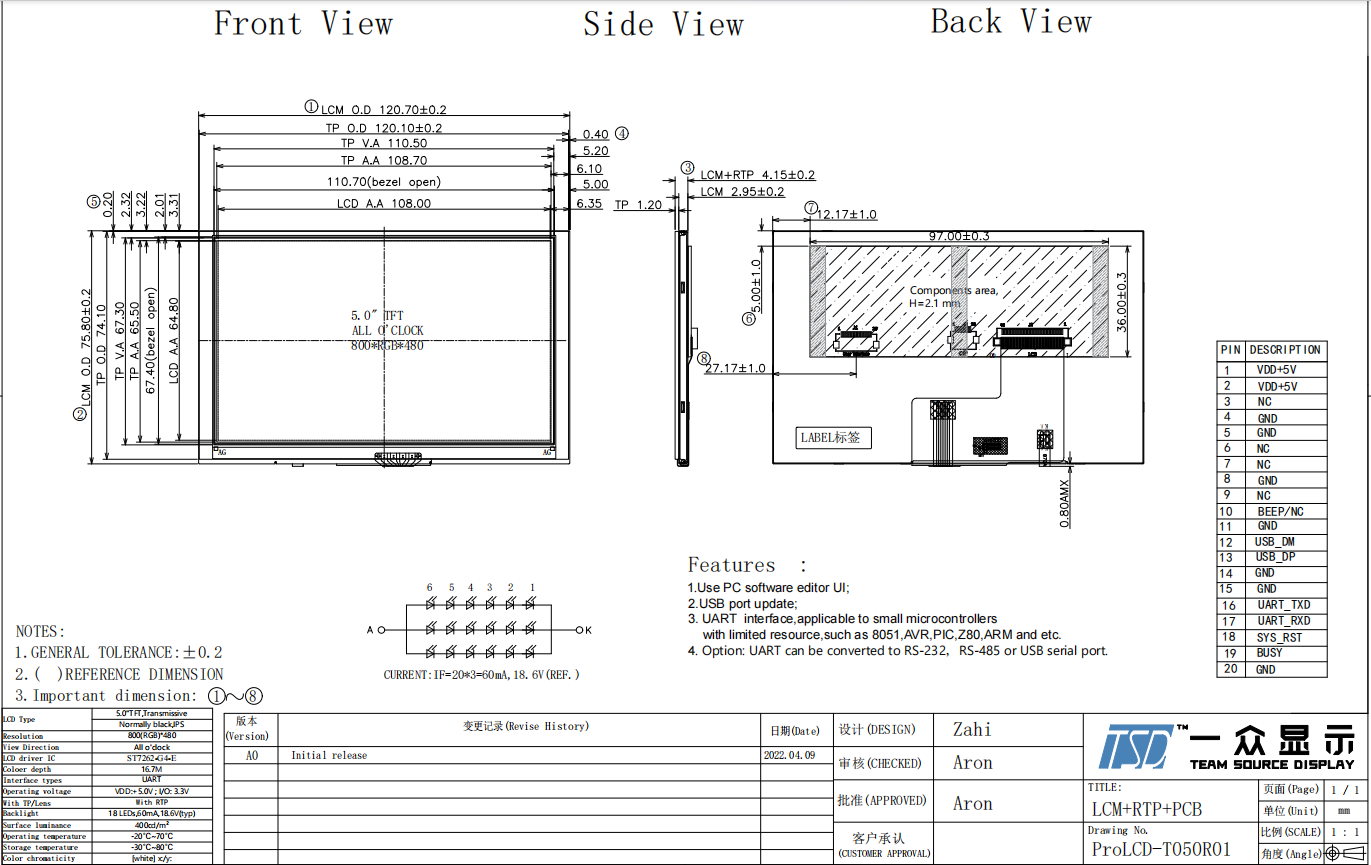

Drawing:




Specifications:



General Specification
Part No.  ProLCD-T050R01
Outline Dimension(mm)

120.7x75.8x4.15mm

Active Area(mm) 108(W) x 64.8(H)
Resolution(dots)  800x(RGB)x480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 800(H)xRGBx480(V)
Touch panel  RTP
Driver IC ST7262
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface UART
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 VDD Power voltage 5V
2 VDD Power voltage 5V
3 NC No connect
4 GND Power ground
5 GND Power ground
6 NC No connect
7 NC No connect
8 GND Power ground
9 NC No connect
10 BEEP/NC Buzzer output / No connect
11 GND Power Ground
12 USB_DM This is the signal of USB data terminal DM. It can be updated via USB interface MCU program and external SPI Flash data.
13 USB_DP This is the signal of USB data terminal DP. It can be updated via USB interface MCU program and external SPI Flash data.
14 GND Power Ground
15 GND Power Ground
16 UART_TXD This is the data output port of the Uart serial communication interface, which is used to transmit command signals to the master RX of control terminal MCU
17 UART_RXD This is the data input port of the Uart serial communication interface, which is used to receive the TX sends command signal
18 SYS_RST Global reset pin
19 BUSY This pin is the busy status output of the serial port screen, and the master control terminal can know whether the serial port screen is No is busy
20 GND Power Ground




Applications:



The serial port screen mainly uses serial port communication to solve the problem of communication between the user operation interface program and the customer control panel to achieve the purpose of controlling the machine. The main function is to liberate users from the complex process of complex interface software development + complex hardware solutions + hardware production cost control, and use the serial port screen solution provided by Team Source Display is to achieve extremely fast, simple, efficient and high-efficiency Cost-effective solutions achieve the purpose of rapid product development, contact TSD freely to seize more market opportunities together.
