Description:
TST050WVHS-106 is 5 inch 800x480 resolution LCD display with SPI interface, standard brightness is 1000cd/m2. For this 5 inch TFT LCD module, driver IC is LT7680A-R, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.
| Specification | ||
| Part No. | TST050WVHS-106 | |
| Outline Dimension(mm) | 120.70x75.80x2.9 | |
| Active Area(mm) | 108.00x64.80 | |
| Resolution(dots) | 800*RGB*480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | without | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal black,IPS, 5.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | SPI | |
| Module lifetime(Hours) | 50,000-100,000 | |

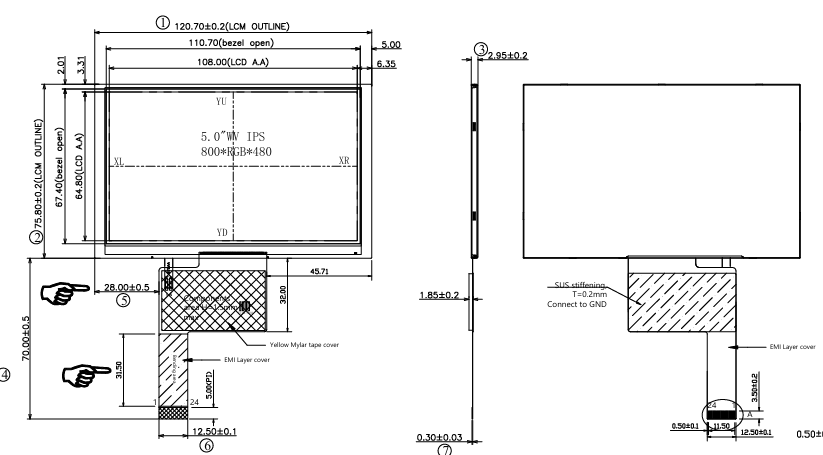

Drawing:
Interface Description:
| Pin No. | Symbol |
| 1 | LEDA |
| 2 | LEDK |
| 3 | GND |
| 4 | GND |
| 5 | VDD |
| 6 | VDD |
| 7 | GND |
| 8 | DISP |
| 9 | L_RST |
| 10 | L-SPI_CS |
| 11 | L-SPI-MISO |
| 12 | L_SPI MOS! |
| 13 | LSPI_SCK |
| 14 | GND |
| 15 | F_CS |
| 16 | F DO |
| 17 | F CLK |
| 18 | F _DI |
| 19 | GND |
| 20 | NC/YU |
| 21 | NC/XL |
| 22 | NC/YD |
| 23 | NC/XR |
| 24 | GND |
Applications:
For our 5 inch LCD display TST050WVHS-106, it's widely using in industrial product, Industrial equipment and instruments can be used.
Product Features:
1.5‘’ 800*480 res. with 24PIN SPI interface
2. IPS lcd full viewing angle
3.high brightness up to 1000nits
4.high contrast 800:1
5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
