TSD 5 inch 800*480res. 1000nits high brightness MCU interface support ESP32



  • Model Name: TSM050WVBS-51B
  • LCD Type: 5 inch TFT LCD display
  • Resolution: 800x480
  • Viewing angle: IPS all viewing angle
  • Brightness: 1000 cd/m2
  • Interface: MCU
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

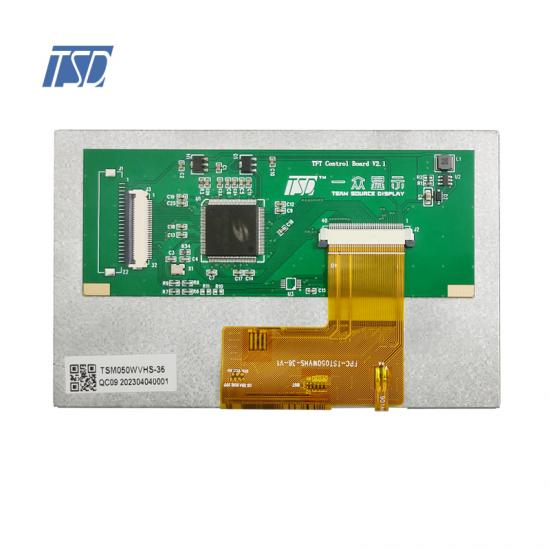

TSM050WBS-51B is 5  inch 800x480 resolution LCD display with SSD1963 IC turn RGB interface into MCU interface, standard brightness is 1000cd/m2. For this 5 inch TFT LCD module, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade application.





Specification
Part No. TSM050WVBS-51B
Outline Dimension(mm) 120.70x75.80x2.9
Active Area(mm) 108.00x64.80
Resolution(dots) 800*RGB*480
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx480(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MCU
Module lifetime(Hours) 50,000-100,000

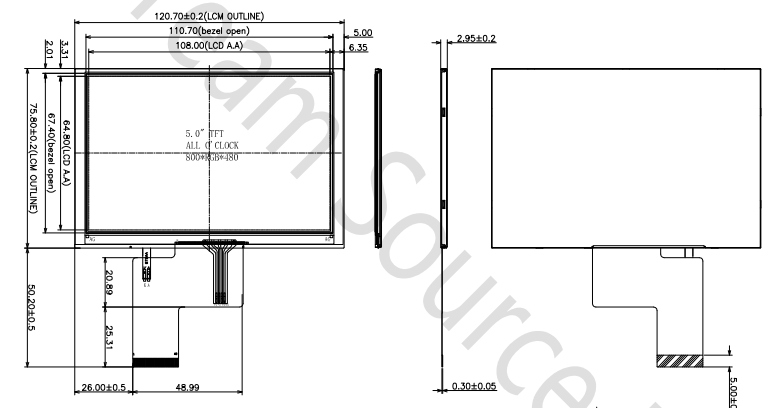

Drawing:



Interface Description:



Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin.
2 LEDA Backlight A Anode input pin.
3 GND System Ground.(0V)
4 VCC Power supply +3.3V
5-12 RO~R7 Red Data BUS
13-20 G0~G7

Green Data BUS

21-28 B0~B7 Blue Data BUS
29 GND System Ground.(0V)
30 CLK clock for input data. Data latched at rising/falling edge of this signal. Default isfalling edge.
31 DISP

Standby mode control. (Normally pull high)

DISP="L", enter standby mode for power saving. Timing controller and source driver will turn off, all outputs are Hi-Z.

DISP="H", normal operation.

32 HSYNC Horizontal sync input in digital parallel RGB. Negative polarity
33 VSYNC Vertical sync input in digital parallel RGB. Negative polarity.
34 DEN nput data enable control. When DE mode, active High to enable data input  (Normally pull low)
35 NC Not connection
36 GND System Ground. (0V)
37 XR/X+ Not connection
38 YD/Y- Not connection
39 XL/X- Not connection
40 YUY+ Not connection




Interface Description:

Pin No.  Symbol Description
1 GND System Ground. (0V)
2 VCC Power supply +5.0V
3 BL_EN

Backlight enable

High, Backlight ON; Low, Backlight off

4 RS Data/Command select
5 WR write strobe signal
6 RD

Read strobe signal

7-22 B0~B7 MCU16-bit Data bus. Pins not used should be floating.
23-24 NC No connect
25 Cs Chip select
26 RESET Master synchronize reset
27-31 NC No connect
32 NC No connect




Applications:



For our 5 inch LCD display TSM050WVBS-51B, it's widely using in industrial product, Industrial equipment and instruments can be used.

Product Features:

1.5‘’ 800*480 res. with SSD1963 MCU interface

2. IPS lcd full viewing angle

3.high brightness up to 1000nits

4.high contrast 800:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
